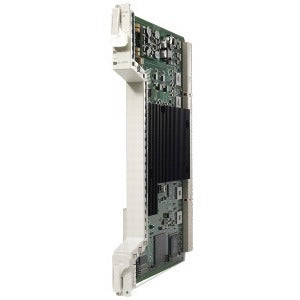

Cisco Cross-Connect Module, High Cap. Tributary
The card provides 60 Gbps of nonblocking, high-order switch capacity, 1152 x 1152 STS-1s or 384 x 384 VC-4s unidirectional ports and 5 Gbps of low-order switch capacity, 2688 x 2688 VT1.5/VC-11, or 2016 x 2016 VT-2/VC-12 unidirectional ports. The XC-VXC card is installed in slots 8 and 10 as identified by the green cross (+) icon at the bottom of the faceplate and below the shelf slot. The platform's eight multiservice card slots (1 to 4 and 14 to 17) receive 2.5 Gbps of capacity and the high-speed card slots (5, 6, 12, 13) receive 10 Gbps of capacity. The timing, communications, and control (TCC) card works with the XC-VXC card to provision, set up circuits, and maintain connections within the system. The XC-VXC card provides in-service upgrade capabilities, given shelf assembly support, from other cross-connect cards, including the XC, XC-VT, XC-10G, XC-VXL-2.5G, and XC-VXL-10G.
Product Type: Interface Module
Brand Name: Cisco
Compatibility: Cisco ONS 15400 Series Platforms
Manufacturer: Cisco Systems, Inc
Product Name: Cross-Connect Module, High Cap. Tributary
Manufacturer Part Number: 15454-XC-VXC-10G
Manufacturer Website Address: http://www.cisco.com
Limited Warranty: 5 Year
Weight (Approximate): 1.92 lb
