This Cisco Catalyst 4507R+E chassis is designed for enterprise data centers and campus networks requiring maximum scalability, redundancy, and high-performance modular switching. Our WS-C4507R+E-RF delivers:
-
7-slot modular design for flexible expansion and custom network configurations
-
Supervisor engine redundancy ensuring 99.99% uptime for mission-critical operations
-
Hot-swappable components allowing maintenance without network downtime
-
High-density port capacity supporting up to 336 ports in a single chassis
Key Features
-
7-slot modular chassis accommodating various line cards and supervisor modules
-
Dual supervisor engine support with stateful switchover capabilities
-
Redundant power supply system with hot swappable switches components
-
Advanced Layer 2/3 switching with comprehensive routing protocol support
-
High-speed backplane delivering 136 Gbps fabric bandwidth
-
Cisco IOS software with enterprise security and management features
-
Flexible module options supporting 10/100, Gigabit, and 10G fiber ethernet switches connectivity
Technical Specifications
| Manufacturer |
Cisco Systems, Inc |
| Model Number |
WS-C4507R+E-RF |
| Type |
Modular Enterprise Chassis |
| Slot Configuration |
7 slots (1 supervisor + 6 line card slots) |
| Maximum Port Density |
Up to 336 ports depending on module configuration |
| Backplane Capacity |
136 Gbps fabric bandwidth |
| Forwarding Rate |
101.2 Mpps wire-speed performance |
| Form Factor |
7RU server rack network switch chassis |
| Power Supply |
Dual redundant AC power supplies (1400W each) |
| Compatible Systems |
Enterprise campus, data center aggregation, service provider edge |
Frequently Asked Questions
Q: What supervisor engines are compatible with the 4507R+E chassis?
A: The Cisco Catalyst 4507R+E chassis supports Supervisor Engine 6-E, 7-E, and 8-E modules, providing scalable performance from 48 Gbps to 848 Gbps depending on the supervisor chosen.
Q: Can I achieve zero-downtime upgrades with this chassis?
A: Yes, with dual supervisor engines and hot swappable switches components, you can perform maintenance, software upgrades, and module replacements without affecting network operations.
Q: What types of line cards can I install?
A: The chassis supports various line cards including 48 port PoE switch modules, 10G uplink cards, and fiber ethernet switches modules for maximum deployment flexibility.
Q: Is this suitable for data center environments?
A: Absolutely. The modular design, redundant components, and high port density make it ideal for data center aggregation layers and enterprise campus core switching.
Q: What redundancy options are available?
A: The chassis provides dual supervisor engines with stateful switchover, redundant power supplies, and fan redundancy, ensuring maximum availability for critical network infrastructure.

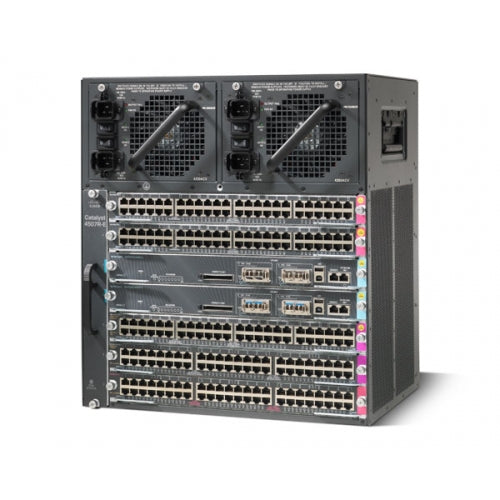

Cisco Catalyst WS-C4507R+E 7-slot modular chassis with supervisor redundancy, hot-swap capabilities for enterprise networks.
