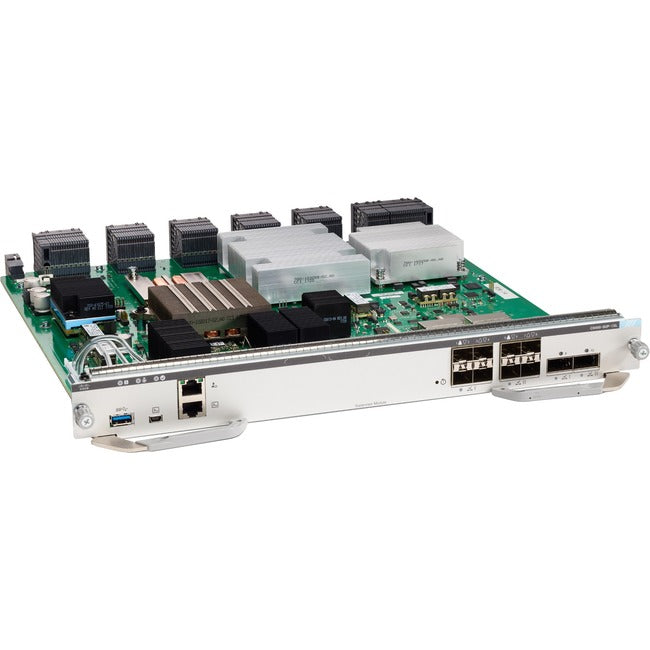

Cisco Catalyst 9400 Series Supervisor 1XL with 25G Module C9400-SUP-1XL-Y

Cisco Catalyst 9400 Series Supervisor 1XL with 25G Module

The Cisco Catalyst^® 9400 Series is Cisco's leading modular enterprise switching access and aggregation platform, and is built for security, the Internet of Things (IoT), and multicloud environments. These switches form the foundational building blocks for Cisco^® SD-Access, our leading enterprise architecture. The platform provides strong investment protection, with a chassis architecture that is capable of supporting up to nine Tbps of system bandwidth and industry-leading power delivery for high-density IEEE 802.3bt (60 W and 90W PoE). Redundancy is now available across the portfolio. Cisco Catalyst 9400 Series switches deliver state-of-the-art high availability with capabilities such as Nonstop Forwarding and Stateful Switchover (NSF/SSO), In-Service Software Upgrade (ISSU), uplink resiliency, and N+1/N+N redundancy for power supplies and Cisco StackWise^® virtual (SVL) with ISSU. The platform is enterprise-optimized with an innovative, dual-serviceable fan-tray design and side-to-side airflow and is closet-friendly with approximately 16 inches in depth. A single system can scale up to 384 access ports with your choice of 1 Gigabit Ethernet copper, 1 Gigabit Ethernet fiber, Cisco UPOE+^©, Cisco Universal Power over Ethernet (Cisco UPOE^®), and Power over Ethernet Plus (PoE+) options and up to 192 ports of 10G fiber and multigigabit options. The platform also supports advanced routing and infrastructure services, SD-Access capabilities, and network system virtualization. These features enable placement of the platform in the core and aggregation layers of small- to medium-sized campus environments.

A foundation for Software-Defined Architecture

Advanced persistent security threats, the exponential growth of the Internet of Things (IoT) devices, mobility everywhere and cloud adoption require a network fabric that integrates advanced hardware and software innovations to automate, secure, and simplify customer networks. The goal of this network fabric is to enable customer revenue growth by accelerating business service rollout.

The Cisco^® Digital Network Architecture (Cisco DNA) with Software-Defined Access (SD-Access) is the most advanced network fabric to power customer business. Cisco DNA is an open and extensible, software-driven architecture that accelerates and simplifies your enterprise network operations. The programmable architecture frees your IT staff from time consuming, repetitive network configuration tasks so they can focus instead on innovation that positively transforms your business. SD-Access enables policy-based automation from edge to cloud with foundational capabilities that include:

• Simplified device deployment
• Unified management of wired and wireless networks
• Network virtualization and segmentation
• Group-based policies
• Context-based analytics

Cisco Catalyst 9400 Series switches support enterprise fabric to provide these benefits, while extending controller-based networking with uniform enterprise-wide policy and mobility.

Cisco DNA Software

Cisco DNA Software offers a valuable and flexible way to buy software for the access, WAN, and data center domains. At each stage in the product lifecycle, Cisco DNA Software helps make buying, managing, and upgrading your network and infrastructure software easier. Cisco DNA Software provides:

• Flexible licensing models to smoothly distribute customers' software spending over time
• Investment protection for software purchases through software services-enabled license portability

• The Cisco Unified Access Data Plane (UADP) 2.0 ASIC is ready for next-generation technologies with its programmable pipeline, microengine capabilities, and template-based configurable allocation of Layer 2, Layer 3, forwarding, Access Control List (ACL), and Quality of Service (QoS) entries


• Intel 2.4-GHz x86 with up to 960 GB of SATA SSD local storage for container-based application hosting


• Up to 1.44 Tbps wired switching capacity (IPv4) with 900 Mpps of throughput


• Up to two nonblocking 25 Gigabit Ethernet uplinks on Supervisor-1XL-Y


• Up to two nonblocking 40 Gigabit Ethernet uplinks (Quad Small Form-Factor Pluggable [QSFP]) and up to eight nonblocking 10 Gigabit Ethernet uplinks (SFP+)


• SFP support on uplinks to offer flexibility for up to eight Gigabit Ethernet ports


• 384 ports of nonblocking 10/100/1000 RJ-45 ports


• 392 ports of nonblocking 1 Gigabit Ethernet Fiber (SFP) ports


• 200 ports of 10 Gigabit Ethernet SFP+ ports (eight uplinks plus 192 line card ports)


• Cisco UPOE+© (90 W) capabilities on 263 ports simultaneously

Product Type: Supervisor Engine
Environmentally Friendly: Yes
Environmental Certification: RoHS
Brand Name: Cisco
Compatibility:

Cisco Catalyst 9400 Switches
