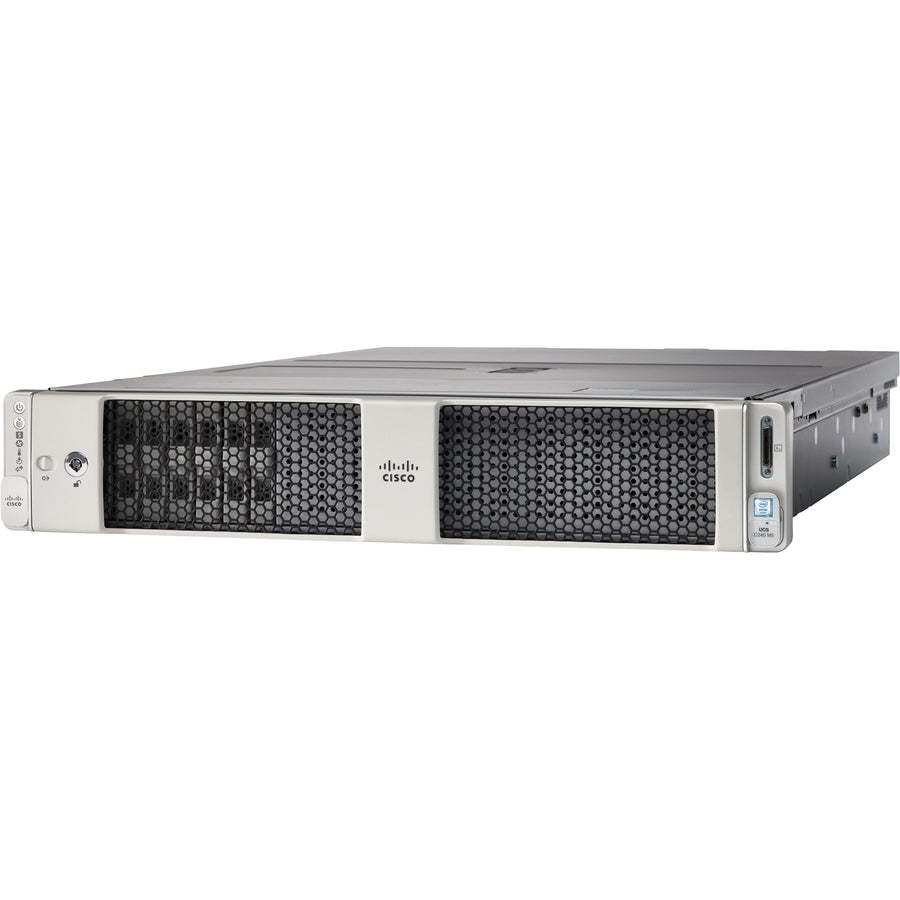

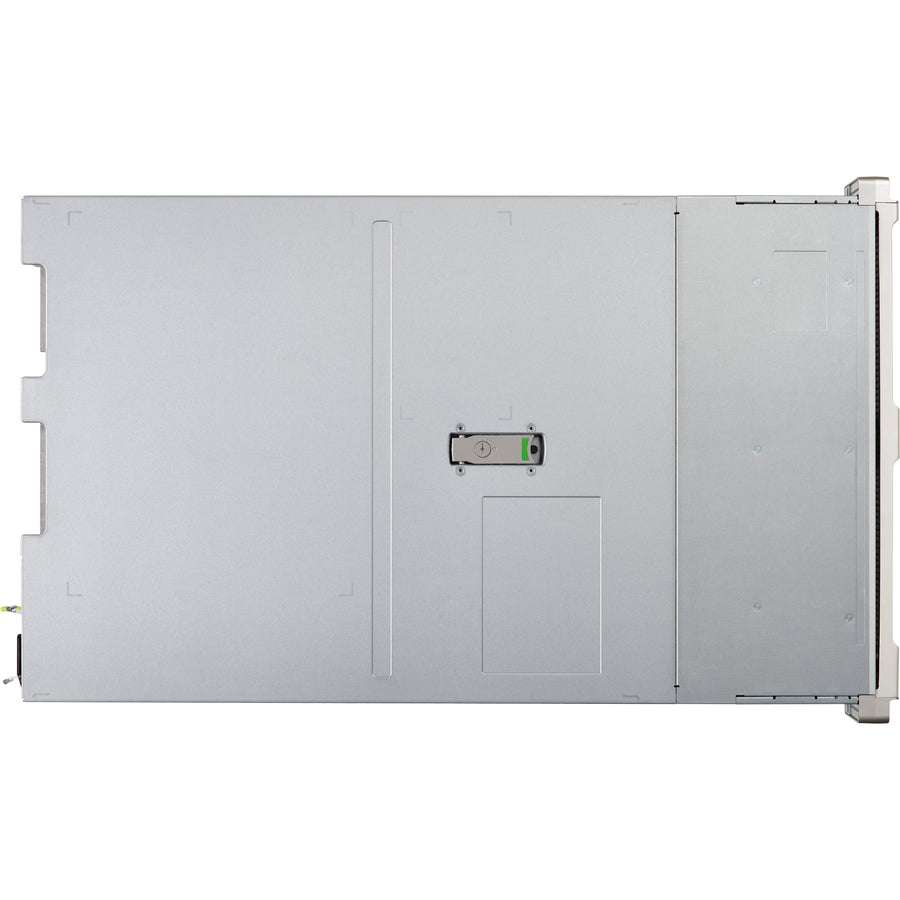

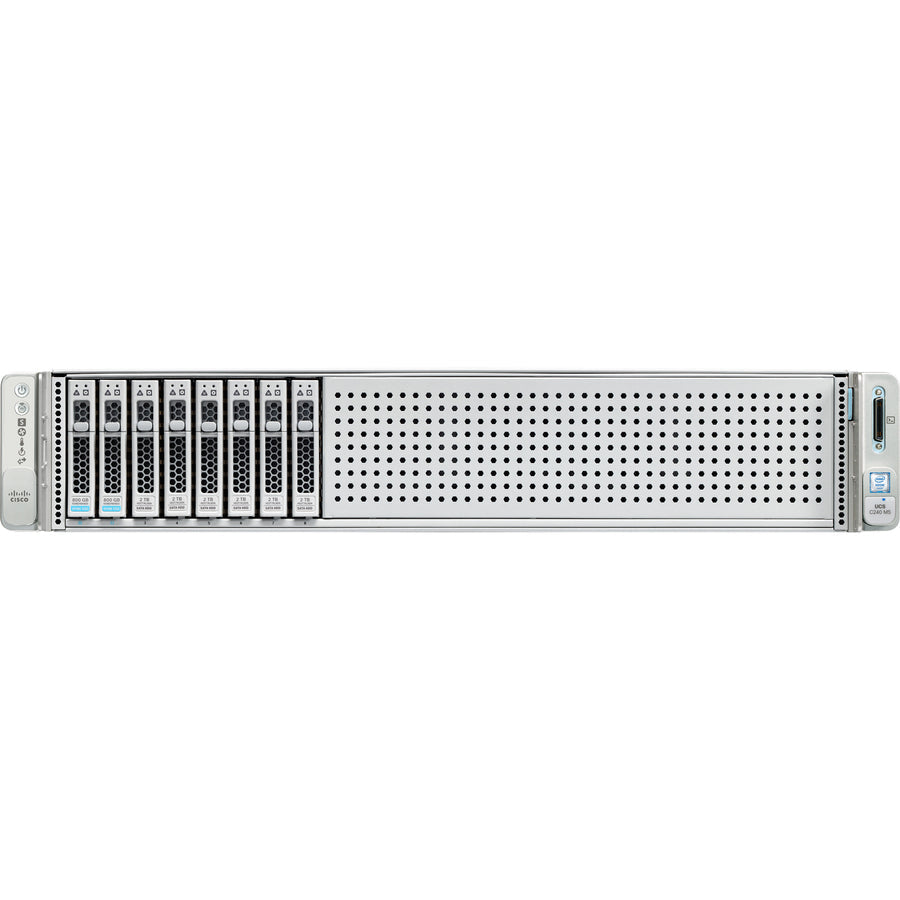

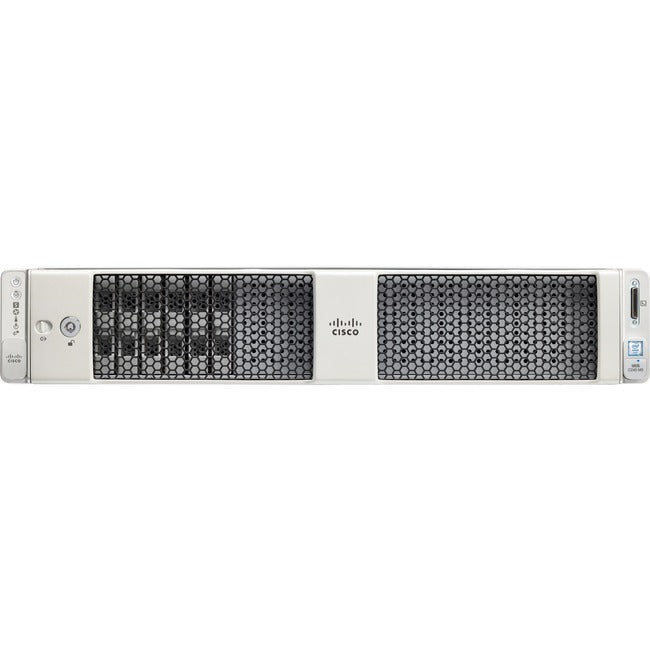

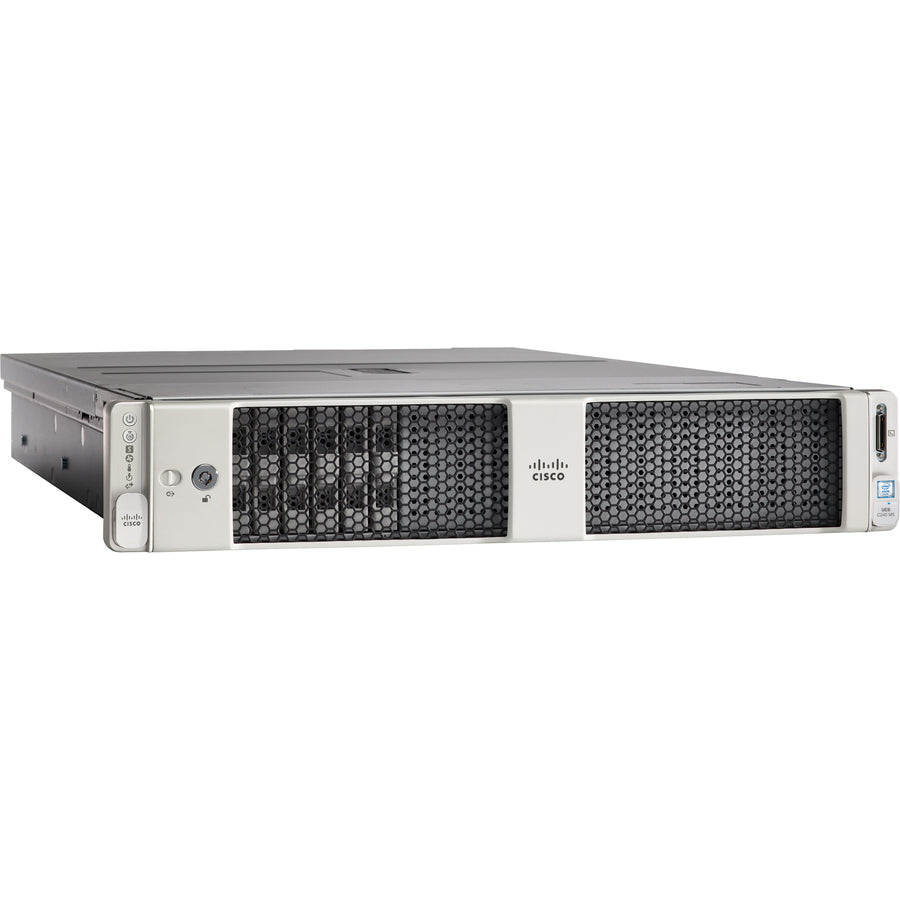

Cisco Barebone System - 2U Rack-mountable - 2 x Processor Support
UCS C240 M5 SFF server extends the capabilities of Cisco's Unified Computing System portfolio in a 2U form factor with the addition of the Intel® Xeon® Processor Scalable Family, 24 DIMM slots for 2666 MHz DDR4 DIMMs and capacity points up to 128GB, up to 6 PCI Express (PCIe) 3.0 slots, and up to 26 internal SFF drives. The C240 M5 SFF server also includes one dedicated internal slot for a 12G SAS storage controller card.
The C240 M5 server includes a dedicated internal modular LAN on motherboard (mLOM) slot for installation of a Cisco Virtual Interface Card (VIC) or third-party network interface card (NIC), without consuming a PCI slot, in addition to 2 x 10Gbase-T Intel x550 embedded (on the motherboard) LOM ports.
The Cisco UCS C240 M5 server can be used standalone, or as part of the Cisco Unified Computing System, which unifies computing, networking, management, virtualization, and storage access into a single integrated architecture enabling end-to-end server visibility, management, and control in both bare metal and virtualized environments.
- Perform computational tasks effectively accrediting the Xeon Platinum processor
- DDR4 SDRAM compatible slot - Allows the memory to operate at an effective bus speed while using minimal power, resulting in an optimal computer performance and improved memory heat dissipation
- Optimize business network's performance with 10 Gigabit Ethernet connectivity
- With 2 USB ports, connect/disconnect devices while not having to shut down the system
- 12Gb/s SAS interface for high speed and reliability
Product Type: Barebone System
Product Series: C240 M5
Rack Height: 2U
Brand Name: Cisco
Form Factor: Rack-mountable
Manufacturer: Cisco Systems, Inc
Product Name: UCS C240 M5 Barebone System
Manufacturer Part Number: HX-C240-M5S
Manufacturer Website Address: http://www.cisco.com
Weight (Approximate): 57.50 lb
