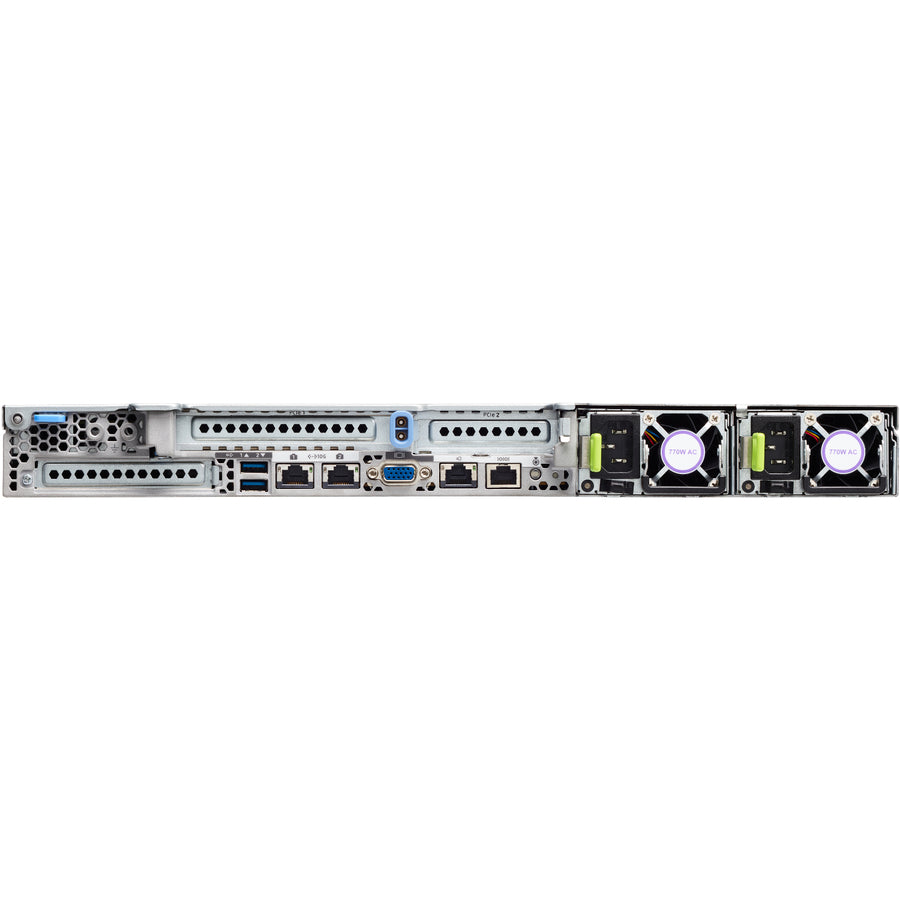

Cisco Barebone System - 1U Rack-mountable - 2 x Processor Support
The UCS C220 M5 LFF server extends the capabilities of Cisco's Unified Computing System portfolio in a 1U form factor with the addition of the Intel® Xeon® Processor Scalable Family, 24 DIMM slots for 2666MHz DIMMs and capacity points up to 128GB, two 2 PCI Express (PCIe) 3.0 slots, up to four SAS/SATA hard disk drives (HDDs) or solid state drives (SSDs), and one dedicated internal slot for a 12G SAS storage controller card.
The C220 M5 LFF server includes a dedicated internal modular LAN on motherboard (mLOM) slot for installation of a Cisco Virtual Interface Card (VIC) or third-party network interface card (NIC) without consuming a PCI slot in addition to 2 x 10 Gbase-T Intel x550 embedded (on the motherboard) LOM ports.
The Cisco UCS C220 M5 server can be used standalone, or as part of the Cisco Unified Computing System, which unifies computing, networking, management, virtualization, and storage access into a single integrated architecture enabling end-to-end server visibility, management, and control in both bare metal and virtualized environments.
- Experience high performance, built-in security and remote management capabilities with Intel Xeon processor
- DDR4 SDRAM compatible slot - Allows the memory to operate at an effective bus speed while using minimal power, resulting in an optimal computer performance and improved memory heat dissipation
- Optimize business network's performance with 10 Gigabit Ethernet connectivity
- Provides 2 USB ports for responsive and expanded device connections
- 12Gb/s SAS interface for high speed and reliability
Product Type: Barebone System
Product Series: C220 M5
Rack Height: 1U
Brand Name: Cisco
Form Factor: Rack-mountable
Manufacturer: Cisco Systems, Inc
Product Name: UCS C220 M5 Barebone System
Manufacturer Part Number: UCSC-C220-M5L-CH
Manufacturer Website Address: http://www.cisco.com
Weight (Approximate): 37.50 lb
