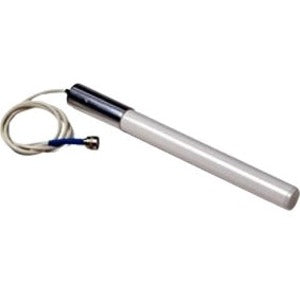

Cisco Aironet Omnidirectional Antenna
The antenna is a ruggedized high-performance colinear antenna that operates in the 5-GHz frequency range and is designed for use in large rooms or vaulted areas where extended coverage is needed. The antenna is designed to be used indoors or outdoors and can be mounted on a mast.
- Designed to operate at 5.15 GHz to 5.85 GHz operating frequency range
- Widely used in wireless data network
- Offers up to 6 dB gain
- Provides ease of management and installation thanks to its omni-direction feature
Product Type: Antenna
Diameter: 1"
Brand Name: Cisco
Compatibility:
- Cisco Aironet 1200 Series Access Points
Manufacturer: Cisco Systems, Inc
Product Model: AIR-ANT5160V-R
Product Name: Aironet Omnidirectional Antenna
Product Line: Aironet
Application/Usage: Wireless Data Network
Manufacturer Part Number: AIR-ANT5160V-R
Manufacturer Website Address: http://www.cisco.com
Package Contents:
Ceiling mount kit consists of the following hardware:
- One T-rail grid bracket
- One bracket plate
- Two internal tooth lock washers
- Two #6-32 x 1/4-in. SS Phillips machine screws
- One I-beam clamp
- One 1/4-in. flat washer
- One 1/4-in. split lock washer
- One 1/4 x 20 x 1/2-in. hex head bolt
Pole (mast) mount kit consists of the following hardware:
- Six 5/16-in. x 18 SS hex nuts
- Four 5/16-in. SS lock washers
- One U-bolt
- One V-bracket
- Two base brackets
- Two 5/16-in. flat washers
Limited Warranty: 1 Year
Weight (Approximate): 5.30 oz
