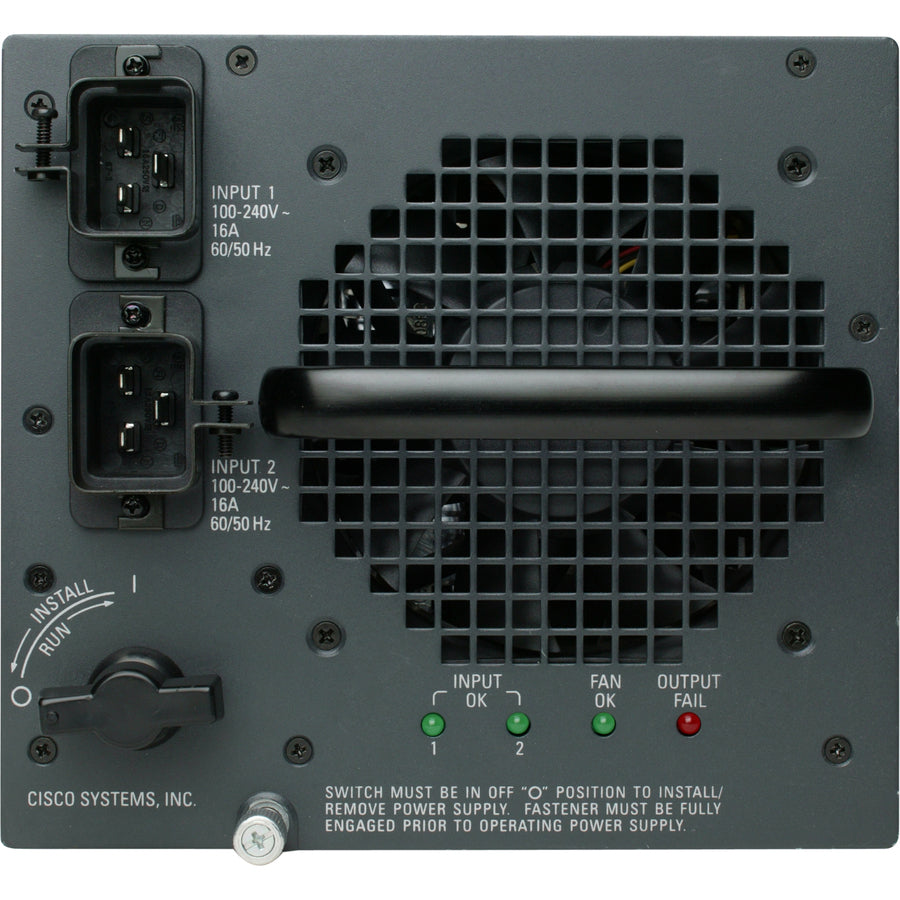

Cisco 6000W Redundant Power Supply

The 6000W Redundant Power Supply is a dual AC input power supply. When both inputs are at high line (220 VAC nominal voltage) then the output is 6000W. When both inputs are active but at least one is operating at low line (110 VAC nominal voltage), or a single input is active and running from a high line (220 VAC nominal voltage) source, the unit is capable of providing 2900W output power. (The power supply will not power up with 110V single input).

Cisco Catalyst Switches:

• 6506-E
• 6509-E
• 6513

Cisco Chassis:

• Catalyst 6506
• Catalyst 6506-E
• Catalyst 6509
• Catalyst 6509-E
• Catalyst 6509-NEB
• Catalyst 6509-NEB-A
• Catalyst 6513
• OSR-7609
• 7609
• 7613
