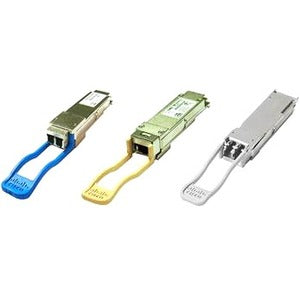

Cisco 4X10Gbase-Lr Qsfp Modules For Smf Qsfp-4X10G-Lr-S=

Cisco 4x10GBASE-LR QSFP Modules for SMF

The Cisco QSFP-4X10G-LR-S QSFP module supports link lengths of up to 10km on G.652 single-mode fiber (SMF). It enables high-bandwidth 40G optical links over 12-fiber parallel fiber terminated with MPO/MTP multifiber female connectors. It can also be used in a 4x10G mode for interoperability with 10GBASE-LR interfaces up to 10km.

The 4x10G connectivity is achieved using an external 12-fiber parallel to 2-fiber duplex breakout cable, which connects the 4x10G LR module to four 10GBASE-LR optical interfaces. Cisco's QSFP-4X10G-LR-S is optimized to guarantee interoperability over the full specification range of 10GBASE-LR in 4x10G mode. QSFP-4X10G-LR-S does not support FCoE.

• Optical fiber cable compatible - Spans afar and provides speedy data transmission rates between servers and network components


• For transmitting data at gigabit speed over hundreds of miles with little integrity loss, single-mode fiber optic is an ideal solution


• 40Gigabit Ethernet - Designed to provide high-performance Ethernet connection while minimizing power and CPU cycles' utilization


• With 40GBase-LR technology, enjoy up to 40Gbps data transfer rate over optical fiber cable

Product Type: QSFP
Environmentally Friendly: Yes
Environmental Certification: RoHS
Brand Name: Cisco
Compatibility: Cisco Router Series:

• Nexus 3000 Series
• Nexus 9000 Series
• NCS 1002 Router
