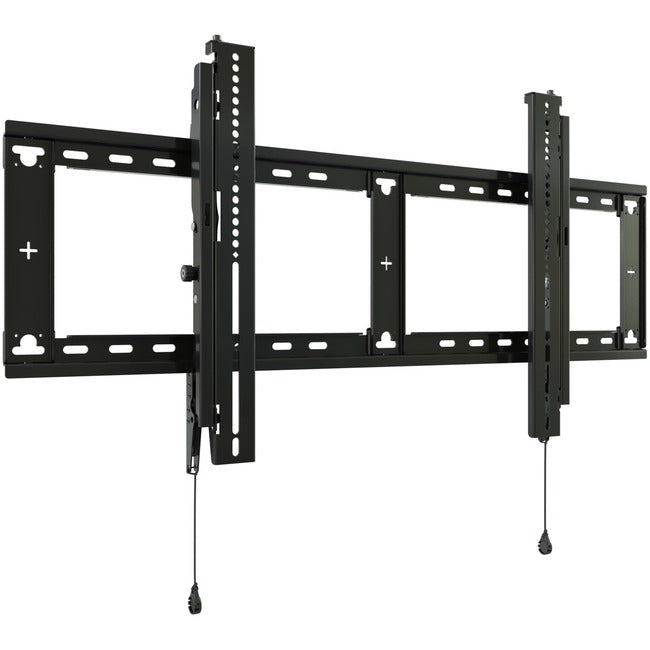

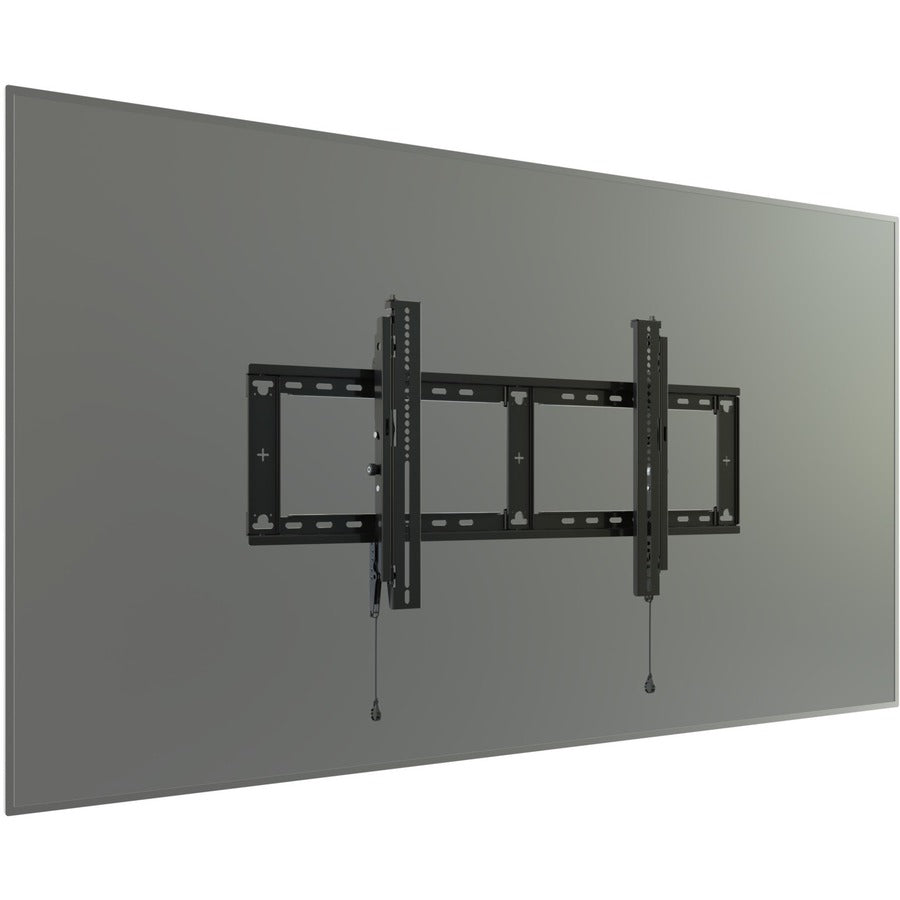

Chief Fit Large Display Wall Mount - Tilt - For Displays 43-86"
The Fit series RLT3 is a large tilt display wall mount for 43" to 86" typical display sizes and supports mounting patterns up to 915 x 450 mm. This next-generation design features 0.75" (19 mm) post-installation leveling, robust wall plate design supporting up to 200 lbs (90.7 kg), 2" (51 mm) low-profile depth, up to 12° tilt, and UL and TUV safety standard approvals.
- Low-profile 2" (51 mm) depth facilitates ADA compliance for typical AV design requirements
- Easy to reach 0.75" (19 mm) post-installation leveling screw and 10" (254 mm) ball end hex-key included

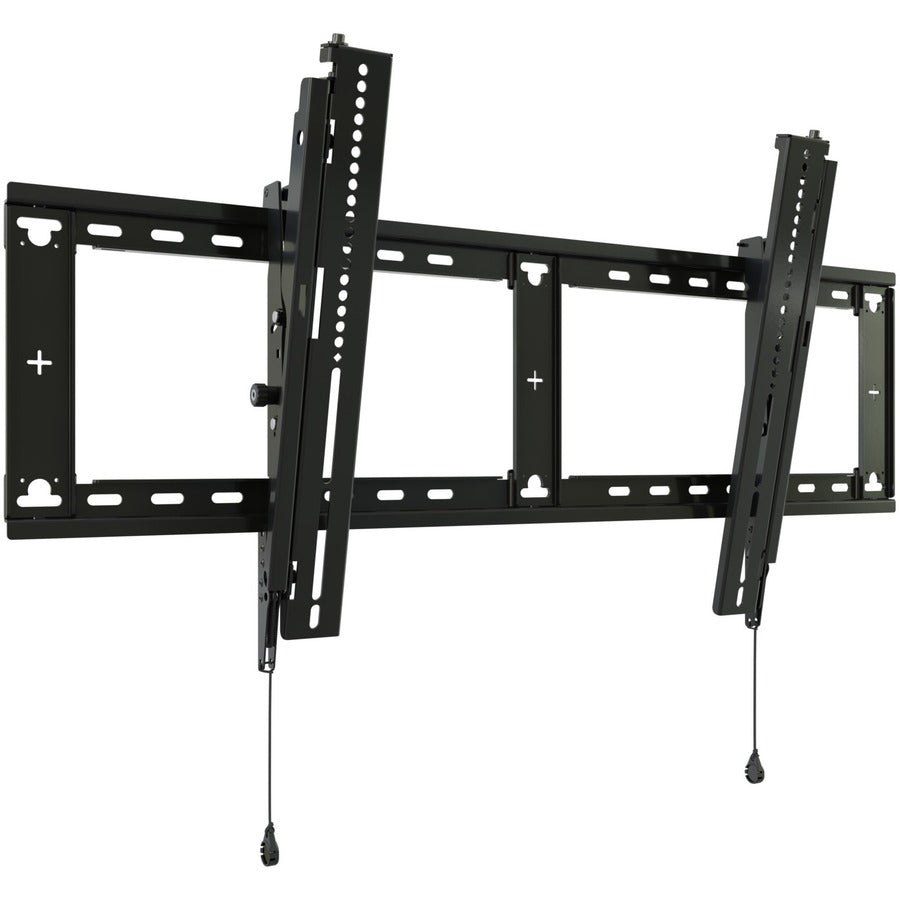

- Display can be tilted up to 12° to set the optimal viewing angle
- Open wall plate allows for flexible positioning around power and data wall boxes
- Supports display mounting patterns up to 915 x 450 mm
- Rigid wall plate supports up to 200 lbs (90.7 kg) and has additional mounting slots for improved installation experience
- Lateral shift with toolless GlideLock secures display to wall plate and allows perfect positioning of screen
- Easy access magnetic quick-store release pullcords
- Kickstand for easy access to power and signal connections
- Theft deterrent security options (not included)
Product Type: Wall Mount
Vesa Mount Compatible: Yes
Mounting Pattern: 915 x 450
Product Color: Black
Brand Name: Chief
Compatibility:
Chief Storage Boxes:
Chief PACSBM Sound Bar Mount
Chief Mounting Panels:
Manufacturer: Legrand Group
Product Model: RLT3
Product Name: Large Fit Tilt Display Wall Mount
Product Line: Large FIT
Application/Usage: Stud
Manufacturer Part Number: RLT3
Manufacturer Website Address: http://www.legrand.us
Package Contents:
- Large Fit Tilt Display Wall Mount
- Post-Installation Leveling Screw
- Ball End Hex-Key
Limited Warranty: 10 Year
