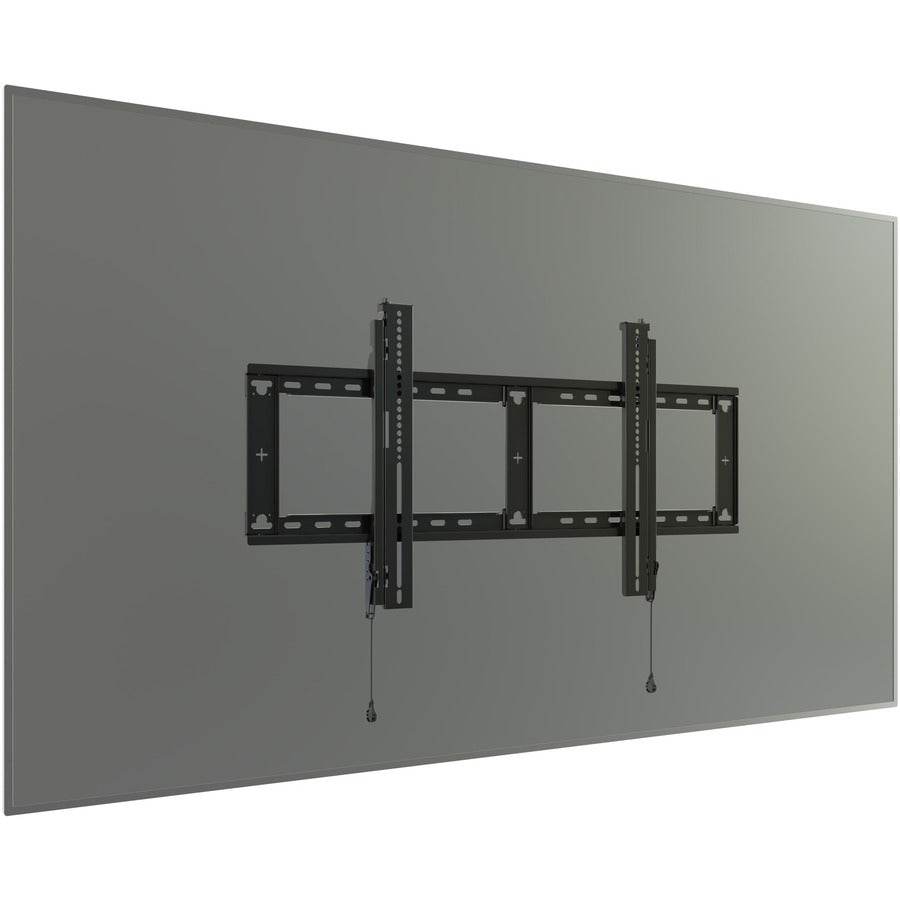

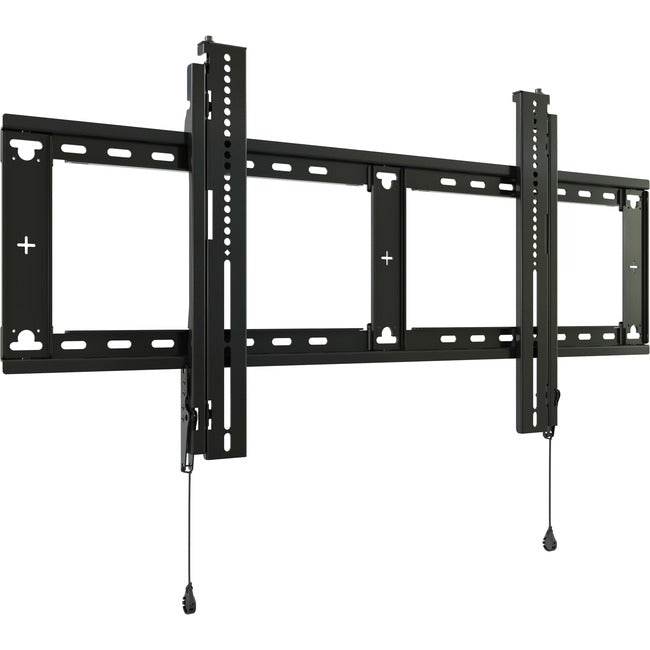

Chief Fit Large Display Wall Mount - Fixed - For Displays 43-86"
The Fit series RLF3 is a large fixed display wall mount for 43" to 86" typical display sizes and supports mounting patterns up to 960 x 450 mm. This next-generation design features 0.75" (19 mm) post-installation leveling, robust wall plate design supporting up to 200 lbs (90.7 kg), 1" (25 mm) low-profile depth, and UL and TUV safety standard approvals.
- Low profile 1" (25 mm) depth facilitates ADA compliance for typical AV design requirements
- Easy to reach 0.75" (19 mm) post-installation leveling screw and 10" (254 mm) ball end hex-key included
- Open wall plate allows for flexible positioning around power and data wall boxes
- Supports display mounting patterns up to 960 x 450 mm
- Re-designed rigid wall plate supports up to 200 lbs (90.7 kg) and has additional mounting slots for improved installation experience
- Lateral shift with toolless GlideLock secures display to wall plate and allows perfect positioning of screen
- Easy access magnetic quick-store release pullcords
- Kickstand for easy access to power and signal connections
- Theft deterrent security options (not included)
- UL and TUV safety standards compliant
Product Type: Wall Mount
Vesa Mount Compatible: Yes
Mounting Pattern: 960 x 450
Product Color: Black
Brand Name: Chief
Manufacturer: Legrand Group
Product Model: RLF3
Product Name: Large Fit Fixed Display Wall Mount
Product Line: Large FIT
Application/Usage: Wall
Manufacturer Part Number: RLF3
Manufacturer Website Address: http://www.legrand.us
Limited Warranty: 10 Year
