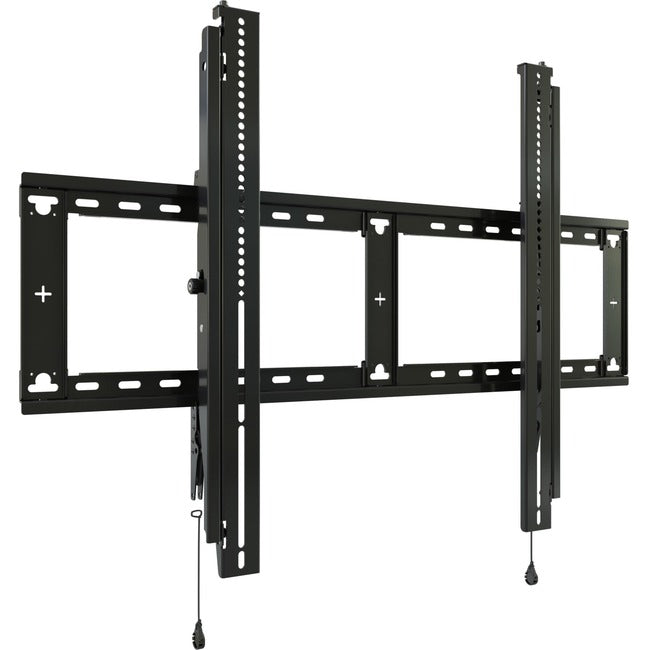

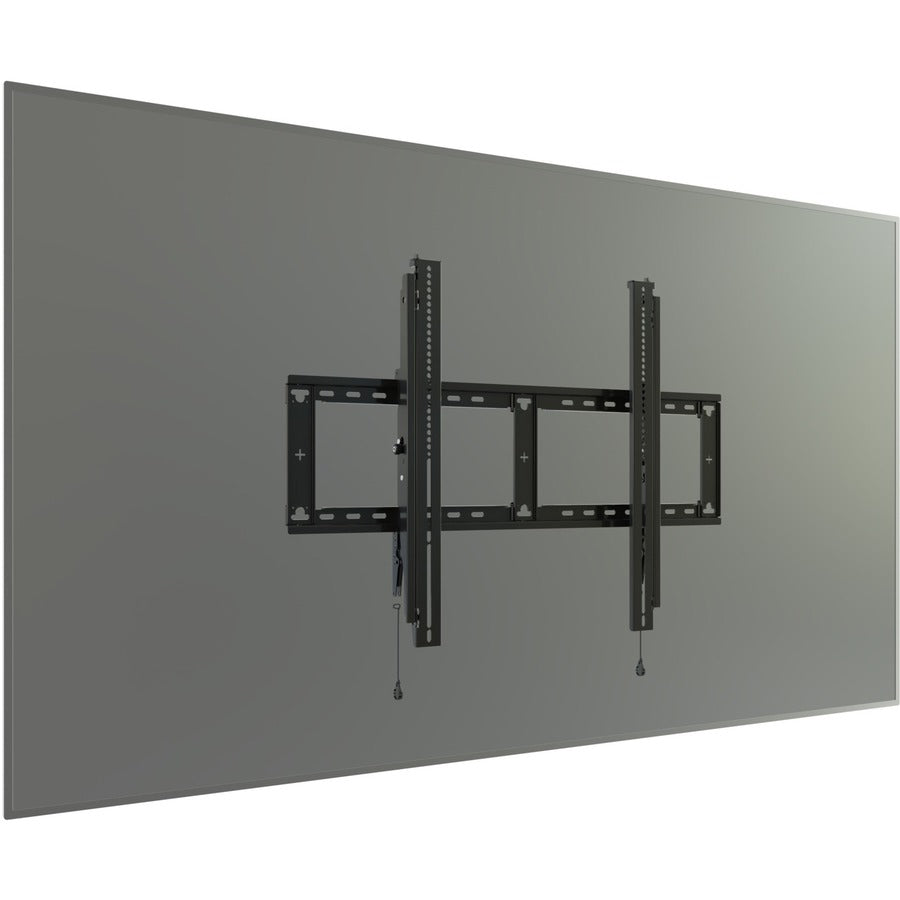

Chief Fit Extra-Large Display Wall Mount - Tilt Mount - For Displays 49-98"
The Fit series RXT3 is an extra-large tilt display wall mount for 49" to 98" typical display sizes and supports mounting patterns up to 915 x 650 mm. This next-generation design features 0.75" (19 mm) post-installation leveling, robust wall plate design supporting up to 250 lbs (113.4 kg), 2.5" (64 mm) low-profile depth, up to 12° tilt, and UL and TUV safety standards approved.
- Easy to reach 0.75" (19 mm) post-installation leveling screw and 10" (254 mm) ball end hex-key included

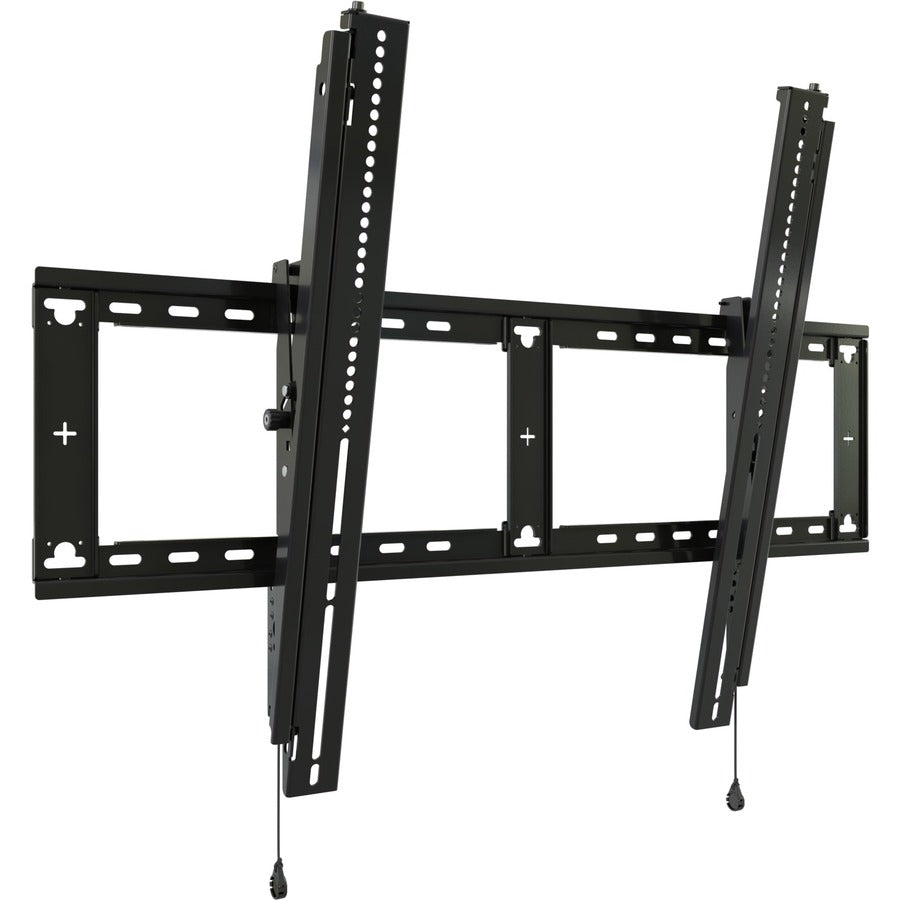

- Display can be tilted up to 12° to set the optimal viewing angle
- Open wall plate allows for flexible positioning around power and data wall boxes
- Supports display mounting patterns up to 915 x 650 mm
- Re-designed rigid wall plate supports up to 250 lbs (113.4 kg) and has additional mounting slots for improved installation experience
- Lateral shift with toolless GlideLock secures display to wall plate and allows perfect positioning of screen
- Easy access magnetic quick-store release pullcords
- Kickstand for easy access to power and signal connections
- Theft deterrent security options (not included)
- UL and TUV safety standards approved
Product Type: Wall Mount
Product Color: Black
Brand Name: Chief
Manufacturer: Legrand Group
Product Name: Extra-Large Fit Tilt Display Wall Mount
Product Line: Extra-Large Fit
Application/Usage: Wall
Manufacturer Part Number: RXT3
Manufacturer Website Address: http://www.legrand.us
Package Contents:
- Extra-Large Fit™ Tilt Display Wall Mount
- 0.75" (19 mm) Post-Installation Leveling Screw
- 10" (254 mm) Ball
Limited Warranty: 10 Year
