This managed ethernet switch is perfect for small to medium businesses and enterprise environments who need advanced network management with Power over Ethernet capabilities. Our cisco 10gbe switch delivers:
-
Advanced PoE+ support that powers IP cameras, wireless access points, and VoIP phones with up to 370W total power budget
-
High-speed 10G SFP+ uplinks for backbone connectivity and server connections
-
Comprehensive Layer 3 management ensuring VLAN segmentation, QoS, and advanced security features
-
2.5G multi-gigabit ports for next-generation wireless and high-bandwidth applications
Key Features
-
Twenty-four gigabit PoE+ ports to power and connect network devices simultaneously
-
Four 2.5GBASE-T ports supporting multi-gigabit speeds for high-performance connections
- Optimized for server rack network switch deployment with four 10G SFP+ uplink ports
- Consistent wire-speed performance with 128 Gbps switching capacity
-
Advanced security features including ACLs, 802.1X authentication, and DHCP snooping
Technical Specifications
| Manufacturer |
CISCO HW-ENERGYWISE |
| Model Number |
CBS350-24MGP-4X-NA |
| Type |
Managed Ethernet Switch |
| Port Configuration |
20 d 1GbE RJ45 PoE+, 4 d 2.5GbE RJ45 PoE+, 4 d 10G SFP+ |
| PoE Power Budget |
370W Total PoE+ (30W per port) |
| Switching Capacity |
128 Gbps |
| Forwarding Rate |
95.24 Mpps |
| MAC Address Table |
16K |
| VLAN Support |
4094 VLANs (802.1Q) |
| Mounting Type |
19-inch Rack Mount (1U) |
| Power Consumption |
453W Maximum (with full PoE load) |
| Operating Temperature |
0b0C to 45b0C (32b0F to 113b0F) |
| Compatible Systems |
Enterprise networks, IP surveillance, wireless infrastructure |
Frequently Asked Questions
Q: What makes this Cisco 10gbe switch ideal for modern business networks?
A: This switch combines high-density PoE+ capabilities with 10G uplinks and 2.5G multi-gigabit ports, making it perfect for powering IP cameras, Wi-Fi 6 access points, and connecting high-performance servers in a single solution.
Q: Can this PoE switch power multiple high-wattage devices simultaneously?
A: Yes, with a 370W PoE+ power budget, this switch can deliver up to 30W per port to power demanding devices like PTZ cameras, wireless access points, and VoIP phones across all 24 PoE-enabled ports.
Q: Does this managed ethernet switch support advanced network segmentation?
A: Absolutely. This Layer 3 managed switch supports up to 4094 VLANs, static routing, DHCP server functionality, and comprehensive ACLs for enterprise-grade network segmentation and security.
Q: Is this switch suitable for high-bandwidth applications and server connections?
A: Yes. The four 10G SFP+ uplink ports provide high-speed connectivity for server farms, storage networks, and backbone connections, while the 2.5G ports support next-generation wireless and high-performance client connections.

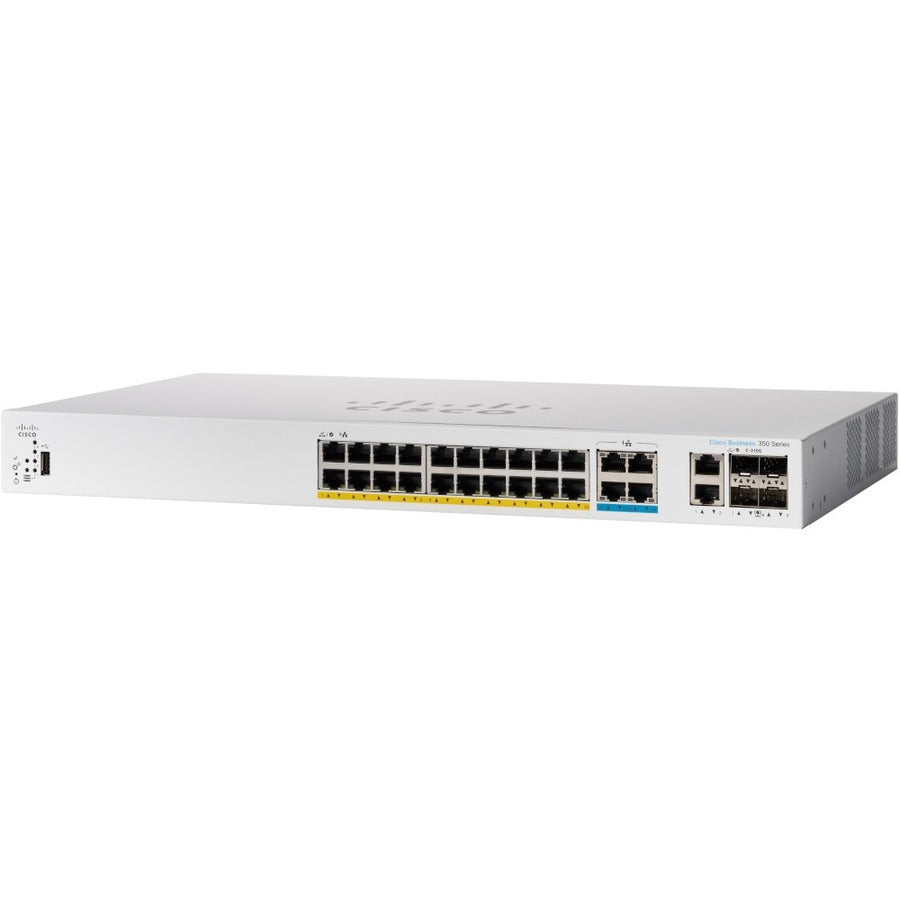

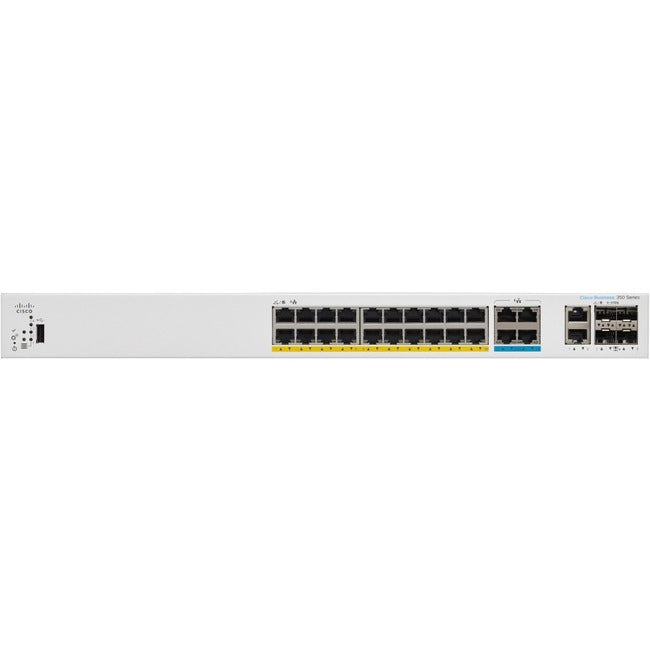

Cisco Business 350 CBS350-24MGP-4X managed PoE switch with 24 ports, 10G SFP+ uplinks, and 2.5G multi-gigabit for enterprise networks.
