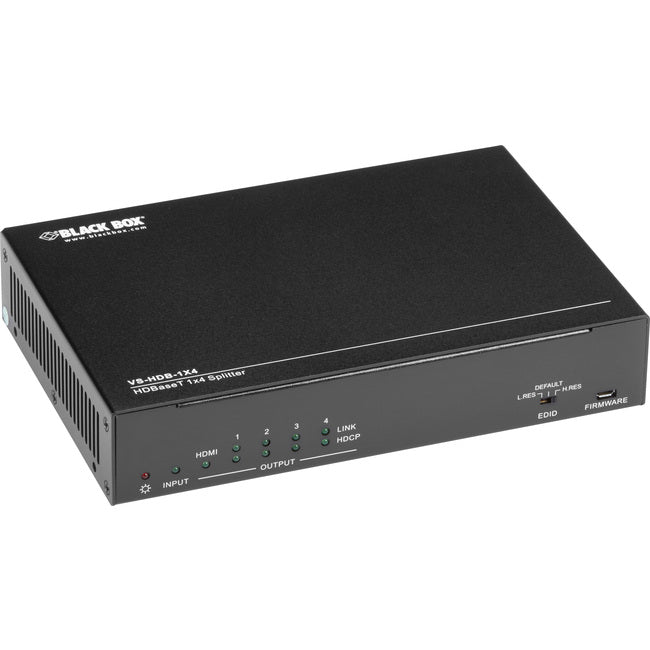

Black Box CATx Video Splitter - 1x4
The CATx Video Splitter, 1 x 4, 4K UHD, Smart EDID accepts a single HDMI input and splits it into four CATx outputs. The splitter is designed with an HDMI loop out, which is intended to cascade to additional units. It supports video resolutions up to 4K @ 60 Hz and all HDMI audio formats. It can extend 1080p signals on each output to a distance up to 229 feet (70 meters) and 4K signals to a distance up to 131 feet (40 meters) over a single CATx Ethernet cable. Supports the Power over CATx (PoC) feature, which allows the compatible receivers to be powered from the splitter over the Ethernet cables. It also supports bidirectional IR and RS-232 pass-through and loop output.
- Splits a single HDMI input to (4) CATx outputs and (1) HDMI loop output
- Supports video resolutions up to 4K @ 60-Hz 4:2:0
- Extends 1080p signals on each output to a distance up to 229-ft. and 4K signals to a distance up to 131-ft, over a CATx ethernet cable
- Supports the Power over Cable (PoC) feature, allowing the compatible CATx receivers to be powered by the splitter over the Ethernet cables
- Supports bidirectional IR and RS232 pass-through and loop out
- Smart EDID management, features DIP switch to select the output resolution to match the connected displays
- Fully compliant with teh HDMI 1.4 specification
- Supports HDCP pass-through management
- Supports firmware update
- Intuitive indicator for connection status
Product Type: Signal Splitter
Environmentally Friendly: Yes
Environmental Certification: RoHS
Product Condition: New
Brand Name: Black Box
Manufacturer: Black Box Corporation
Product Name: CATx Video Splitter - 1x4
Manufacturer Part Number: VS-HDB-1X4
Manufacturer Website Address: http://www.blackbox.com
Packaged Quantity: 1
Package Contents:
- HDBase-T Video Splitter - 1x4
- 2 x Mounting Ears
- 4 x Screws
- 4 x Circular Plastic Cushions
- 1 x 3-pin to 3-pin RS232 cable (for RS232 Loop out cascading)
- 1 x 3-pin to DB9 RS232 cable
- 1 x 3.5-mm Audio Cable (for IR loop out cascading)
- 4 x IR Receivers
- 1 x IR Emitter
- 1 x Power Adapter (24 VDC, 2.71 A)
Limited Warranty: 2 Year
Weight (Approximate): 1.60 lb
