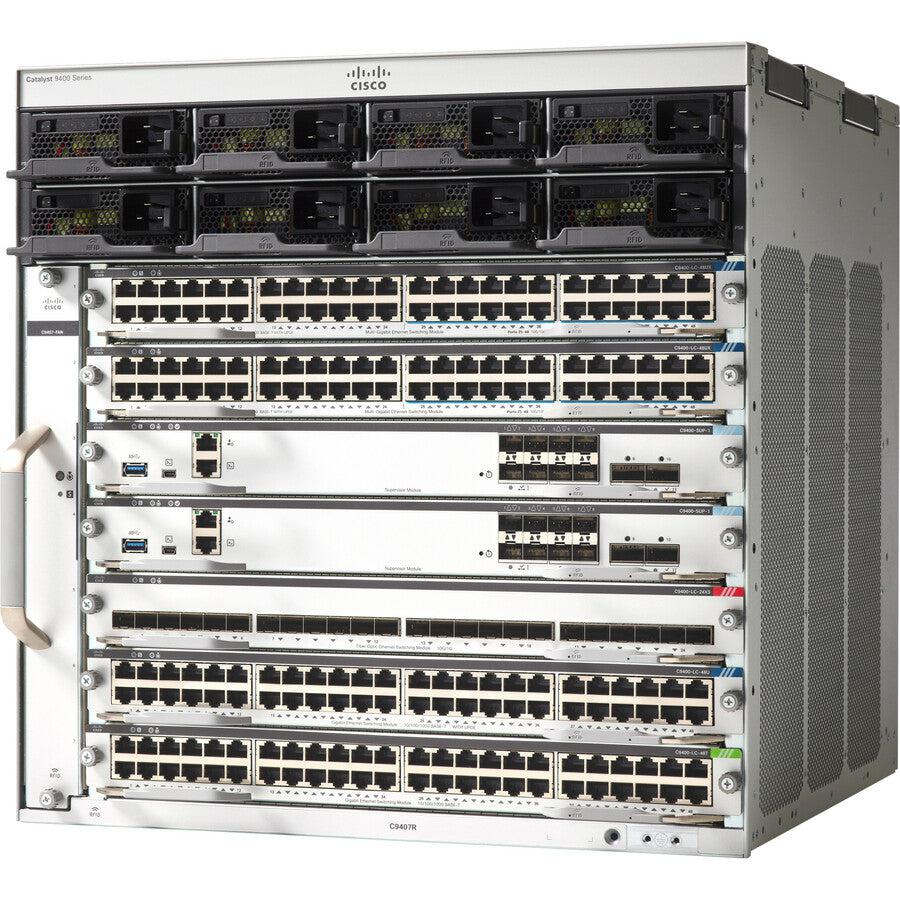

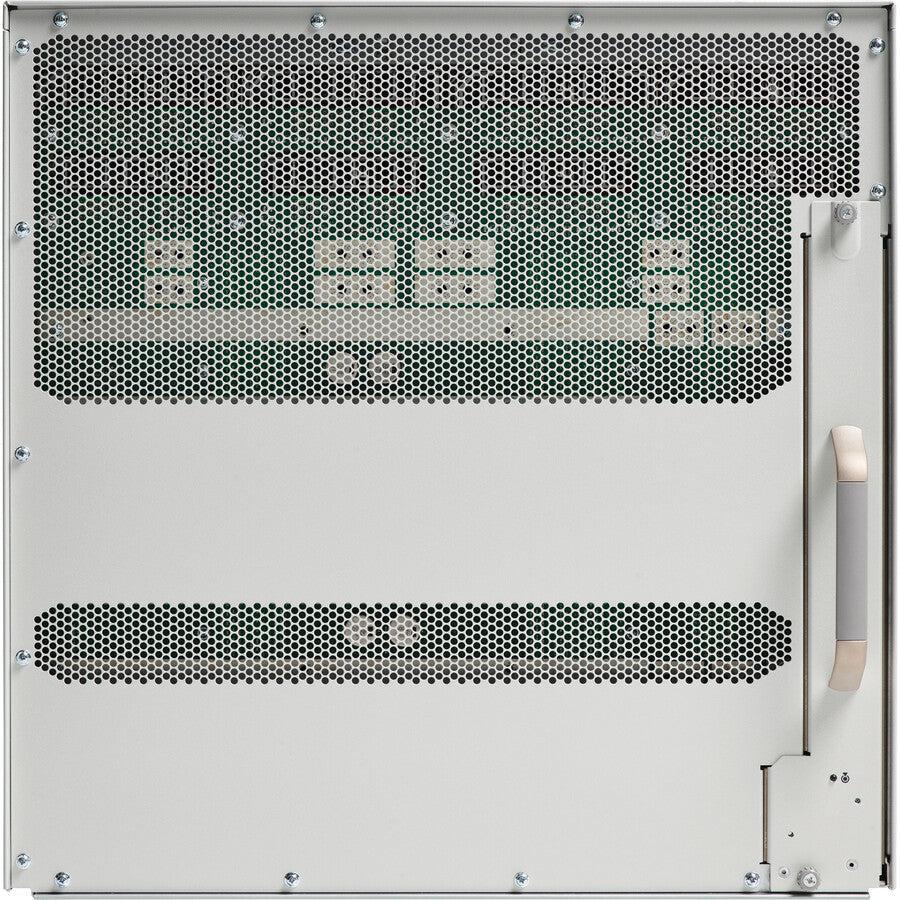

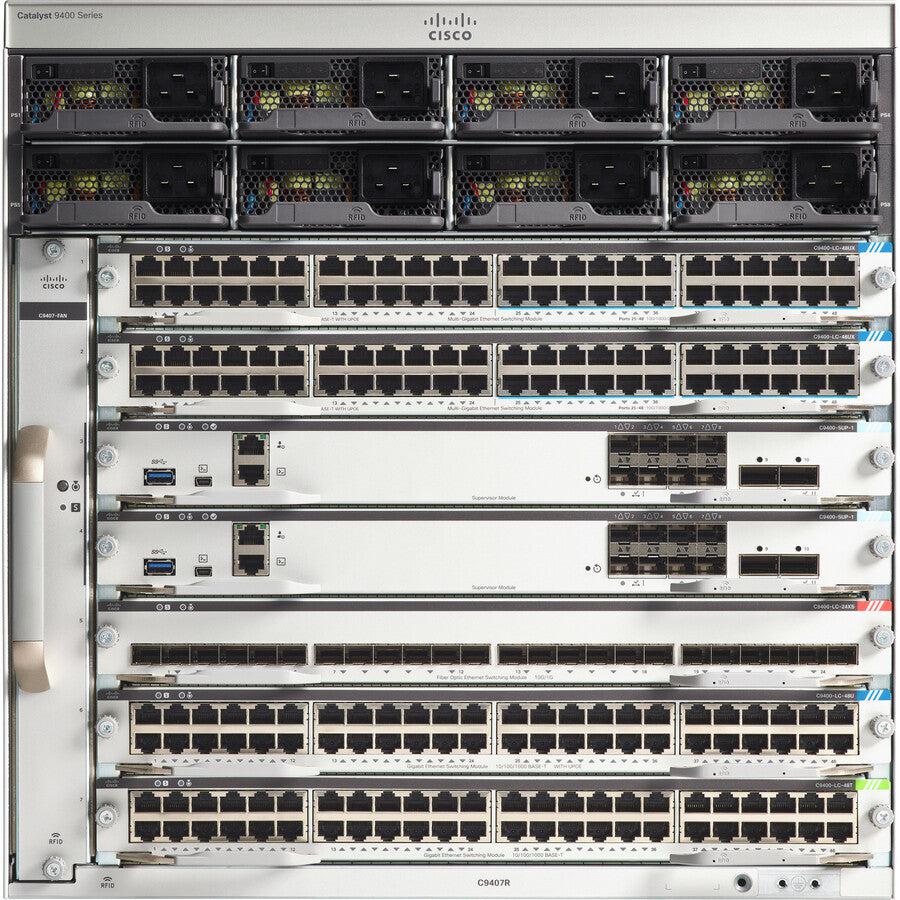

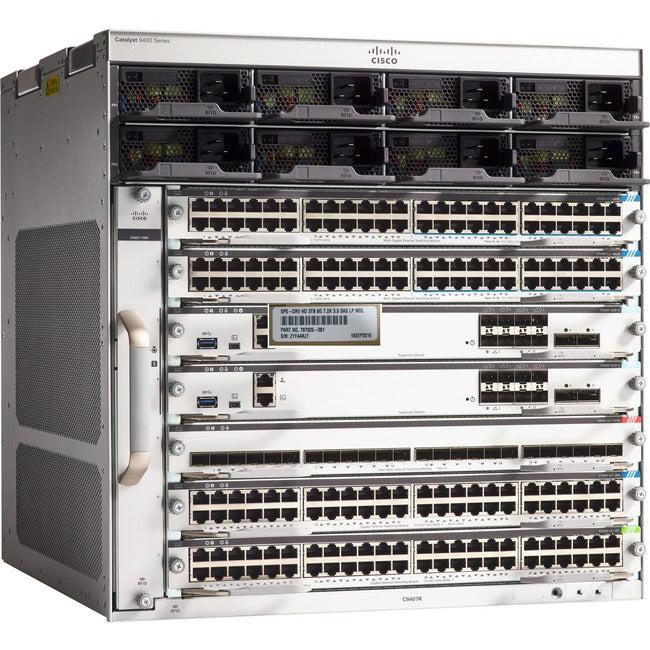

Cisco Catalyst 9400 Series 7 Slot Chassis
Built for Security, IoT, Mobility and Cloud
Advanced persistent security threats, exponential growth of Internet of Things (IoT) devices, mobility everywhere and cloud adoption require a network fabric that integrates advanced hardware and software innovations to automate, secure, and simplify customer networks. The goal of this network fabric is to enable customer revenue growth by accelerating business service rollout.
The Cisco® Digital Network Architecture (DNA) with Software Defined Access (SD-Access) is the network fabric that powers business. Cisco DNA is an open and extensible, software-driven architecture that accelerates and simplifies your enterprise network operations. The programmable architecture frees your IT staff from time consuming, repetitive network configuration tasks so they can focus instead on innovation that positively transforms your business. SD-Access enables policy-based automation from edge to cloud with foundational capabilities. These include:
? Simplified device deployment
? Unified management of wired and wireless networks
? Network virtualization and segmentation
? Group-based policies
? Context-based analytics
The Cisco Catalyst® 9400 Series switches are Cisco's leading modular enterprise switching access platform built for security, IoT and cloud. These switches form the foundational building block for SD-Access ? Cisco's lead enterprise architecture. The platform provides unparalleled investment protection with a chassis architecture that is capable of supporting up to 9Tbps of system bandwidth and unmatched power delivery for high density IEEE 802.3BT (60W PoE). Redundancy is now table stakes across the portfolio. The Catalyst 9400 delivers state-of-the-art High Availability (HA) with capabilities like uplink resiliency, N+1/N+N redundancy for power supplies. The platform is enterprise optimized with an innovative dual-serviceable fan tray design, side to side airflow and is closet-friendly with ~16" depth. A single system can scale up to 384 access ports with your choice of 1G copper UPoE and PoE+ options. The platform also supports advanced routing and infrastructure services, SD-Access capabilities and network system virtualization. These features enable optional placement of the platform in the core and aggregation layers of small to medium-sized campus environments.
- Gigabit Ethernet port for ultra-fast network speeds
- Can work as layer 3 routing for scalable network design
- Management capability provides control over setup and configuration of your network
- Built-in power supply to ensure all components are being supplied with accurate voltage
- Rack mounting enables you to organize wires & secure cables for professional installation
Product Type: Switch Chassis
Environmentally Friendly: Yes
Environmental Certification: RoHS-5
Compatible Rack Unit: 10U
Product Series: 9400
Brand Name: Cisco
Form Factor: Rack-mountable
Manufacturer: Cisco Systems, Inc
Product Model: C9407R
Product Name: Catalyst 9400 Series 7 Slot Chassis
Product Line: Catalyst
Manufacturer Part Number: C9407R=
Manufacturer Website Address: http://www.cisco.com
Package Contents:
- Catalyst 9400 Series 7 Slot Chassis
- 19-in. Rack
- Cable Guide Hardware
Limited Warranty: Lifetime
Weight (Approximate): 63 lb
