S5 / S9 / S13 5–13 Pocket Currency Sorter – High-Speed Fitness & Mixed Denomination Banknote Sorter
The Cassida S5/S9/S13 Pocket Currency Sorter family is a high-speed, multi-pocket mixed-denomination currency sorter and fitness grader designed for serious cash operations. Available in 5-pocket (S5) and expandable 9-pocket / 13-pocket (S9/S13) configurations, these professional note sorters count, value, and sort banknotes while automatically separating rejects into a dedicated pocket for uninterrupted processing.
These machines are built for banks, credit unions, casinos, cash centers, CIT/armored carriers, retail cash offices, and gaming venues that demand fast throughput, central-bank-compliant fitness sorting, detailed reporting, and rock-solid counterfeit detection.
Key Features & Benefits
-
5 / 9 / 13 pocket architecture – Start with the Cassida S5 5-pocket sorter and scale up to S9 9-pocket or S13 13-pocket as your branch or cash center grows.
-
High-speed processing – Up to 1,200 bills per minute in free-count mode, 1,000 bills per minute for value counting, and 900 bills per minute for serial number reading or fitness sorting.
-
Advanced recognition & counterfeit detection – Dual CIS imaging plus UV, IR, MG, MT and mechanical thickness sensors provide accurate denomination recognition and robust detection of counterfeits, altered, and unfit notes.
-
Full fitness & policy sorting – Sort by denomination, fitness, face, orientation, and version, supporting central bank fitness standards and internal cash handling rules.
-
Large capacity stackers – Each stacker pocket can hold up to 600 notes, with a dedicated reject pocket rated for 300 notes, perfect for long, uninterrupted runs.
-
Big 12.1" touch display – Intuitive Windows-based UI with a large color touchscreen makes operation, mode selection, and report viewing fast and simple.
-
Service-friendly design – Easy access to transport paths and remote software upgrade capability via LAN/USB, so firmware and note profiles can be kept up to date.
Brief Specs – Cassida PRO S5 / S9 / S13

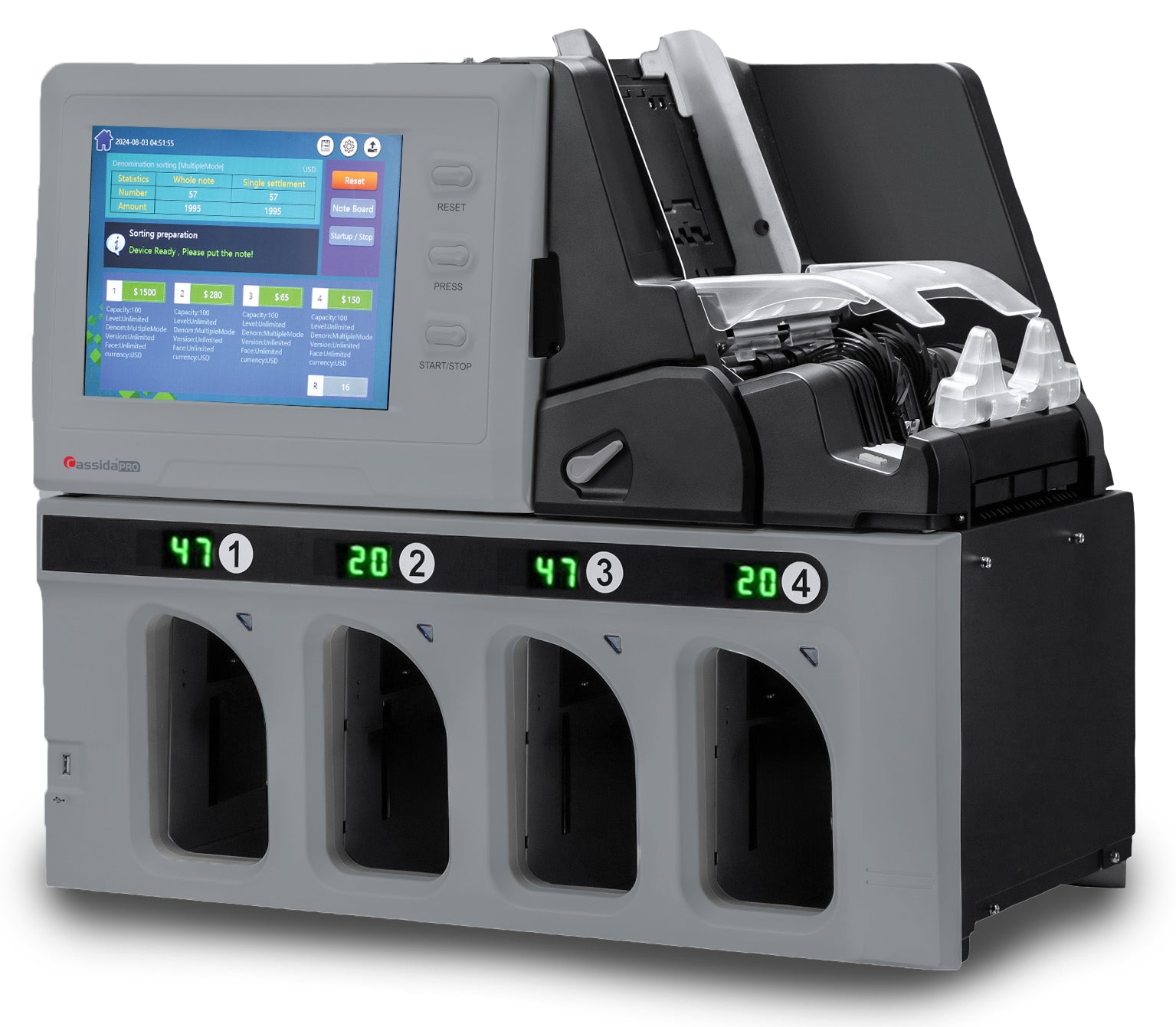

Cassida PRO S5 – 5 Pocket Currency Sorter
-
Pockets: 4 stacker pockets + 1 reject (5-pocket platform)
-
Sensors: Dual CIS, magnetic (MG), magnetic thread (MT), infrared (IR), ultraviolet (UV), mechanical thickness
-
Speeds:
-
Free count: up to 1,200 bills/min
-
Value count: up to 1,000 bills/min
-
Serial number reading: up to 900 bills/min
-
Fitness sorting: up to 900 bills/min
-
Capacities:
-
Display: 12.1" touch screen
-
Dimensions (W × D × H): approx. 28.2" × 25.2" × 14.96" (715 × 640 × 380 mm)
-
Weight: approx. 133.4 lb (60.5 kg)
-
Power: AC 90–230 V, 50/60 Hz, ≤320 W
-
Interfaces: DB9 (RS-232), USB, LAN, VGA
-
OS: Windows 10, storage up to 64 GB

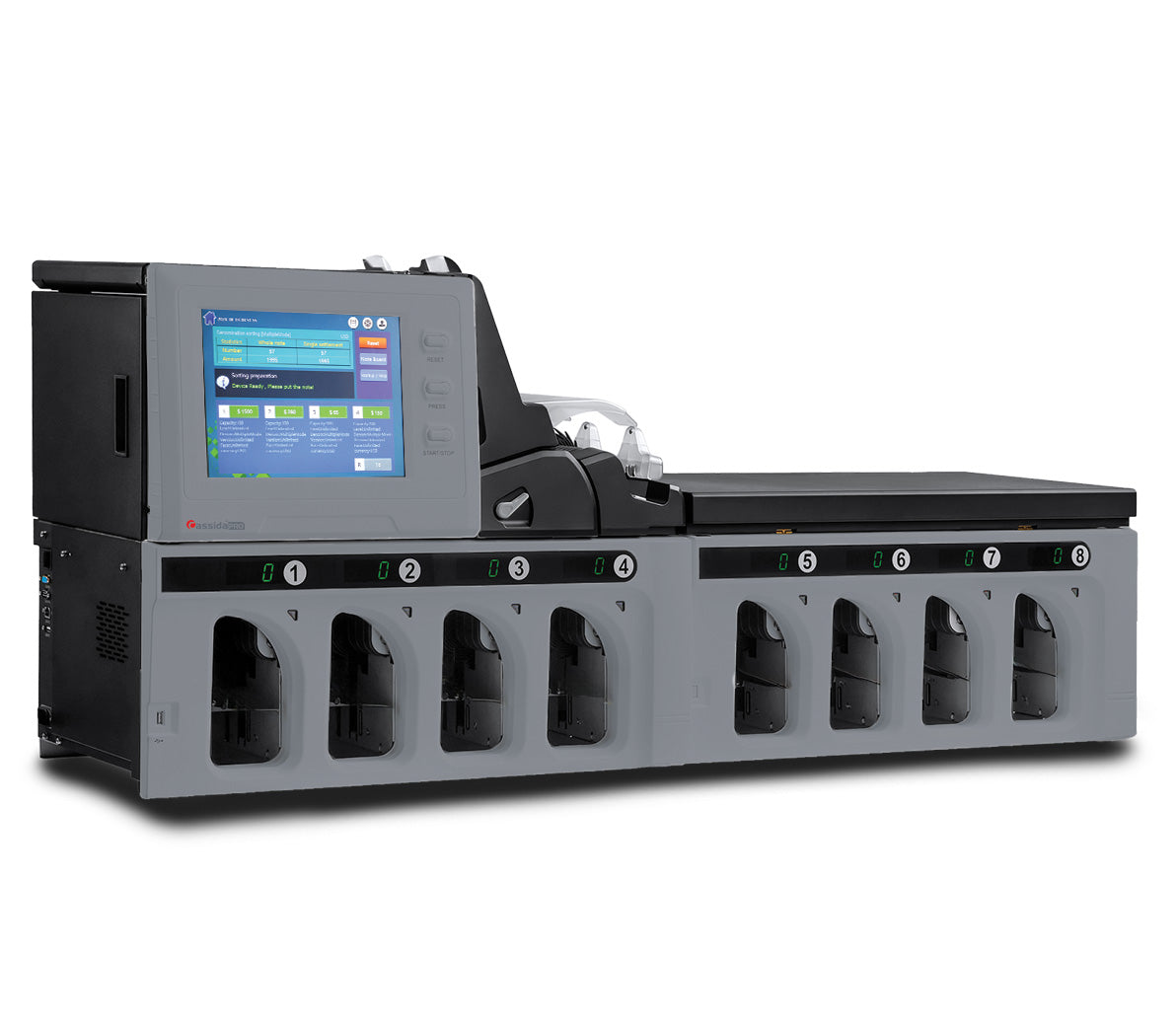

Cassida PRO S9 / S13 – 9 & 13 Pocket Currency Sorters
-
Pockets: 8 stacker pockets + 1 reject (S9), or expanded to 13 pockets for higher denomination and fitness routing complexity
-
Sensors: Dual CIS, MG, MT, IR, UV, mechanical thickness
-
Speeds:
-
Free count: up to 1,200 bills/min
-
Value count: up to 1,000 bills/min
-
Serial number reading: up to 900 bills/min
-
Fitness sorting: up to 900 bills/min
-
Capacities:
-
Display: 12.1" touch screen
-
Dimensions (W × D × H): approx. 56.2" × 25.2" × 15" (1430 × 640 × 380 mm)
-
Weight: approx. 220.4 lb (100 kg)
-
Power: AC 90–230 V, 50/60 Hz, ≤500 W
-
Interfaces: DB9 (RS-232), USB, LAN, VGA
-
OS: Windows 10, storage up to 64 GB
Who the Cassida S5 / S9 / S13 Are For
-
Financial institutions – Branch and vault cash rooms needing high-speed, multi-pocket sorting, fitness grading, and serial number capture for audit/compliance.
-
Casinos & gaming – Count rooms processing large volumes of notes by table, pit, or machine, with strict reconciliation and counterfeit rules.
-
CIT / armored carriers & cash centers – Multi-customer note sorting, packaging, and deposit prep where throughput and accuracy are critical.
-
Large retailers & supermarkets – Central cash offices consolidating tills and deposits from many lanes or locations.
FAQs – Cassida S5 / S9 / S13 Pocket Currency Sorters
1. What’s the difference between the S5, S9, and S13 models?
The S5 is the base 5-pocket currency sorter, ideal for branches and smaller cash centers. The S9 and S13 add more stacker pockets (9 or 13 total), giving additional output destinations for denominations, fitness grades, currencies, or customer accounts, which is perfect for high-volume or multi-criteria sorting.
2. How fast can these sorters process cash?
All three models share the same high-speed platform: up to 1,200 notes per minute in simple count, 1,000 notes per minute in value mode, and up to 900 notes per minute when doing serial number capture or full fitness sorting.
3. What types of sorting can the S5/S9/S13 perform?
They can sort by denomination, fitness (fit/unfit), face, orientation, and version/series, while simultaneously checking for suspected counterfeit or damaged notes, which are automatically routed to the reject pocket.
4. Can the systems be updated for new note issues or currencies?
Yes. The S5/S9/S13 support remote software and currency profile updates via LAN/USB, so your machines can be kept current with new note designs, security features, and firmware improvements without major downtime.
5. Who should invest in the larger S9 or S13 units instead of the S5?
Choose S9 or S13 if you handle very high daily volumes, need to sort multiple denominations or fitness categories in a single pass, or run a cash center, casino, or CIT operation where extra pockets reduce manual resorting and increase overall throughput. Smaller branches or locations can often start with the S5 and upgrade later as needs grow.
