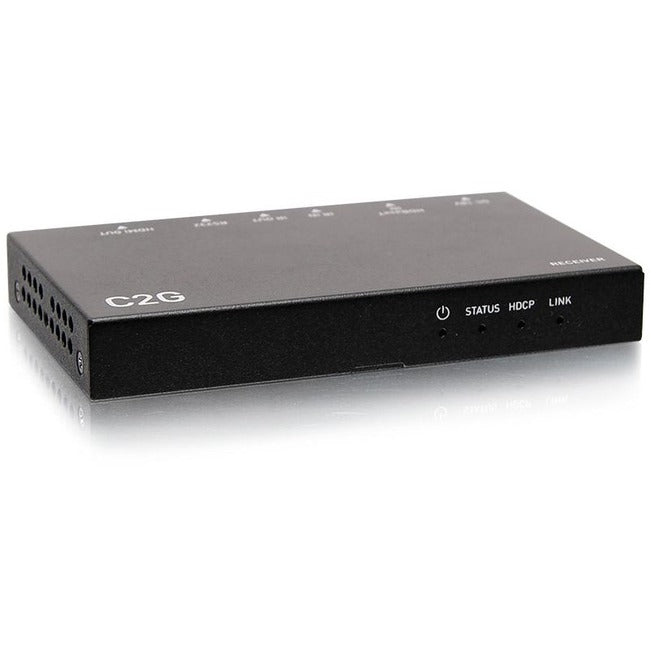

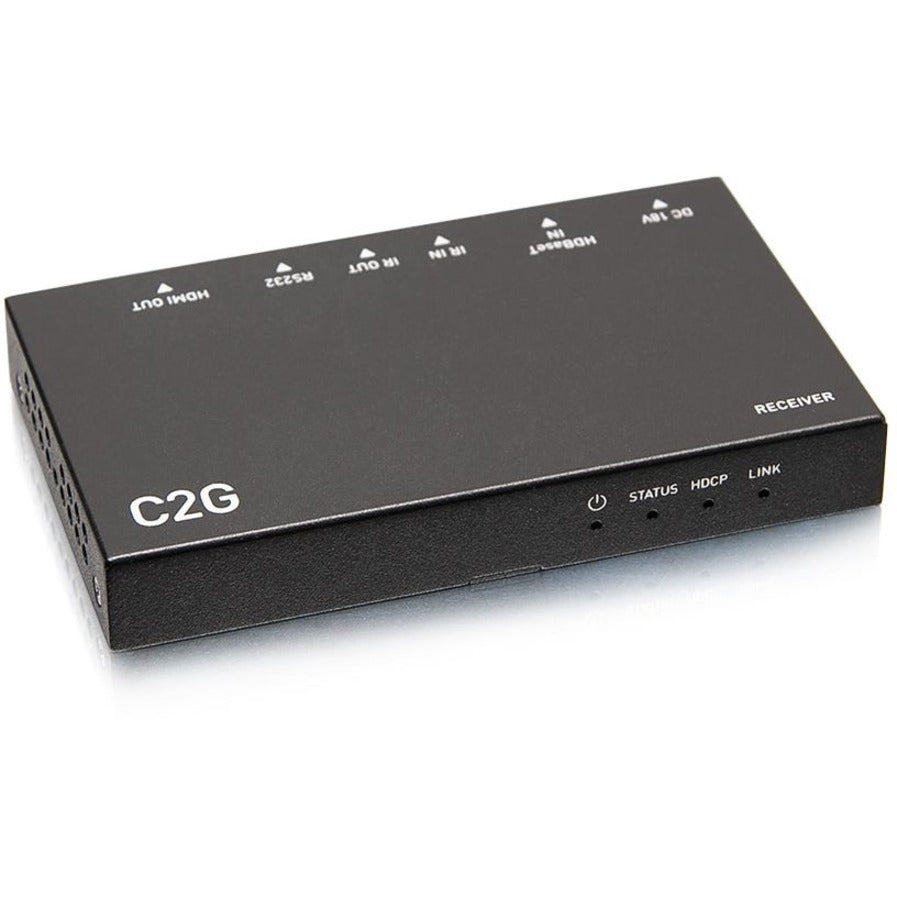

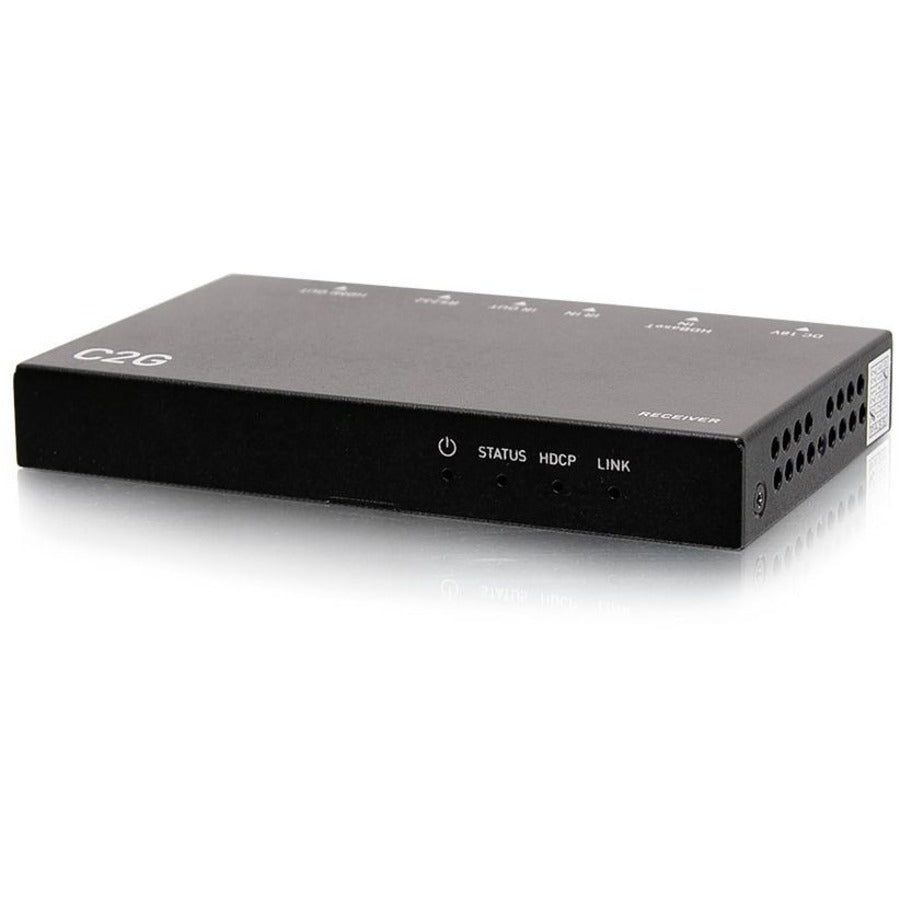

C2G HDMI Ultra-Slim HDBaseT + RS232 And IR over Cat Extender Box Receiver - 4k 60hz
The HDMI Ultra-Slim HDBaseT + RS232 And IR over Cat Extender Box Receiver - 4k 60hz allows a 4K HDMI source to be extended up to 130ft to a 4K display using a single Cat6a Ethernet cable. This is an ideal solution where HDMI video and audio need to be extended to displays in conference rooms, classrooms, lecture halls, and many other installation needs that are far beyond the length limitations of standard HDMI cabling.
This receiver accepts HDMI signals over a single network patch cable. Extend 4K HDMI up to 115 feet and 1080p up to 230 feet using a Cat5e or Cat6 cable. For longer 4K distances, extend 4K HDMI or up to 130 feet using a Cat6a cable.
This HDMI HDBaseT receiver is HDCP 2.2 compliant, making sure that the connection from the source is secure. With bi-directional PoC support, one power adapter at either transmitter or receiver side can power both units, so no additional power adapter is required, allowing for greater flexibility in installations. Advanced users can control bi-directional IR and RS232 pass through.
This HDBaseT receiver works with C2G30014, C2G30017, C2G30018 transmitters.
Note: Ensure a solid reliable connection between the 4K HDMI HDBaseT Extender and critical equipment. We suggest using HDMI Cables with gripping connectors that provide greater port retention than standard HDMI connectors.
- Extend 4K at 60Hz (4:2:0) up to 130ft and 1080p at 60Hz up to 230ft with Cat 6a cable
- Extend 4K at 60Hz (4:2:0) up to 115ft and 1080p at 60Hz up to 200ft with Cat 5e/6 cable
- HDCP 2.2 compliant, to create a secure connection between the source and display
- Supports CEC pass-through, allowing central control to all HDMI compatible devices

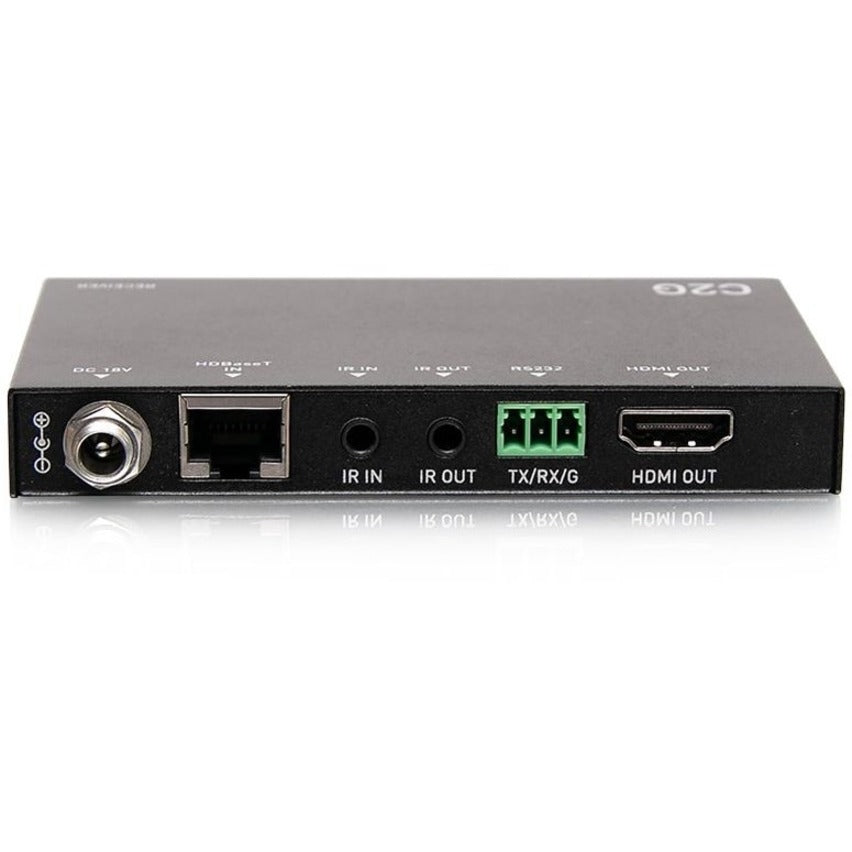

- Supports bi-directional IR and RS232 pass-through

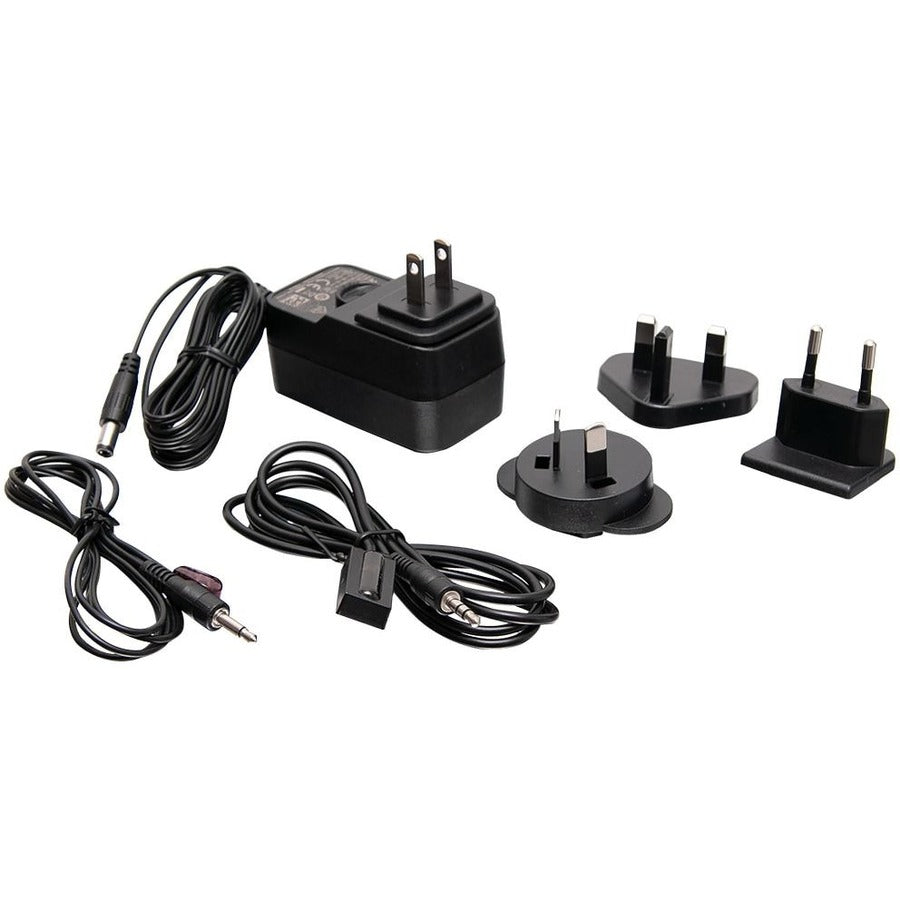

- Bi-directional PoC, one power adapter at either transmitter or receiver side can power both units
- HDBaseT Chipset VS010, for simpler HDBaseT installations
- Works with C2G30014, C2G30017, C2G30018, C2G30021, and C2G30022 transmitters
Product Type: Video Extender Receiver
Receiver Height: 0.60"
Receiver Width: 4.30"
Receiver Depth: 2.50"
Receiver Weight (Approximate): 6.40 oz
Product Color: Black
Brand Name: C2G
Manufacturer: C2G
Product Name: HDMI Ultra-Slim HDBaseT + RS232 And IR over Cat Extender Box Receiver - 4k 60hz
Manufacturer Part Number: C2G30015
Manufacturer Website Address: http://www.cablestogo.com
Limited Warranty: 5 Year
