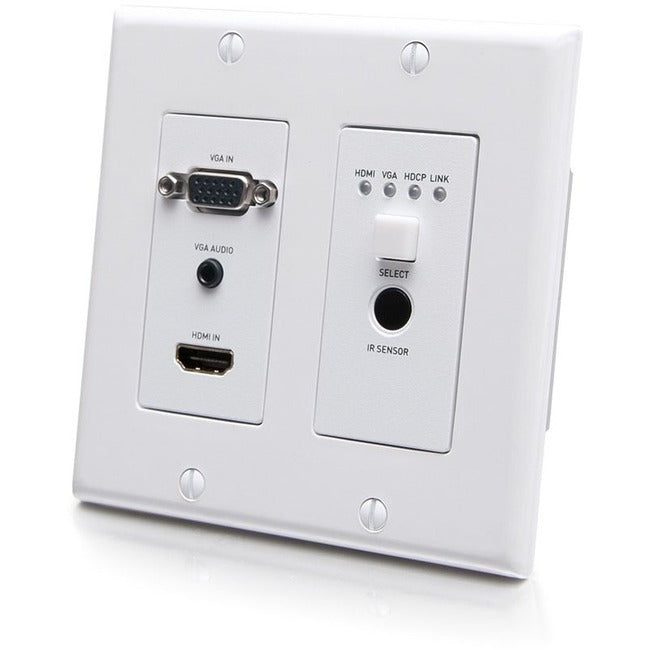

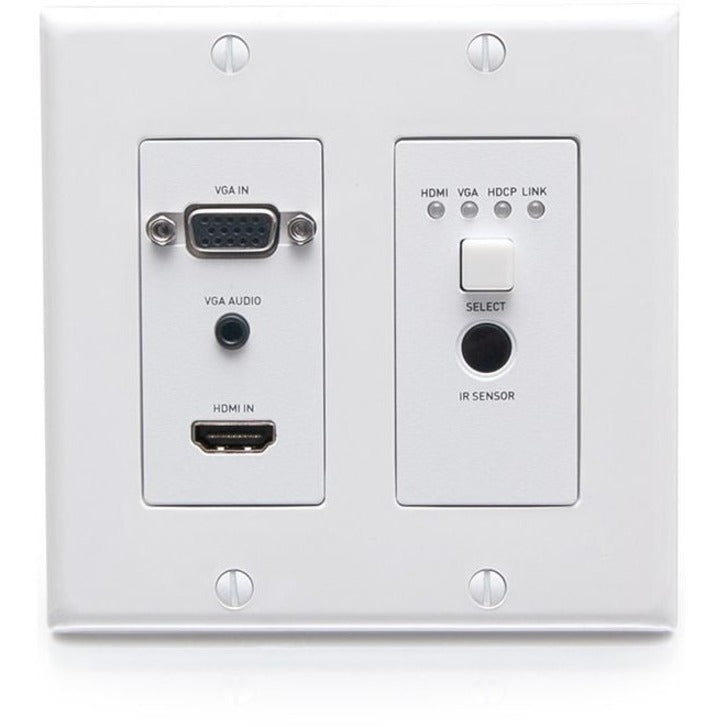

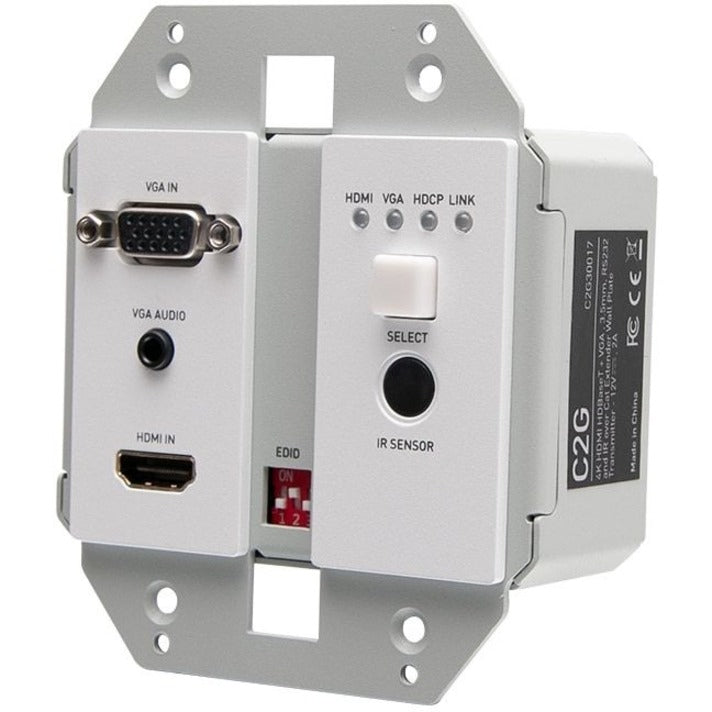

C2G 1 HDMI+VGA Wall Plate TX
The HDMI HDBaseT + VGA, 3.5mm, RS232, and IR over Cat Extender Dual Gang Wall Plate Transmitter - 4K 60Hz allows 4K HDMI or VGA sources to be extended using a single Cat6a Ethernet cable. This is an ideal solution where video and audio needs to be extended to displays in conference rooms, classrooms, lecture halls, and many other installation needs that are far beyond the length limitations of standard cabling.
This transmitter extends HDMI and VGA signals over a single network patch cable. Extend 4K HDMI up to 115 feet and 1080p VGA up to 230 feet using a Cat5e or Cat6 cable. For longer 4K distances, extend 4K HDMI or up to 130 feet using a Cat6a cable.
This HDMI HDBaseT transmitter is HDCP 2.2 compliant, making sure that the connection from the source is secure. The transmitter supports PoC PD to receive power from an HDBaseT receiver with PSE module. It can also be powered by local 12V power supply and share power with the receiver via the 3-pin phoenix power out connector, so no additional power adapter is required, allowing for greater flexibility in installations. Advanced users can control IR and RS232 pass through.
- Extend 4K at 60Hz (4:2:0) up to 130ft and 1080p at 60Hz up to 230ft with Cat 6a cable
- Extend 4K at 60Hz (4:2:0) up to 115ft and 1080p at 60Hz up to 200ft with Cat 5e/6 cable
- Supports VGA resolutions up to 1920x1200 at 60Hz
- Supports auto switching
- HDCP 2.2 compliant, to create a secure connection between the source and display
- All audio inputs support EDID - fixed at PCM 2CH
- HDMI input supports EDID - copied from HDBaseT receiver
- Independent DIP switch provided for VGA EDID Management

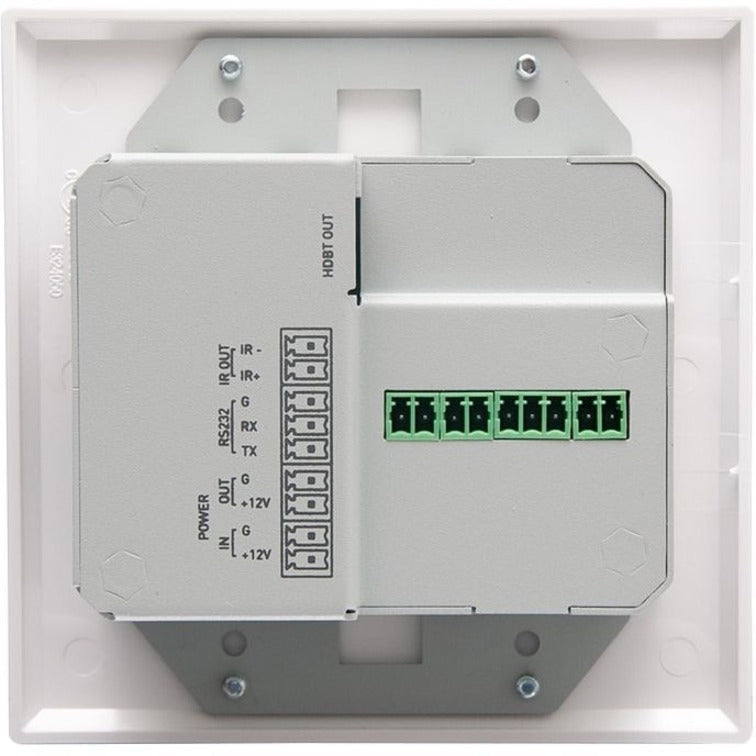

- Supports IR and RS232 pass-through
- Supports PoC PD to receive power from an HDBaseT receiver with PSE module
Product Type: Video Extender Transmitter
Transmitter Height: 1.51"
Transmitter Width: 3.50"
Transmitter Depth: 4.16"
Transmitter Weight (Approximate): 10.58 oz
Product Color: Black
Brand Name: C2G
Form Factor: Wall Plate
Manufacturer: C2G
Product Name: 1 HDMI+VGA Wall Plate TX
Manufacturer Part Number: C2G30017
Manufacturer Website Address: http://www.cablestogo.com
Limited Warranty: 5 Year
