WQXGA (2560x1600 @ 60Hz), Full HD (1920x1080 @ 60Hz), 100-240V

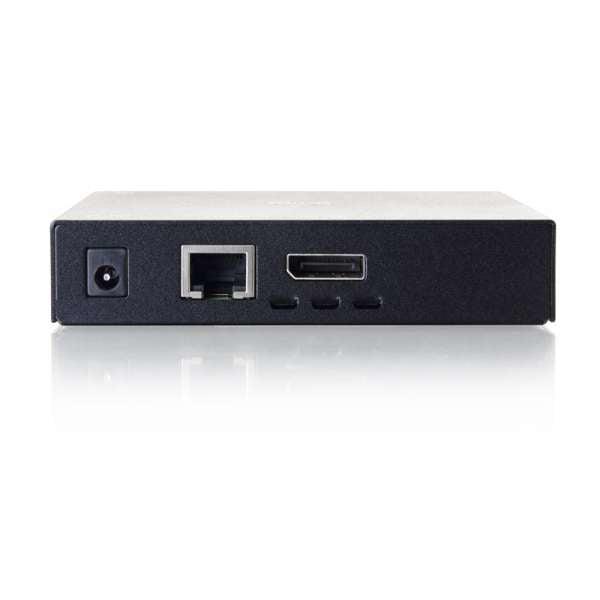

C2G 29303. Type: AV transmitter, Maximum resolution: 2560 x 1600 pixels, Cable types supported: Cat5. AC input voltage: 100-240 V, AC input frequency: 50 - 60 Hz, Operating voltage: 18 V. Dimensions (WxDxH): 109.2 x 86.3 x 22.86 mm
- Extend DisplayPort up to 300 feet at a 1080p resolution - Utilizes a single category cable for extension - HDBaseT technology supports HDCP and EDID pass through - Includes a DisplayPort transmitter and DisplayPort receiver
The DisplayPort HDBaseT over Cat5 Extender is an ideal solution for extending DisplayPort audio/video signals over a single Cat5/Cat5e/Cat6 unshielded twisted pair cable up to 300ft at a 1080p resolution. This solution is compatible with any operating system and is truly plug and play with no drivers or software required. This solution utilizes TruChoice power, which allows power to be supplied over the Cat5 cable to both the transmitter and receiver from a single power adapter placed at either the transmitter or the receiver end of the solution. HDBaseT technology supports HDCP and allows the Extended Display Identification Data (EDID) signals, i.e. communication of the display’s capabilities, to pass through the extension solution ensuring that the content from the source is sent at the optimal resolution for the display. Built-in power surge protection and high ground loop immunity ensure high performance signal extension.
