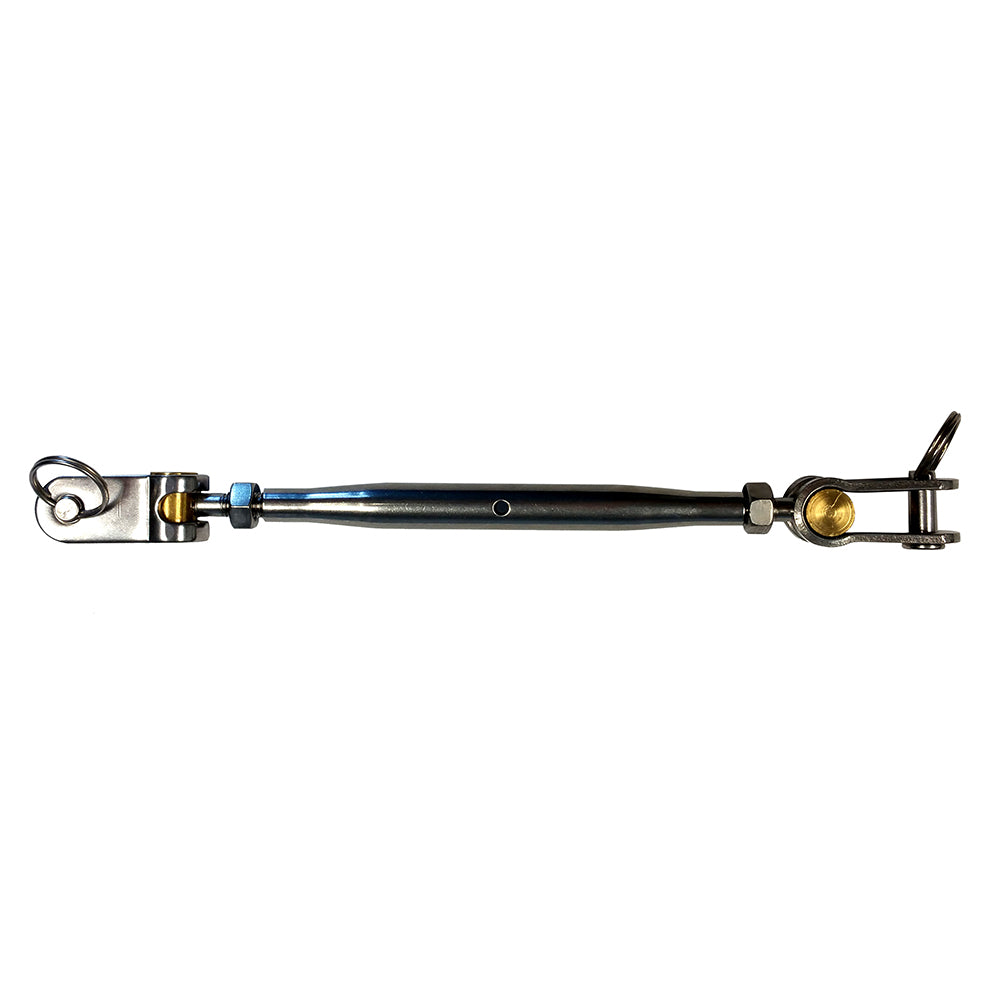

Jaw/Jaw Tubular Turnbuckle T-Style 5/16-24 Thread
For those who prefer a traditional body turnbuckle. The forged silicon bronze body, coupled with our integral toggle jaw, provides positive locking and ease of adjustment.
Forged silicon bronze bodies with 316 stainless ends offer a great non-galling combination. Integral toggle jaw eliminates the need for a separate rigging toggle.
Specifications:
- Jaw with "T" Toggle Construction
- Machine swage
- Bronze body/ 316 stainless ends
- Wire size: 3/16"
- Breaking strength: 4,000 pounds
- Safe working load: 1,600 pounds
- Thread size: 5/16-24
- Pin to pin length: 9" (closed) 12-3/4" (open)
- Body length: 5-1/8"
- Pin diameter: 5/16"
- Weight: 8 ounces
Manufacturer Part Number: 05-110
