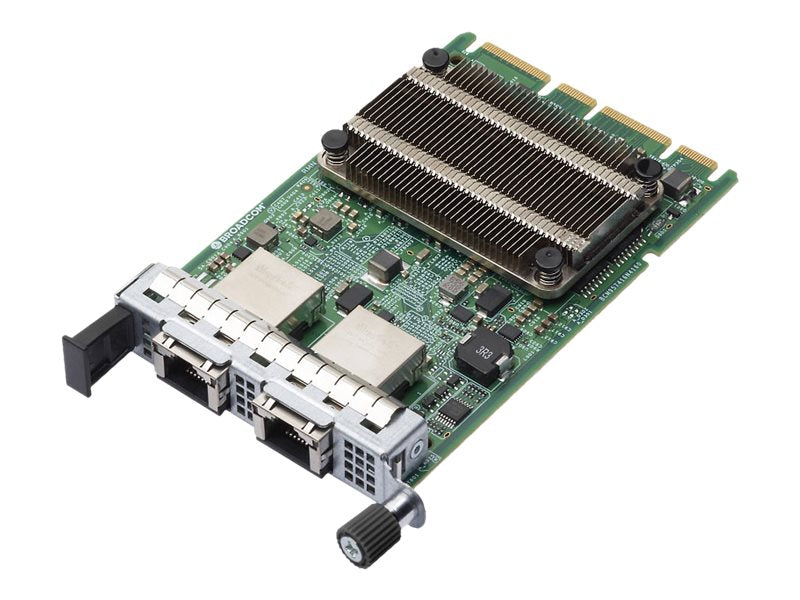

Broadcom NetXtreme E-Series N210TP - Network adapter - PCIe 3.0 x8 - Gigabit Ethernet / 10Gb Ethernet x 2
-
Enhanced connectivity
The Broadcom NetXtreme E-Series N210TP network adapter offers robust connectivity options with its dual RJ-45 connectors, supporting both 1/10GBase-T for versatile and high-speed network connections.
-
Advanced networking features
This adapter is equipped with a suite of advanced features such as Data Center Bridging (DCB), Jumbo Frames support up to 9000 bytes, and Receive Side Scaling (RSS), enhancing the efficiency and performance of your data center's network infrastructure.
-
Comprehensive standards compliance
Compliant with key industry standards including IEEE 802.3ab, IEEE 802.3an, and OCP 3.0, the N210TP ensures interoperability and reliable performance in diverse networking environments.
-
Efficient power and data management
Features like Wake On LAN (WOL) and a power consumption of only 14.6 watts during operation make the N210TP an energy-efficient choice that can help reduce operational costs while maintaining high data transfer rates of up to 10 Gbps.
-
Virtualization and offload support
With support for technologies like Single Root I/O Virtualization (SR-IOV), TCP/IP checksum offload, and Virtual Extensible LAN (VXLAN), the N210TP is designed to optimize virtualized environments and streamline data processing tasks.
Based on Broadcom's scalable 10/25/50/100/200G Ethernet controller architecture, the NetXtreme -E Series N210TP 2x10GBASE-T OCP 3.0 adapter is designed to build highly-scalable, feature-rich networking solutions in servers for enterprise and cloud-scale networking and storage applications, including high-performance computing, Telco, machine learning, storage disaggregation, and data analytics.
The N210TP 2x10GBASE-T OCP 3.0 adapter builds upon the success of the widely-deployed NetXtreme E-Series architecture by combining a high-bandwidth Ethernet controller with a unique set of highly-optimized hardware acceleration engines to enhance network performance and improve server efficiency.
The NetXtreme-E Series N210TP 2x10GBASE-T OCP 3.0 adapter addresses these performance and service demands of mega-scale data center networks with high throughput and advanced flow processing. Features such as TruFlow increase VM density up to 50 percent, freeing more CPU cycles for additional virtual machines. On-chip tunneling protocol processing for Geneve, VXLAN, and NVGRE provides up to a 5X throughput increase while lowering CPU utilization up to 90 percent compared to software-only solutions. NetXtreme-E Series solutions also support advanced networking technologies such as RoCE, SDN and NFV, to facilitate the management of data networks and to enable service provider solutions.
- Standards-compliant 10GBASE-T dual-port OCP 3.0 adapter with line-rate, full-duplex throughput
- NIC partitioning supporting 16 physical functions (PFs)
- TruFlow engine for intelligent flow processing to increase server VM density and accelerate vSwitch processing
- End-to-end congestion avoidance and management to anticipate and eliminate congestion before it happens
- Support for advanced networking technologies including RoCE, SDN, NFV and virtualization
- TruManage enhances server manageability and security for data center deployments
