Broadcom Dual-Port 100 Gb/s QSFP56 Ethernet PCI Express 4.0 x16 Network Interface Card -

Broadcom Dual-Port 100 Gb/s QSFP56 Ethernet PCI Express 4.0 x16 Network Interface Card - PCI Express 4.0 x16 - 2 Port(s) - Optical Fiber - 100GBase-X - Plug-in Card

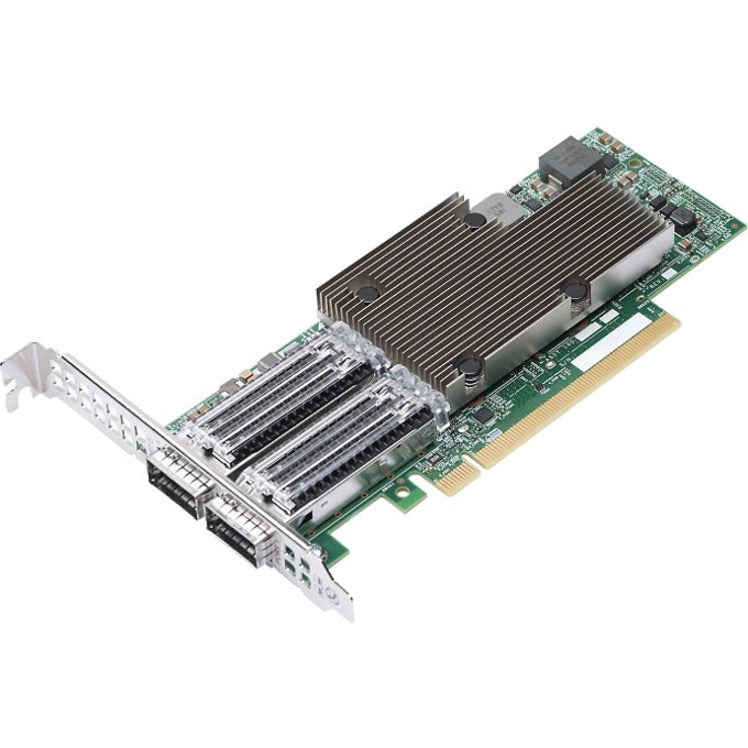

The Broadcom BCM957508-P2100G is a dual-port 100 Gb/s PCI Express 4.0 x16 Network Interface Card that supports QSFP56/QSFP28 optical modules and copper direct-attach cables. The card uses the Broadcom BCM57508 200GbE MAC controller with an integrated dual-channel 100GbE SFI transceiver.

Features

• Dual-port pluggable media interface, which is compatible with a QSFP56/QSFP28 optical transceiver or a copper direct-attach cable.
• Industry's most secure PCIe adapter solution leveraging Broadcom's BroadSAFE® technology
• Multi-Host Support: Dual-Host x8 mode.
• Fully compliant with the SFF-8402 standard.
• x16 PCI Express 4.0 compliant.
• SR-IOV with up to 1k virtual functions (VFs).
• Function-Level Reset (FLR) support.
• TruFlow™ flow processing engine.
• Virtual Network Termination-VXLAN, NVGRE, Geneve, GRE encap/decap.
• vSwitch Acceleration.
• Tunnel-aware stateless offloads.
• DCB support -
