Broadcom Dual-Port 10 Gb/s Ethernet PCI Express 3.0 x8 OCP 3.0 SFF Network Adapter - PCI

Broadcom Dual-Port 10 Gb/s Ethernet PCI Express 3.0 x8 OCP 3.0 SFF Network Adapter - PCI Express 3.0 x8 - 2 Port(s) - Optical Fiber - 10GBase-X - Plug-in Card

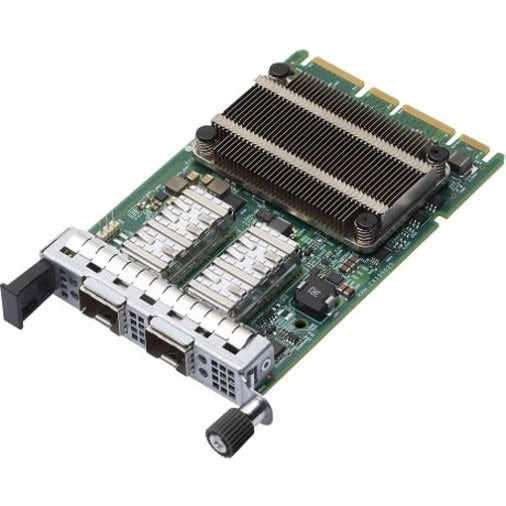

The Broadcom® BCM957412N4120C is a dual-port 10 Gb/s PCI Express 3.0 x8 network adapter designed to the Open Compute Project (OCP) 3.0 Design Specification in small form factor with two SFP+ network connectors. The adapter supports SFP+ optical modules and copper directattach cables. The network adapter uses the Broadcom BCM57412 25GbE MAC controller with an integrated dual-channel 10GbE SFI transceiver.

Features

• Dual-port pluggable media interface, which can connect to a 10G SFP+ optical transceiver or a copper directattach cable.
• Fully compliant with the SFF-8402 standard.
• x8 PCI Express 3.0 compliant.
• SR-IOV with up to 128 virtual functions (VFs).
• Function-Level Reset (FLR) support.
• TruFlow™ flow processing engine.
• Virtual Network Termination-VXLAN, NVGRE, Geneve, GRE encap/decap.
• vSwitch Acceleration.
• Tunnel-aware stateless offloads.
• DCB support - PFC, ETS, QCN, DCBx.
• RDMA o
