Broadcom BCM957412M4123C - Network adapter - Mezzanine Card - 10 Gigabit SFP+ x 2
- Dual-port pluggable media interface, which may be equipped with a 10G SFP+ optical transceiver or with a copper direct-attach cable
- Fully compliant with the SFF-8402 standard
- X8 PCI Express 3.0 compliant
- SR-IOV with up to 128 virtual functions (VFs)
- Function-Level Reset (FLR) support
- TruFlow flow processing engine
- Virtual Network Termination - XVXLAN, NVGRE, Geneve, GRE encap/decap
- Switch acceleration
- MCTP over SMBus
- PCIe-based UART and KCS
- Jumbo frames up to 9 KB
- Advanced Congestion Avoidance
- Multiqueue, NetQueue, and VMQ
- IPv4 and IPv6 offloads
- TCP, UDP, and IP checksum offloads
- Large Send Offload (LSO)
- Large Receive Offload (LRO)
- TCP Segmentation Offload (TSO)
- Receive-side Scaling (RSS)
- Transmit-side Scaling (TSS)
- VLAN insertion/removal
- Interrupt coalescing
- Network boot - XPXE, UEFI
- ISCSI boot
- Wake-on-LAN (WOL)
- MSI and MSI.X
- Conforms to the OCP Mezzanine card design specification v2.0 Type 1

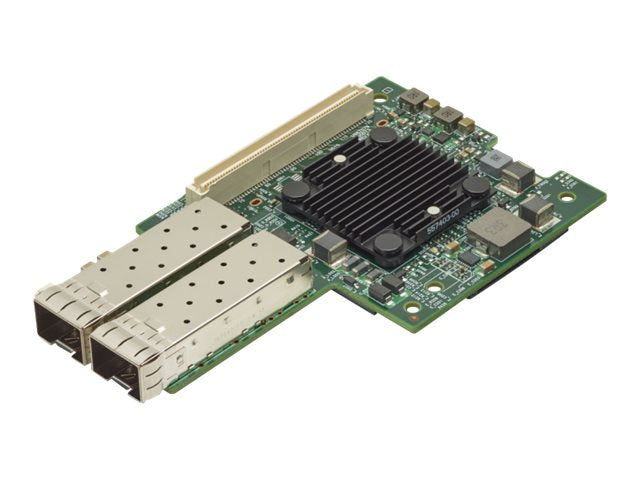

The Broadcom BCM957412M4123C is a dual-port 10 Gb/s PCI Express 3.0 x8 Mezzanine Card designed to the Open Compute Project (OCP) Mezzanine Card specification with a SFP+ network connector. The adapter is designed to the OCP Mezzanine v2.0 specification as a Type 1 adapter, with the board outline adhering to a form factor called out in v0.5 of the specification. The adapter supports SFP+ optical modules and copper direct-attach cables. The card uses the Broadcom BCM57412 MAC controller with an integrated dual-channel 10GbE SFI transceiver.
-
Enhanced connectivity
Equipped with two 10Gb Ethernet SFP+ ports, this network adapter ensures high-speed connectivity and efficient network traffic handling, making it ideal for demanding data environments.
-
Advanced networking features
Features such as Large Send Offload (LSO), TCP Segmentation Offload (TSO), and Receive Side Scaling (RSS) enhance data flow efficiency, reduce CPU load, and improve overall network performance.
-
Robust virtualization support
With support for Single Root I/O Virtualization (SR-IOV), NetQueue, and various network virtualization protocols like GENEVE and NVGRE, this adapter offers flexible and scalable virtual network infrastructure solutions.
-
Efficient network management
Capabilities like Wake On LAN (WOL) and iSCSI boot facilitate efficient management and maintenance of networked systems, ensuring minimal downtime and streamlined operations.
-
Reliable performance under varying conditions
Designed to operate within a wide humidity range of 5 - 95% (non-condensing), this network adapter maintains reliable performance across diverse environmental conditions.
