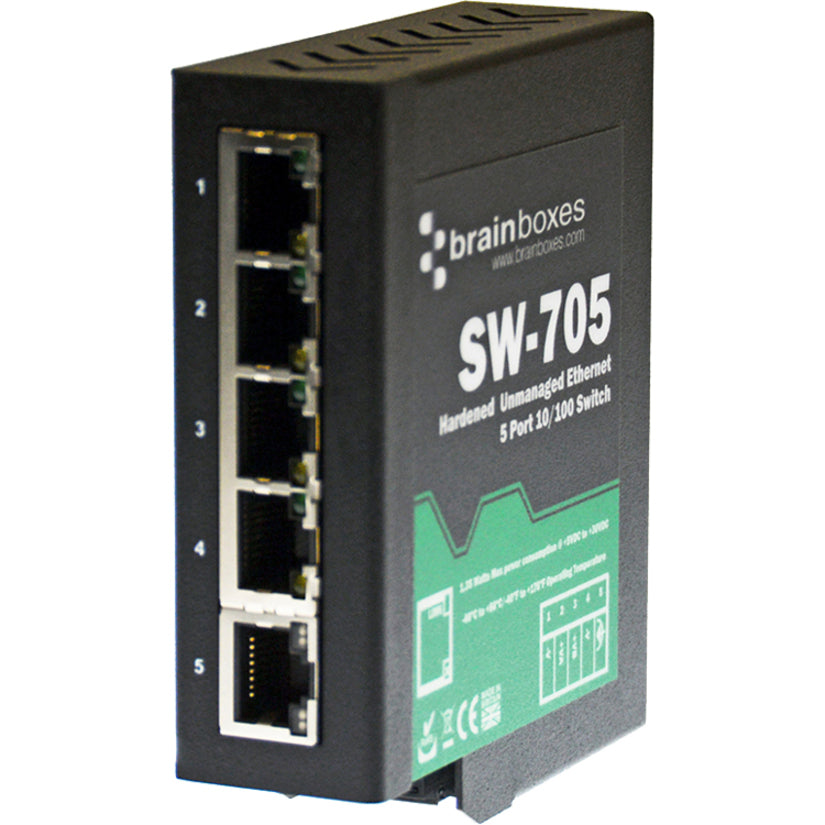

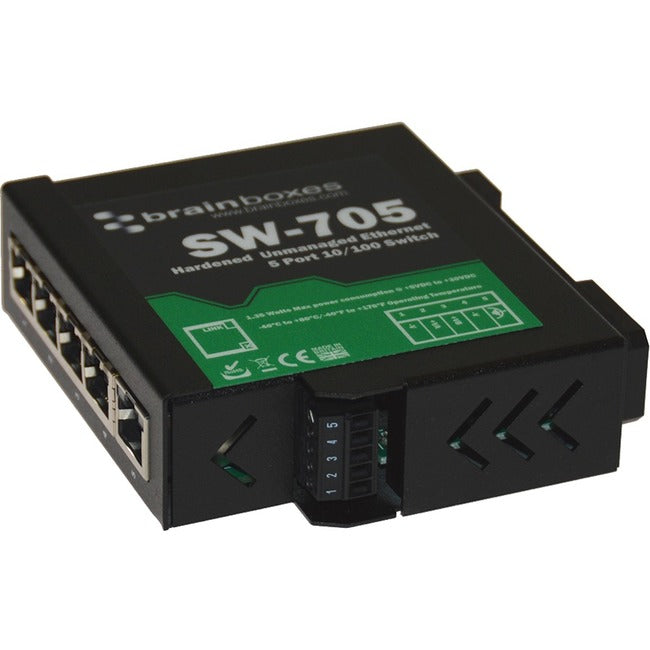

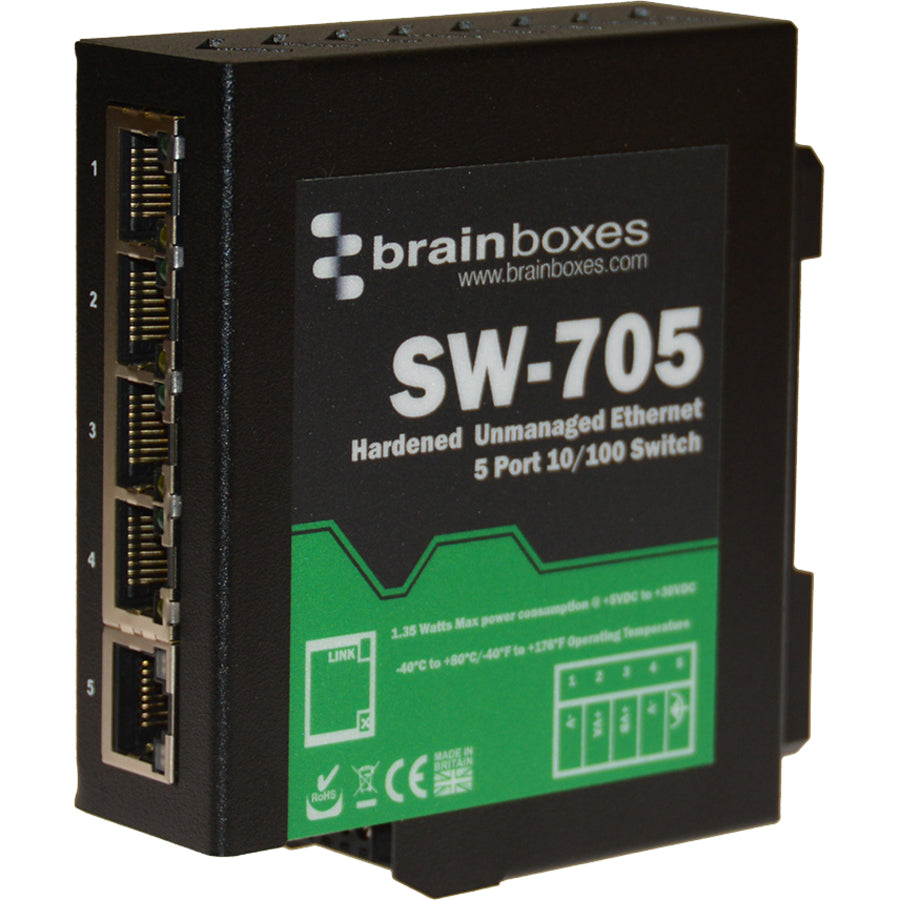

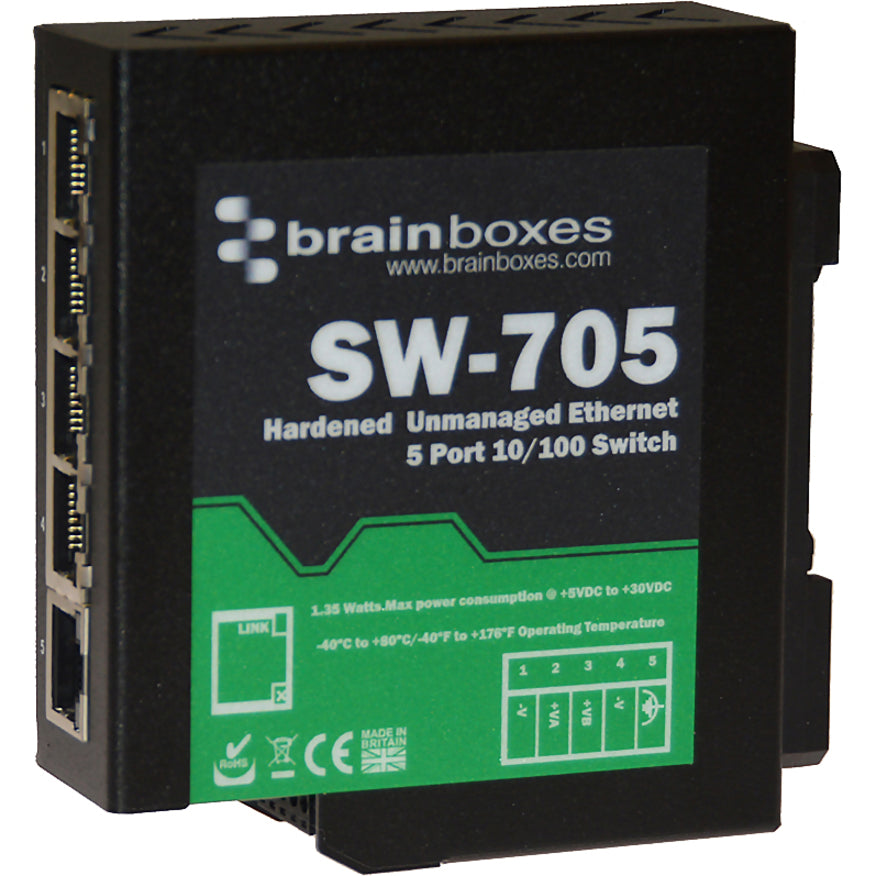

Brainboxes Industrial Hardened Ethernet 5 Port Switch DIN Rail Mountable
Industrial Compact Ethernet 5 Port unmanaged switch. Galvanically Isolated Ethernet Ports capable of 10/100 Mbps. Industrial temperature range of -40°C to +80°C (-40°F to 176°F) and dual input redundant power supply with wide voltage range means it can be powered from USB or on the 24V factory floor. Only 22.5mm wide and 94mm deep. Power terminal is removable with numbered pins for easy wiring. Power consumption is optimised based on the status of the link device. No software required. Ideal for factory floor, in vehicle and marine applications.
- 5 Port Hardened Ethernet Switch

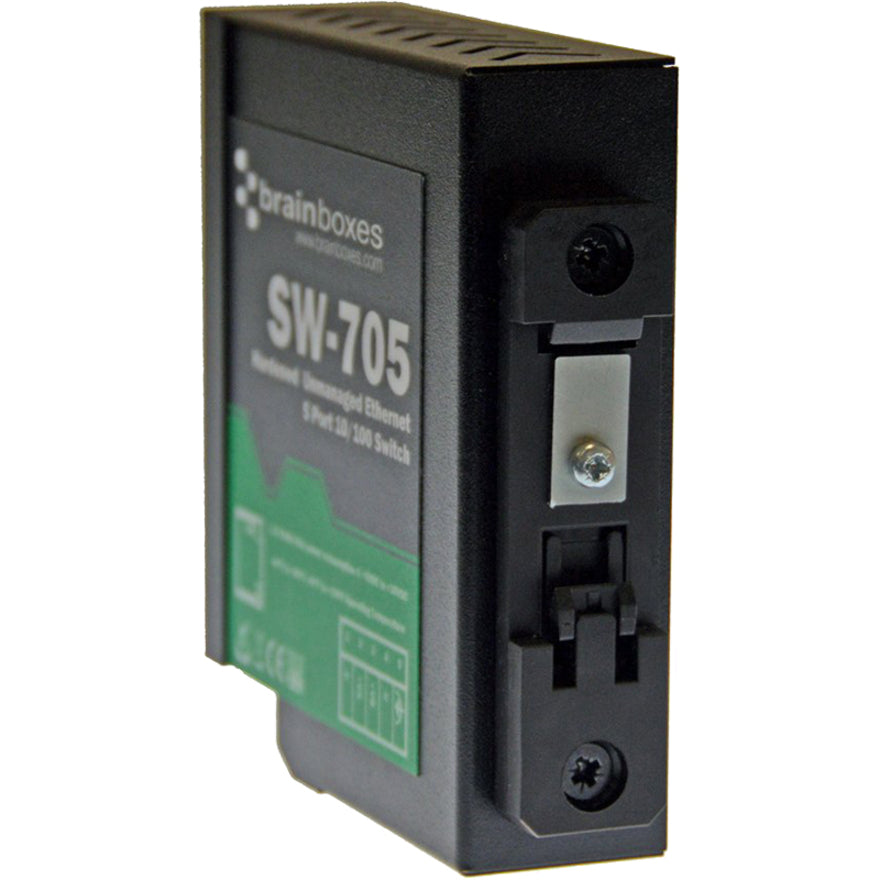

- Integrated DIN Rail Mount with grounding
- Redundant dual power inputs: +5V to +30V DC
- Industrial operating temp range -40°C to +80°C / -40°F to +176°F
Product Type: Ethernet Switch
Environmentally Friendly: Yes
Environmental Certification: WEEE
Taa Compliant: Yes
Country Of Origin: United Kingdom
Brand Name: Brainboxes
Form Factor: DIN Rail Mountable
Manufacturer: Brainboxes Limited
Product Model: SW-705
Product Name: Industrial Hardened Ethernet 5 Port Switch DIN Rail Mountable
Manufacturer Part Number: SW-705
Manufacturer Website Address: http://www.brainboxes.com
Package Contents:
- Industrial Hardened Ethernet 5 Port Switch DIN Rail Mountable
- Quick Start Guide
Limited Warranty: Lifetime
Weight (Approximate): 9.52 oz
