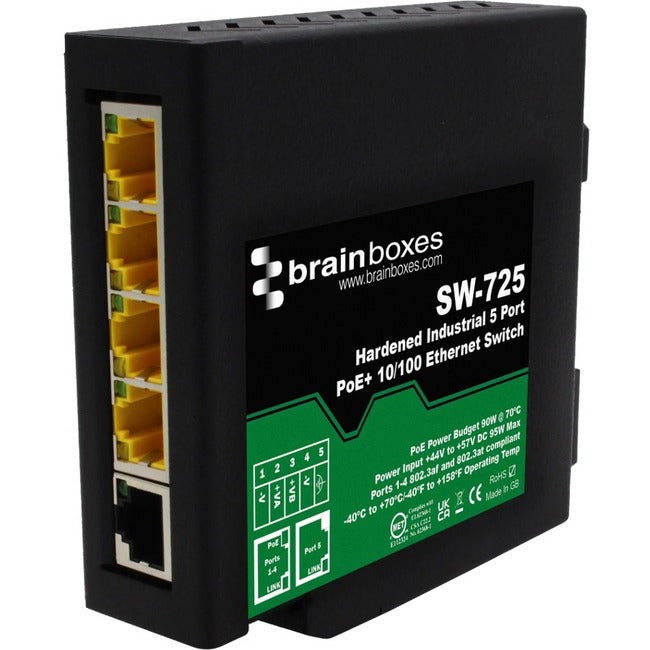

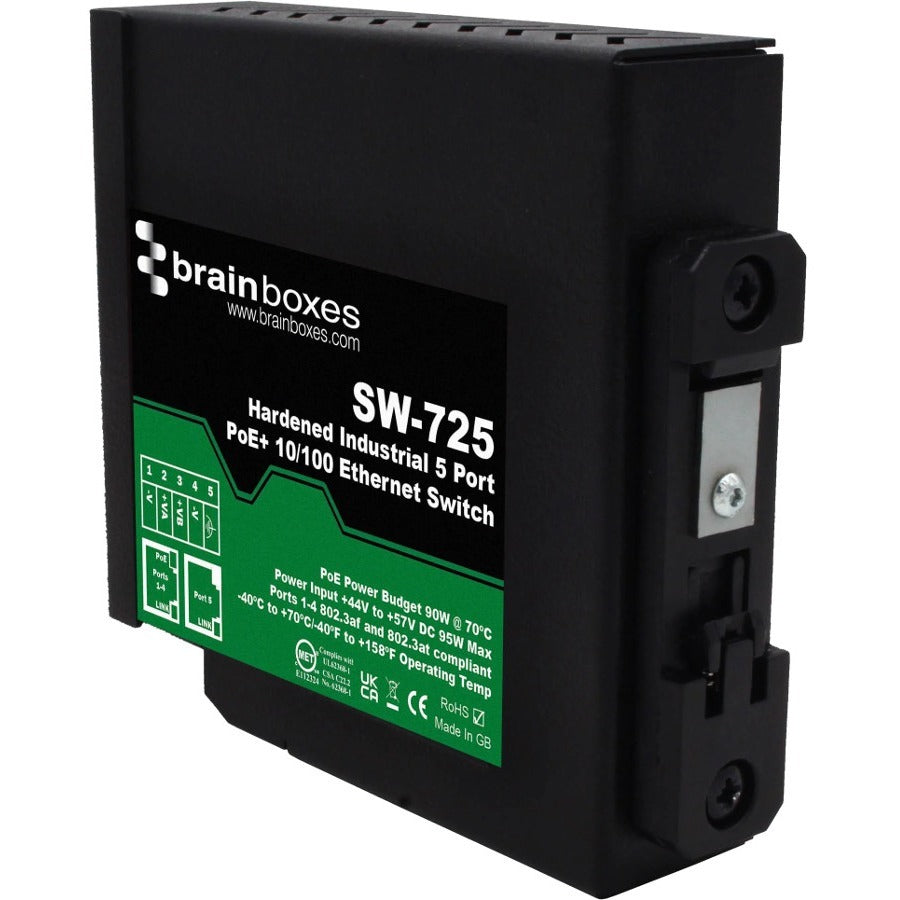

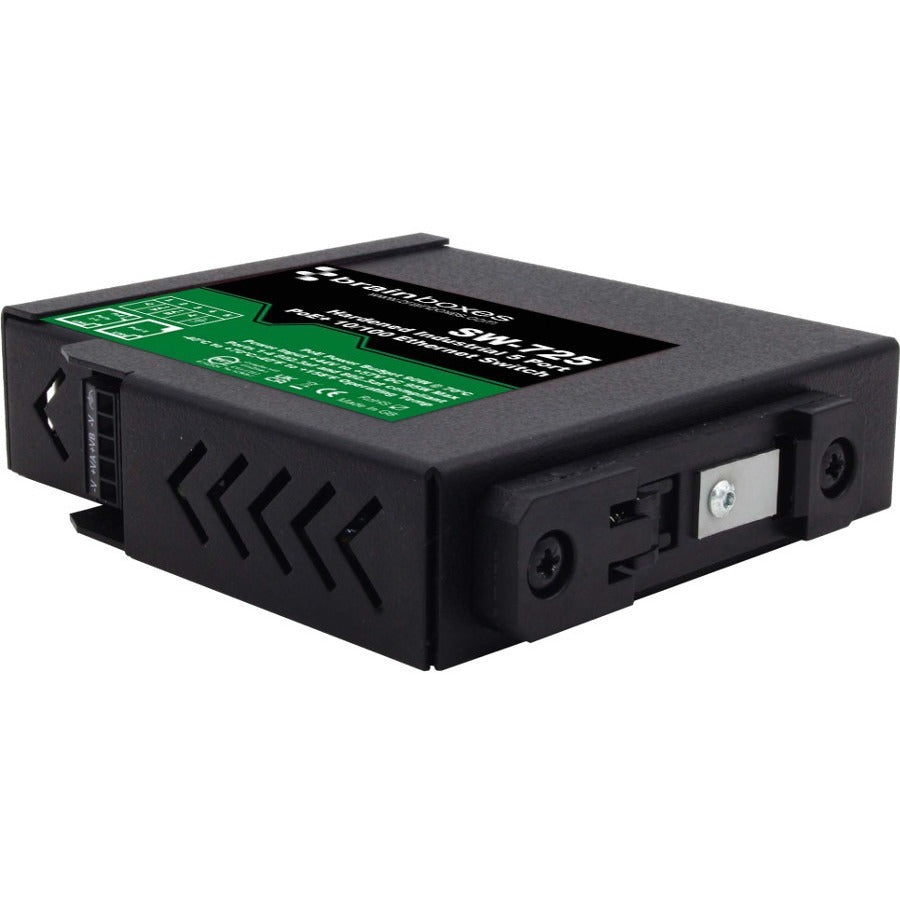

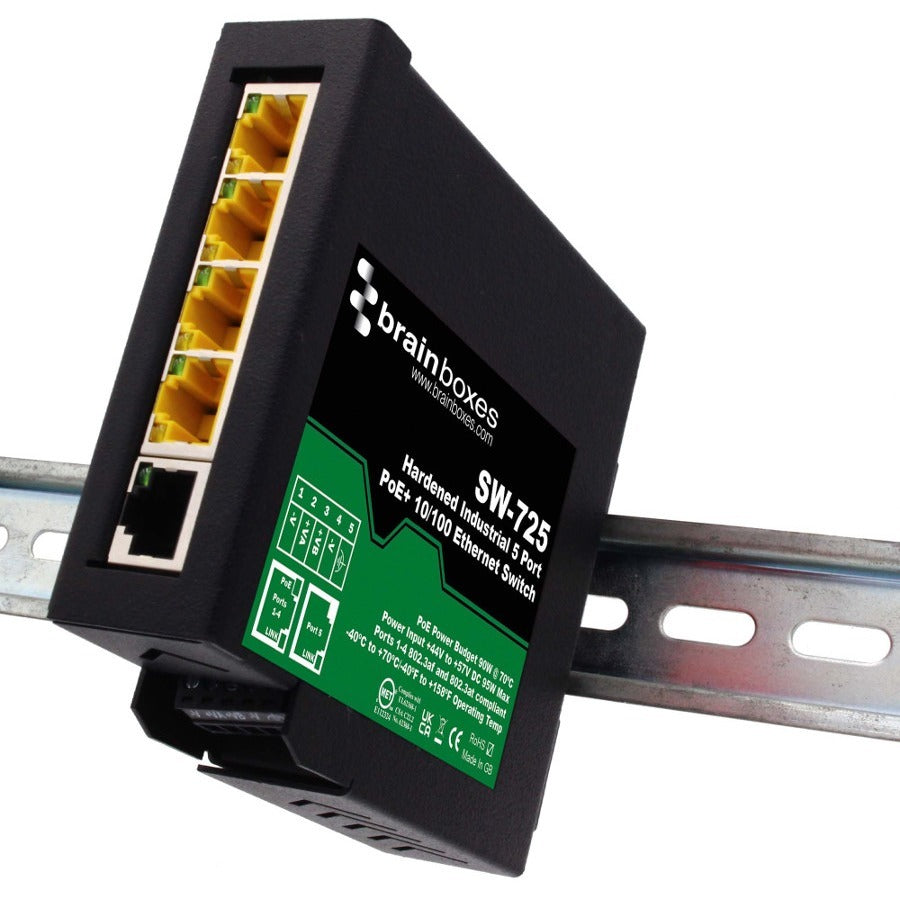

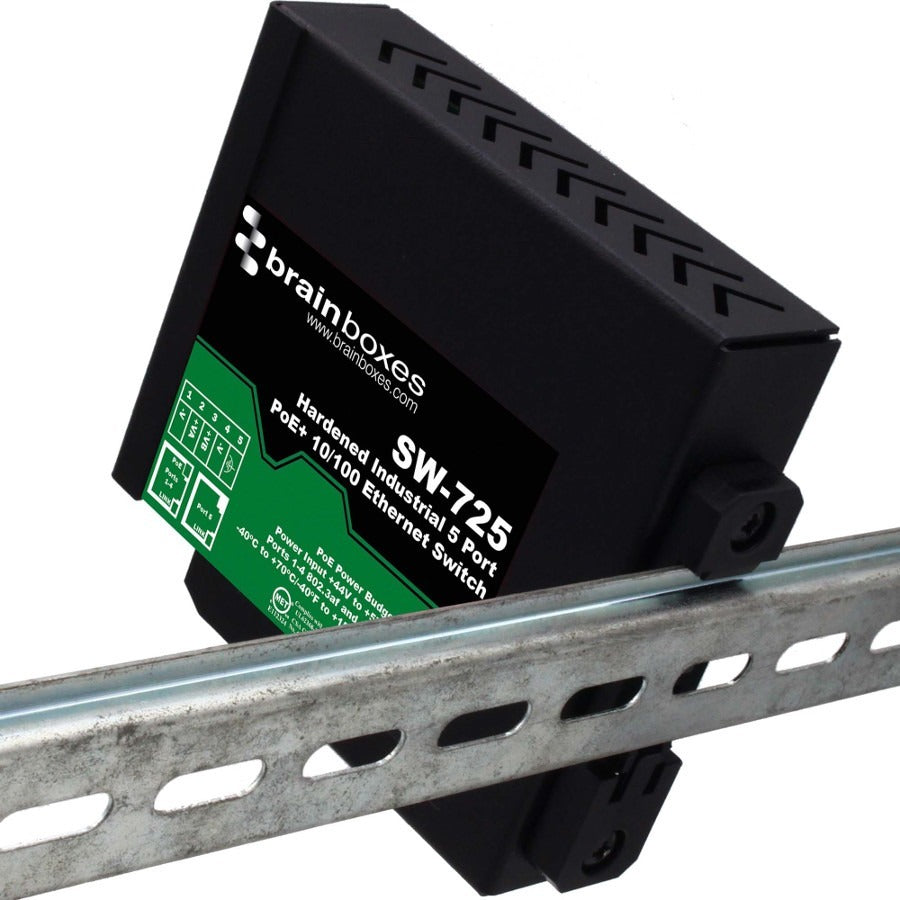

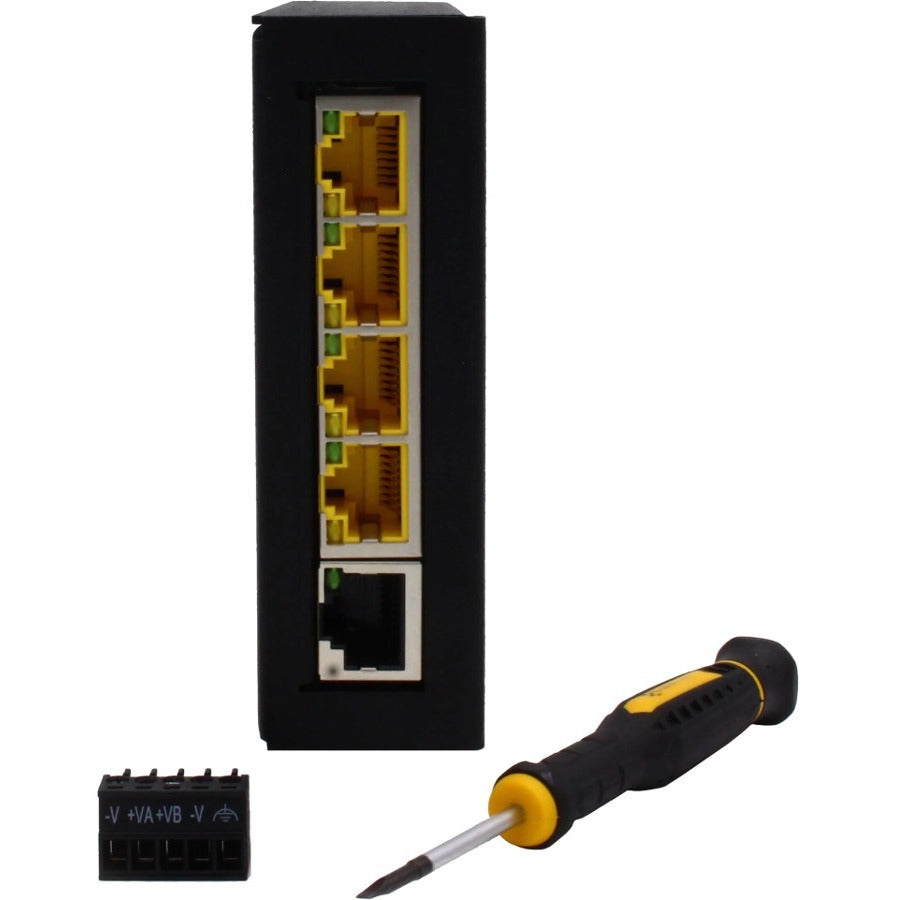

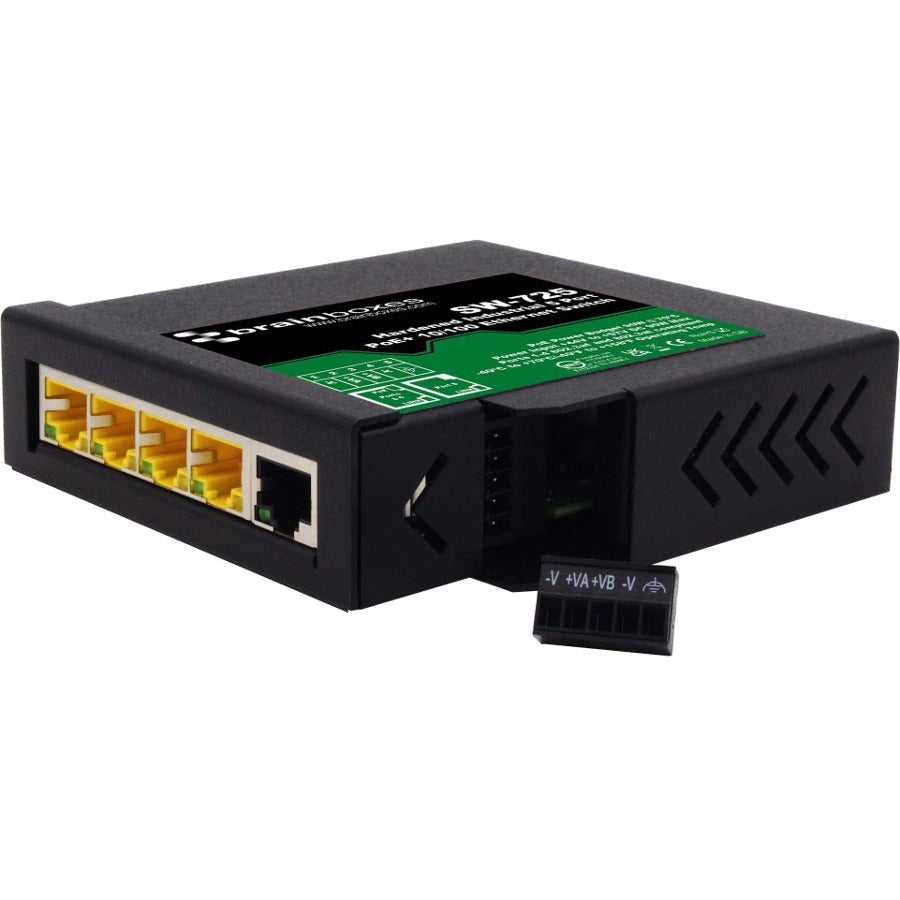

Brainboxes Hardened Industrial 5 Port PoE+ 10/100 Ethernet Switch
Hardened Industrial 5 Port PoE+ Fast Ethernet device. Galvanically Isolated Ethernet Ports capable of 10/100 Mbps. Industrial temperature range of -40°C to +70°C (-40°F to 176°F) and dual input redundant power supply with wide voltage range means it can be powered from USB or on the 24V factory floor. Power terminal is removable with numbered pins for easy wiring. Power consumption is optimised based on the status of the link device. No software required. Send power and data to remote CCTV cameras, PoE telephones, PoE Wifi access points, NVRs, and more
- Allows power and data to be combined on the same Ethernet cable
- Ports 1-4 PoE+ capable
- Ports 1-4 IEEE 802.3af/at compliant: deliver up to 30W to each port (backwards compatible)
- PoE Power Budget: 90W @ 70C between all 4 PoE ports simultaneously
- Redundant dual power inputs: +44V to +57V DC
- Industrial operating temp range -40°C to +70°C / -40°F to +176°F
Product Type: Ethernet Switch
Environmentally Friendly: Yes
Environmental Certification: WEEE
Taa Compliant: Yes
Country Of Origin: Great Britain
Brand Name: Brainboxes
Form Factor: Compact
Manufacturer: Brainboxes Limited
Product Model: SW-725
Product Name: Hardened Industrial 5 Port PoE+ 10/100 Ethernet Switch
Manufacturer Part Number: SW-725
Manufacturer Website Address: http://www.brainboxes.com
Package Contents:
- Hardened Industrial 5 Port PoE+ 10/100 Ethernet Switch
- Quick Start Guide
Limited Warranty: Lifetime
Weight (Approximate): 15.66 oz
