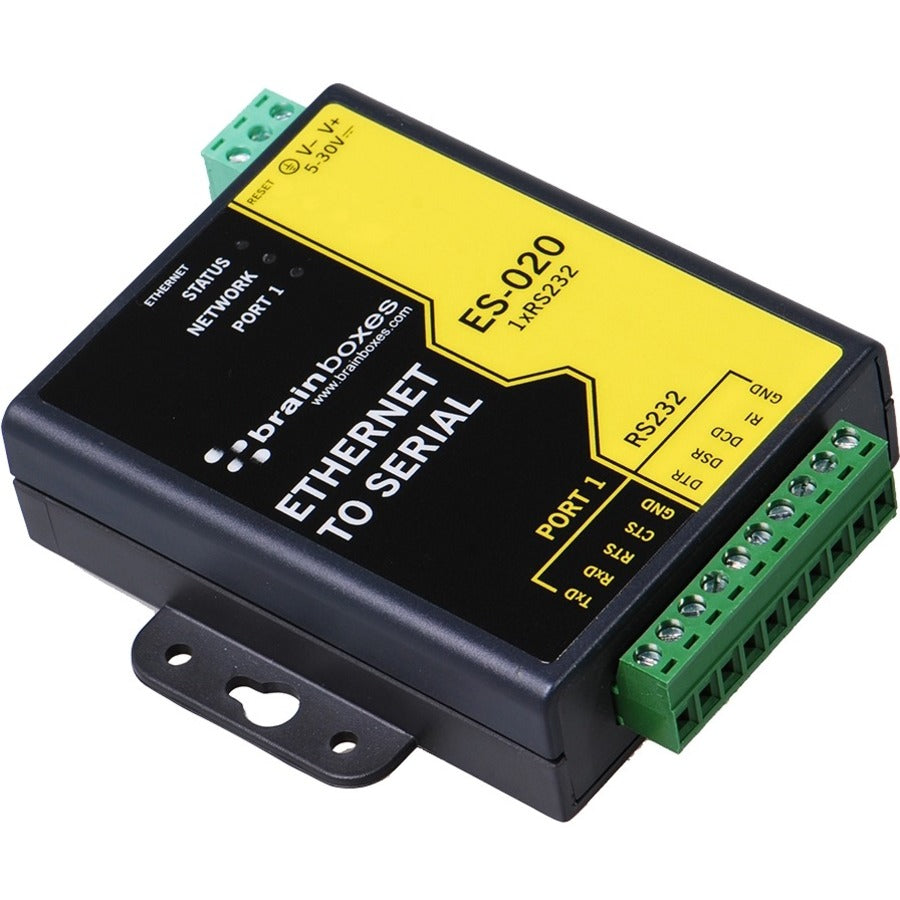

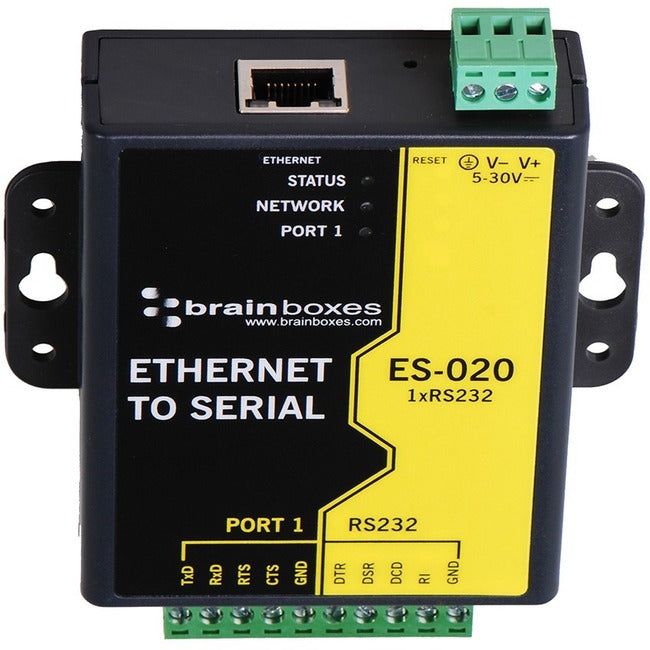

Brainboxes Ethernet 1 Port RS232 10xScrew Terminals
Ethernet 1 Port RS232 10xScrew Terminals Blocks perfect for industrial applications. Data transfer rates up to 1,000,000 Baud (1 MegaBaud), coupled with 1Mbit/s line drivers deliver uncompromising performance. Baud rates can be standard values such as 9,600, 115,200, 230,000, 921,600 or user definable non standard values.
Our ES range provides simple instant networked serial ports. A web interface allows secure configuration and control of the serial ports over a local network or the internet using any browser. For Windows our in-house designed (32 bit and 64 bit) driver gives you local COM ports, retaining existing software applications and allowing you to connect across your network to remote devices just as if they were attached locally. You can access the device via TCP/IP sockets from any networked device like an Android tablet, PC or phone. Serial Port Tunneling (individually configurable) allows serial cable replacement over any distance, no software required. On Windows OS TCP/IP sockets are handled by the Winsock API, this will differ on other OSs. Suitable to be wired into existing power and network infrastructure or can be used with our PW-600 power supply .
- Removable Terminal Blocks for Easy Wiring
- Serial Port Tunnelling allows serial cable replacement, no software required
- Install Virtual Com ports, communicate over TCP or telnet or use the Software APIs for Visual Basic, C# and more
- Data rate from 110 to 1,000,000 baud (1 MegaBaud)
- Ethernet to Serial Device Server
- 1 Port RS-232 via screw terminal block
Product Type: Serial Adapter
Environmentally Friendly: Yes
Environmental Certification: RoHS
Taa Compliant: Yes
Country Of Origin: United Kingdom
Brand Name: Brainboxes
Form Factor: DIN Rail Mountable
Manufacturer: Brainboxes Limited
Product Model: ES-020
Product Name: Ethernet 1 Port RS232 10xScrew Terminals
Manufacturer Part Number: ES-020
Manufacturer Website Address: http://www.brainboxes.com
Package Contents:
- Ethernet 1 Port RS232 10xScrew Terminals
- Installation CD Including Manual
- Microsoft Signed Drivers & Utilities
Limited Warranty: Lifetime
Weight (Approximate): 4.16 oz
