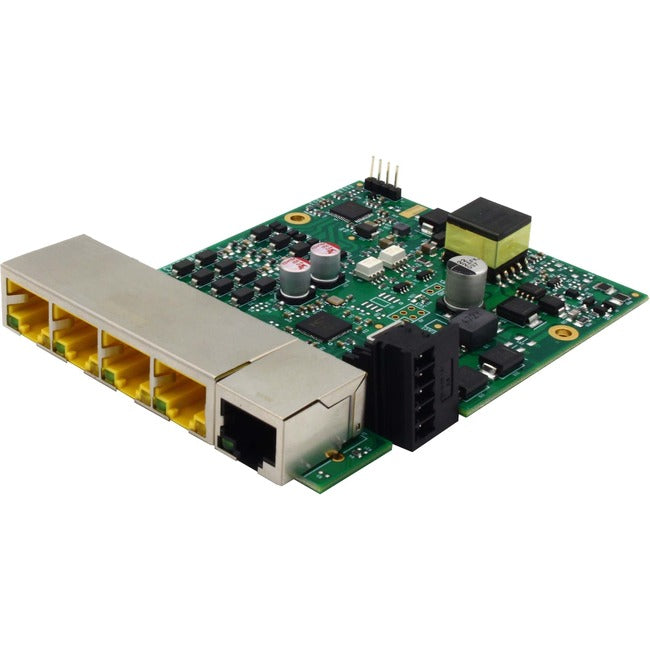

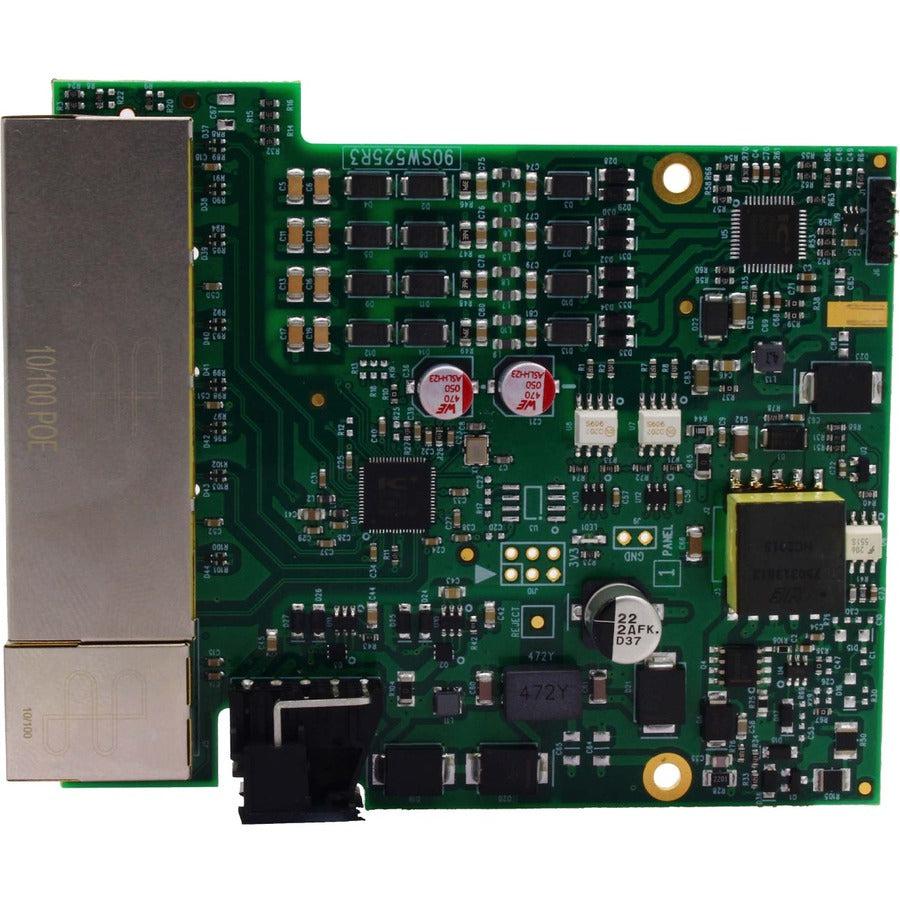

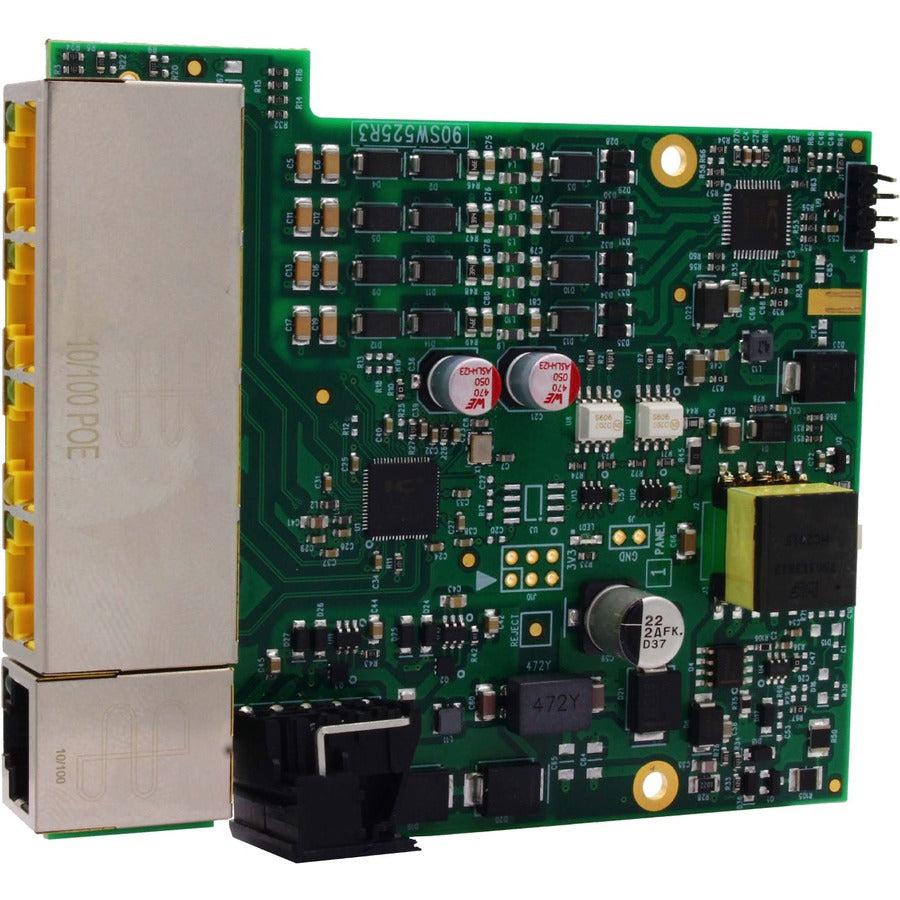

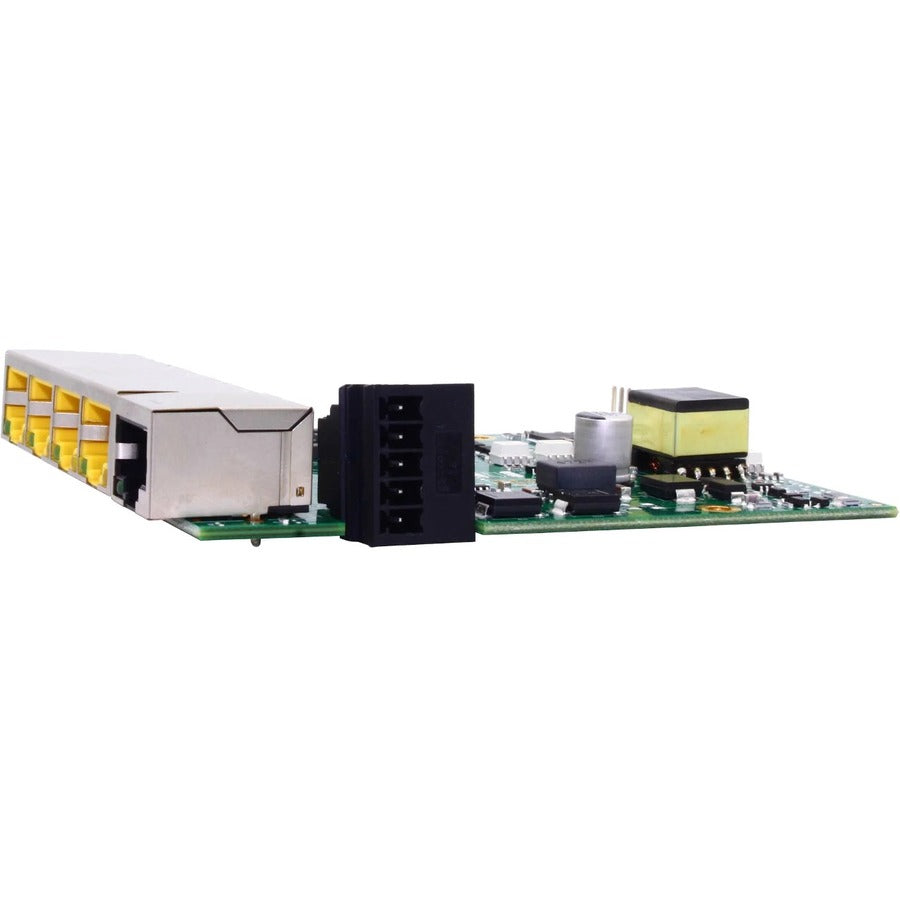

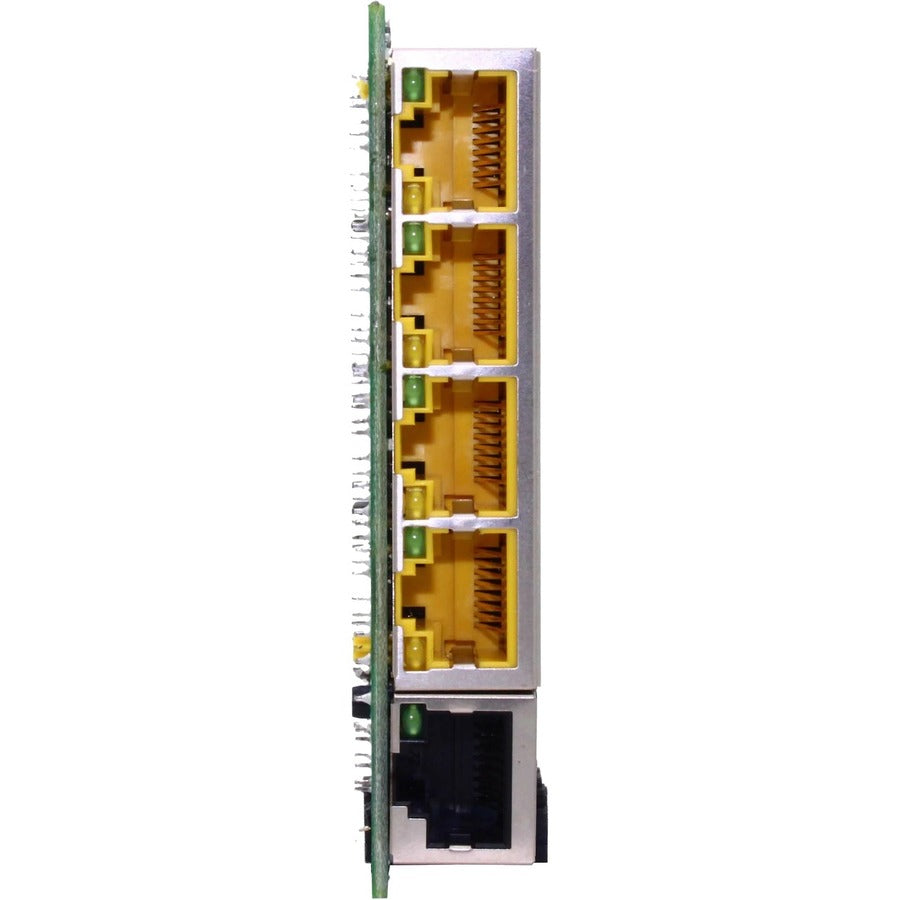

This SW-125 embedded industrial ethernet switch is perfect for manufacturing facilities, outdoor installations, and harsh industrial environments requiring reliable 5 port PoE+ switch connectivity. Our ruggedized industrial network switch delivers:
-
PoE+ power delivery up to 30W per port for IP cameras and wireless access points
-
Industrial-grade durability withstanding extreme temperatures and vibration
-
Embedded design optimized for space-constrained automation applications
-
Fast ethernet performance ensuring reliable 10/100 Mbps connectivity in demanding environments
Key Features
-
5 port PoE+ capability providing power and data over single cable
-
Industrial temperature range supporting -40°C to +75°C operation
-
DIN rail mounting for easy installation in control cabinets
-
Redundant power inputs ensuring maximum uptime reliability
-
Auto-negotiation support for seamless device connectivity
-
Compact embedded form factor ideal for space-limited applications
Technical Specifications
| Manufacturer |
Industrial Networking Solutions |
| Model Number |
SW-125 |
| Type |
5-Port PoE+ Industrial Embedded Ethernet Switch |
| Port Configuration |
5 x 10/100 Base-TX RJ45 ports |
| PoE Standard |
IEEE 802.3at PoE+ (up to 30W per port) |
| Total PoE Budget |
120W maximum power delivery |
| Switching Capacity |
1 Gbps wire-speed forwarding |
| Operating Temperature |
-40°C to +75°C (-40°F to +167°F) |
| Power Input |
24-48V DC with redundant inputs |
| Mounting |
DIN rail and panel mount options |
| Certifications |
FCC, CE, UL, IP30 rated enclosure |
| Dimensions |
4.7" x 2.4" x 1.2" (120 x 60 x 30mm) |
| Target Applications |
Factory Automation, Outdoor Surveillance, Transportation |
| Compatible Devices |
IP Cameras, Wireless APs, Industrial Controllers, HMI Panels |
Frequently Asked Questions
Q: What devices can I power with this PoE+ industrial switch?
A: This 5 port PoE+ switch can power IP cameras, wireless access points, VoIP phones, and industrial sensors requiring up to 30W per port, making it perfect for industrial ethernet switch applications where device power and data transmission are critical.
Q: How does this switch handle harsh industrial environments?
A: The SW-125 embedded industrial ethernet switch is designed for extreme conditions with -40°C to +75°C operating range, vibration resistance, and IP30-rated enclosure, ensuring reliable operation in factories, outdoor installations, and transportation systems.
Q: What mounting options are available for this switch?
A: This industrial network switch supports both DIN rail mounting for control cabinet installation and panel mounting for embedded applications, providing flexible deployment options in space-constrained industrial environments.
Q: Can I use this switch for outdoor surveillance systems?
A: Yes, the rugged design and PoE+ power delivery make it ideal for powering outdoor IP cameras and wireless equipment. The wide operating temperature range and industrial certifications ensure reliable performance in outdoor surveillance applications.
SW-125 embedded industrial 5 port PoE+ ethernet switch with 30W per port power delivery for harsh industrial environments and automation applications.
