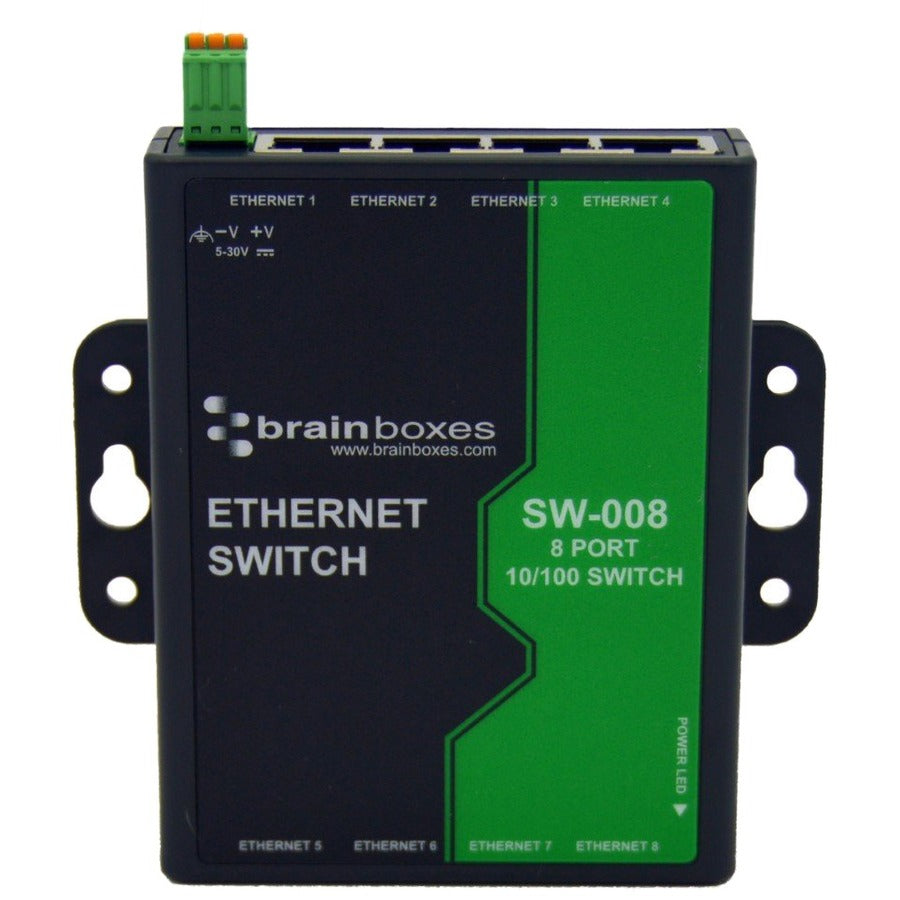

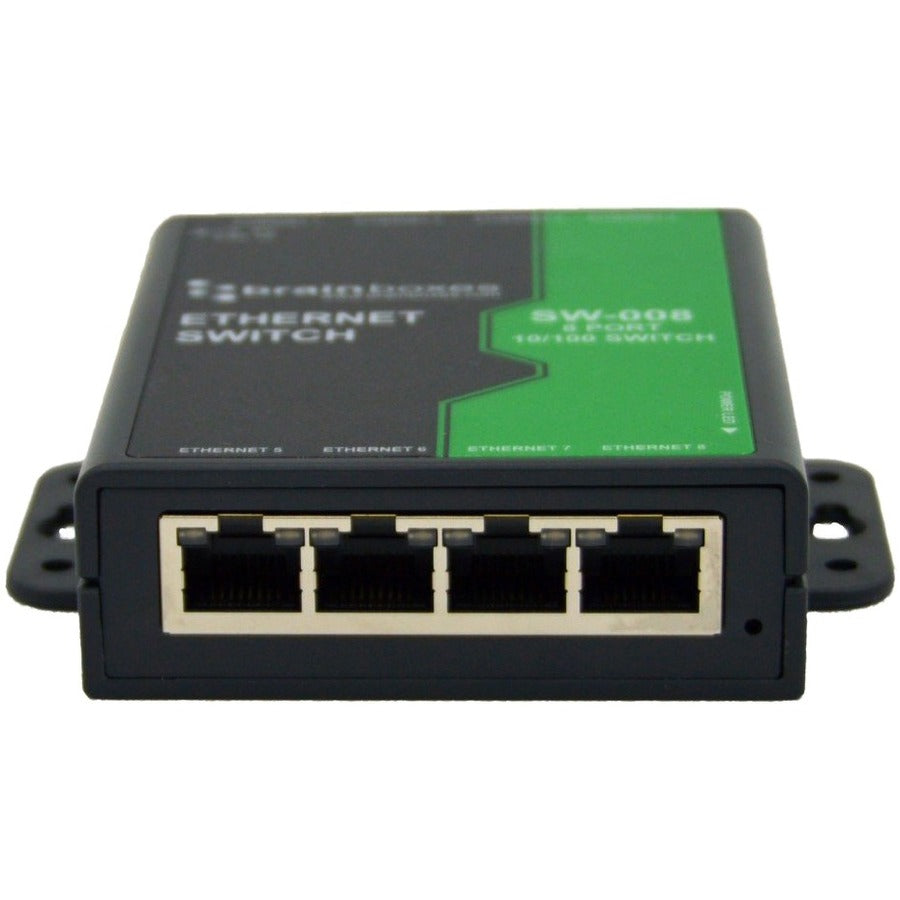

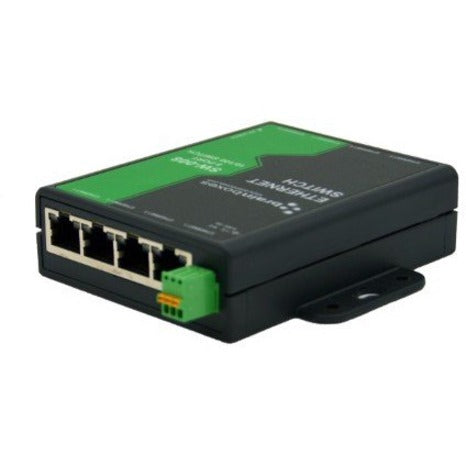

The Brainboxes SW-008 8 Port 10/100 Ethernet Switch is perfect for industrial environments needing reliable network connectivity. It provides durable, unmanaged network capabilities suitable for factories, manufacturing sites, and harsh commercial settings.
-
8 x 10/100 Mbps Fast Ethernet Ports: Provides vital network connections in light industrial settings.
-
Rugged Design: Built to withstand the rigors of industrial applications with a compact, wall-mountable form factor.
-
Wide Operating Temperature: Designed to operate in extreme temperature conditions, from -40°C to 85°C.
-
Plug-and-Play: Easy setup with no configuration required, making it ideal for straightforward network extensions.
Technical Specifications
| Manufacturer |
Brainboxes Limited |
| Model Number |
SW-008 |
| Type |
8-Port Unmanaged Ethernet Switch |
| Port Configuration |
8 x 10/100 Mbps RJ45 ports |
| Operating Temperature |
-40°C to 85°C (-40°F to 185°F) |
| Power Supply |
+5V to +30V DC |
| Mounting Options |
Wall Mountable |
Frequently Asked Questions
Q: What makes this switch suitable for industrial environments?
A: Its robust design can handle extreme temperatures, vibrations, and electromagnetic interference typically found in industrial settings.
Q: How do I install the SW-008 switch?

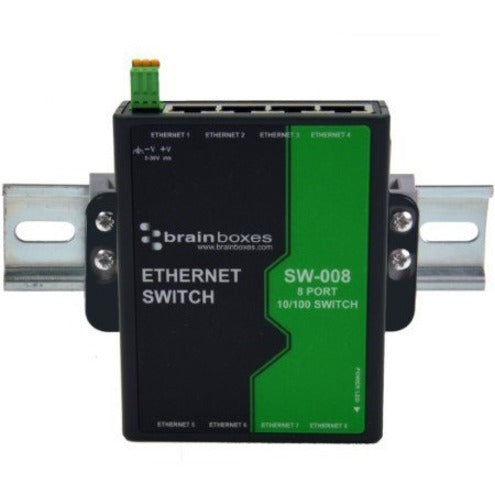

A: The switch is wall-mountable and supports direct mounts or optional DIN rail attachments for easy installation in space-constrained areas.
Q: Does the switch need any configuration?
A: No configuration is required; it functions as a plug-and-play device.
Q: What kind of devices can connect to it?
A: Supports any standard Ethernet device, including industrial PCs, PLCs, and IP cameras.
