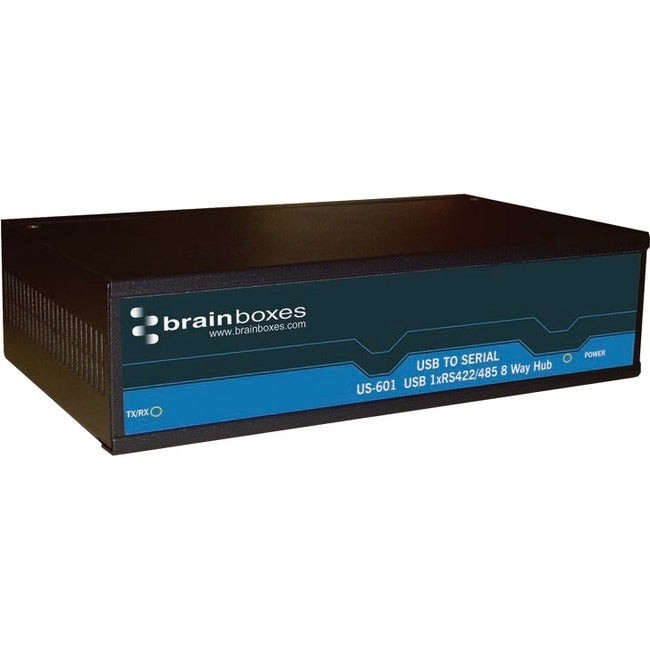

Brainboxes 8 Port RS422/485 USB to Serial Multi Drop Hub
USB to Serial multi drop hub providing 1 RS422/485 serial port multiplexed 8 times for multibus applications. Data transfer rates up to 921,600 baud rates and the 128 byte deep transmit and 256 byte receive FIFOS, coupled with 1Mbit line drivers deliver uncompromising performance on your laptop/PC. Drivers for Windows 32 bit and 64 bit Operating Systems including Windows XP, Server 2003, Vista, Server 2008, Windows 7 and Windows 8 with additional drivers for both Mac OS X and Linux.
- OptionaDIN raimounting kits
- Lifetime Warranty and Lifetime Support
- Supplied with rubber feet for office environment
- Drivers for alpopular operating systems
- Supplied with USB cable
- Rugged metaenclosure (IP30 rated)
- Up to 921,600 Baud

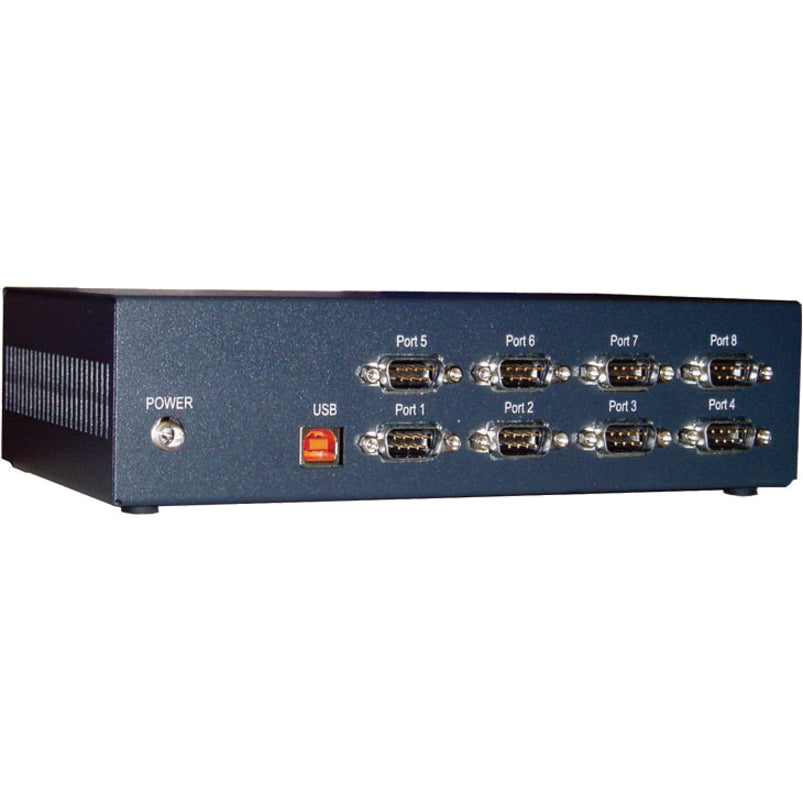

- 8xDB9 Connector 9 Pin Male USB Type B High Retention connector (9 Pin Male)
- 1 Multi Drop to 8 port RS422/485
- 128 Byte Tx and 256 Byte Rx FIFOs
Product Type: Serial Hub
Environmentally Friendly: Yes
Environmental Certification: WEEE
Taa Compliant: Yes
Country Of Origin: United Kingdom
Brand Name: Brainboxes
Form Factor: External
Manufacturer: Brainboxes Limited
Product Name: 8 Port RS422/485 USB to Serial Multi Drop Hub
Manufacturer Part Number: US-601
Manufacturer Website Address: http://www.brainboxes.com
Package Contents:
- 8 Port RS422/485 USB to Serial Multi Drop Hub
- Installation CD Including Manual
- Microsoft Signed Drivers & Utilities
Limited Warranty: Lifetime
Weight (Approximate): 1.70 lb
