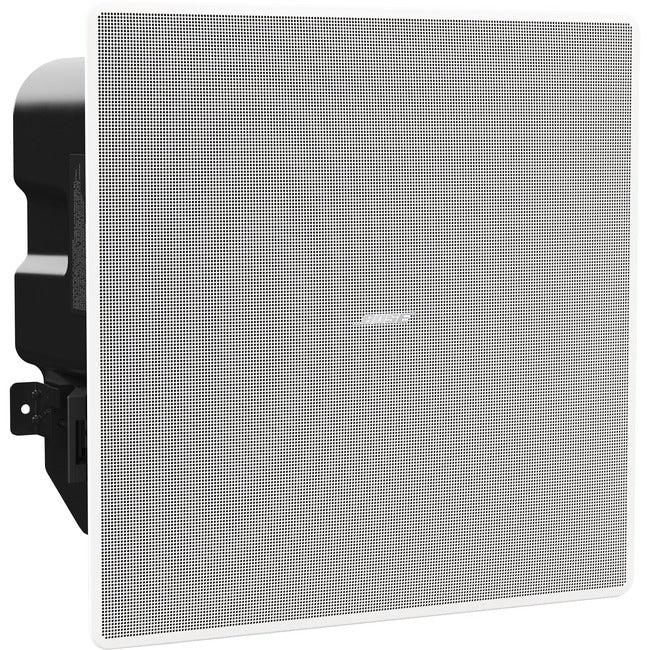

Bose Professional EdgeMax EM180 2-way In-ceiling, Surface Mount Speaker - 125 W RMS

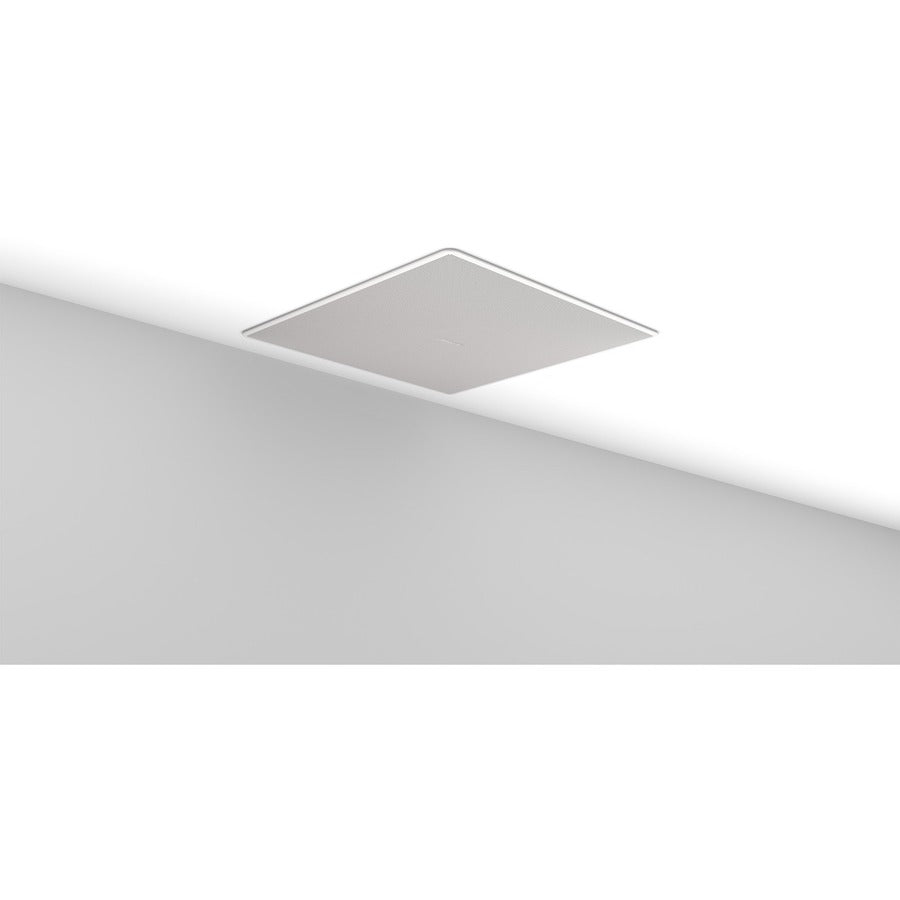

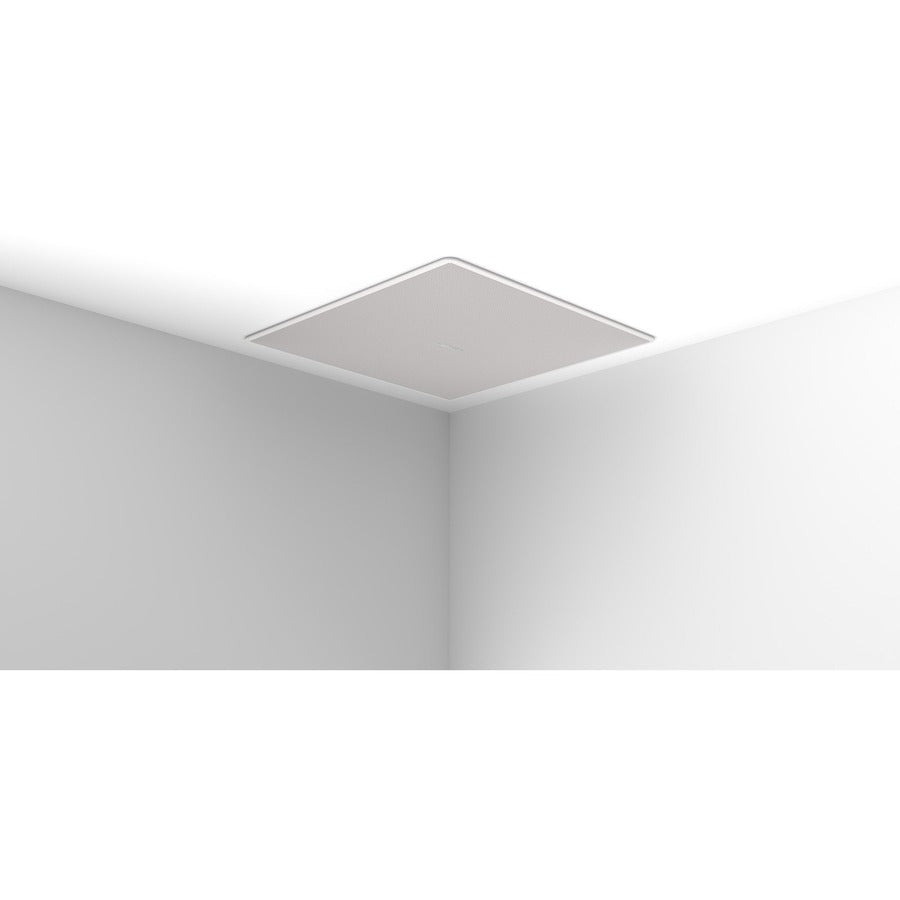

Bose Professional EdgeMax in-ceiling premium loudspeakers feature proprietary Bose PhaseGuide technology with high-frequency compression drivers to create a new category that combines the room-filling coverage patterns typical of larger surface-mount speakers with the architect-preferred aesthetics of in-ceiling models. Designed to mount near wall-ceiling boundaries, EdgeMax loudspeakers provide improved audio quality and coverage, while reducing the number of required units, compared to conventional dome-tweeter ceiling speakers.
FEATURES
- PhaseGuide technology - provides unique asymmetrical vertical pattern for room-filling coverage when mounting near wall-ceiling boundary
- Provides improved room visual appearance - for demanding interior designs by eliminating center-of-ceiling or wall-mounted loudspeakers
- Nominal 180° horizontal coverage - designed for in-ceiling mounting along wall coverage zones
- High-frequency compression driver - for best-in-class audio quality with superior frequency response and coverage consistency versus typical dome tweeters

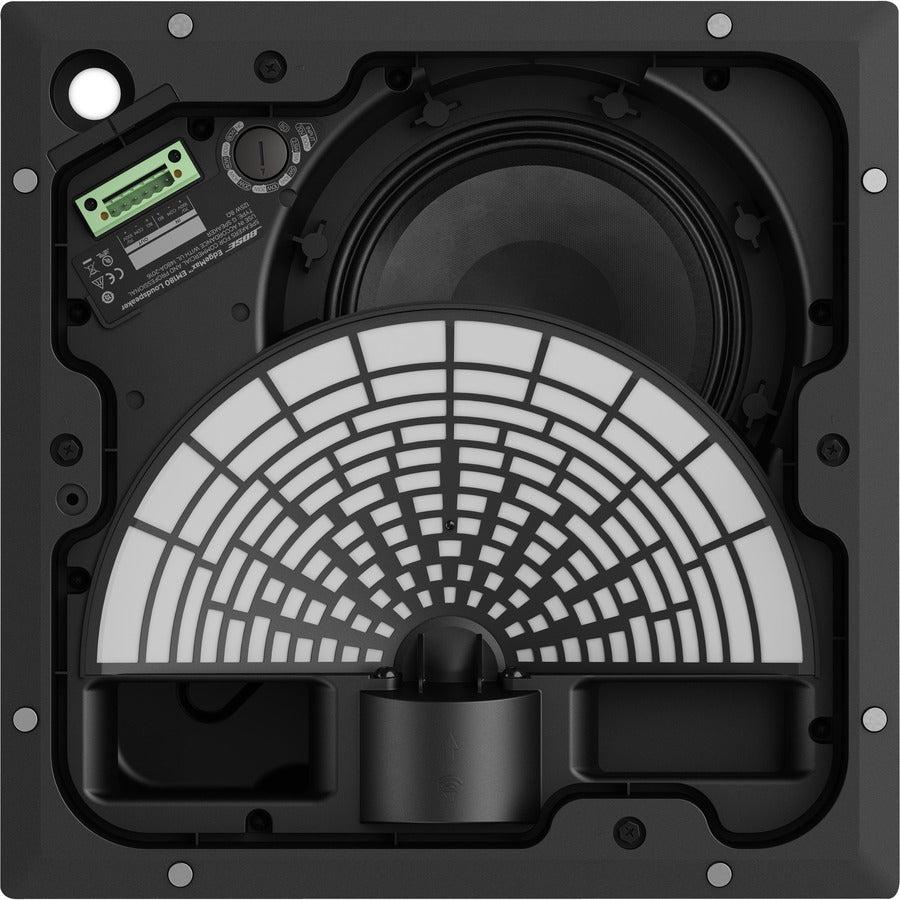

- 8-inch woofer - with wall-boundary loading provides extended bass impact
- 2-way passive crossover with 70/100V transformer
- New auto-hold, spring-loaded mounting arms - for fast, easy installs
- Magnetically attached grill - for quick access to wiring and tap settings
- UL1480A listing - for air-handling (plenum) space installation
Applications
- Retail stores
- Restaurants and bars
- Concourse
- Transportation facilities
- Resorts and hospitality venues
- Houses of worship
- Conferencing
- The 2-way In-ceiling speakers provide the finest sound coverage
- Uproar the bass as loud as you want with 125 W RMS power without any blaring
- Listen to deep lows and euphoric highs with a frequency range of sound from 45 Hz-20 kHz
- 8 Ohm impedance extracts maximum power so you will get more output from your speakers
Product Type: Speaker
Brand Name: Bose Professional
Form Factor: Surface Mount
Manufacturer: Bose Corporation
Product Model: EM180
Product Name: EdgeMax EM180 Loudspeaker
Product Line: EdgeMax
Application/Usage: Conferencing
Manufacturer Part Number: 777189-0220
Manufacturer Website Address: http://www.bose.com
