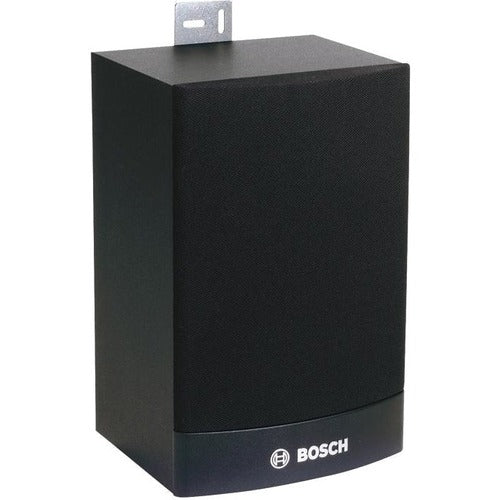

Bosch LB1-UW06-FD Indoor Wall Mountable, Ceiling Mountable Speaker - 6 W RMS - Black
The LB1-UW06-Fx is a 6 W, general-purpose, costeffective loudspeaker for indoor use. Two brackets, fixed to the rear panel, are provided for quick and easy mounting on a wall or ceiling. The cabinet is available in the colors black or white.
Functions
The robust, solid MDF (Medium Density Fiber board) enclosures are covered with a durable, easy-to-clean vinyl in white or black. The ABS fronts are covered with fine woven cloth in matching color.
Certifications and approvals
All Bosch loudspeakers are designed to withstand operating at their rated power for 100 hours in accordance with IEC 268-5 Power Handling Capacity (PHC) standards. Bosch has also developed the Simulated Acoustical Feedback Exposure (SAFE) test to demonstrate that they can withstand two times their rated power for short durations. This ensures extra reliability under extreme conditions, leading to higher customer satisfaction, longer operating life, and much less chance of failure or performance deterioration.
Installation/configuration notes
Two keyhole brackets at one side of the cabinet are provided for easy and quick wall mounting. The other side of the cabinet is provided with two rubber feet for absorbing unwanted vibrations and secure mounting.
A convenient easy-to-use, 4-pole push-in terminal block is present on the side for on-site wiring. This terminal block has provision for power tapping on the 100-volt, matching transformer in the cabinet. It allows selection of nominal full-power, half-power, or quarterpower radiation (in 3 dB steps).
- Complies with international installation and safety regulations
- Finished in white or black
- MDF construction
- Mounting brackets for wall or ceiling mounting
- Good speech intelligibility and background music reproduction
Product Type: Speaker
Speaker Installation: Indoor
Product Color: Black
Brand Name: Bosch
Form Factor: Ceiling Mountable
Manufacturer: The Bosch Group
Product Model: LB1-UW06-FD
Product Name: LB1-UW06-FD Unidirectional Cabinet Loudspeaker
Application/Usage: Music
Manufacturer Part Number: LB1-UW06-FD1
Manufacturer Website Address: http://www.bosch.com
Weight (Approximate): 3.31 lb
