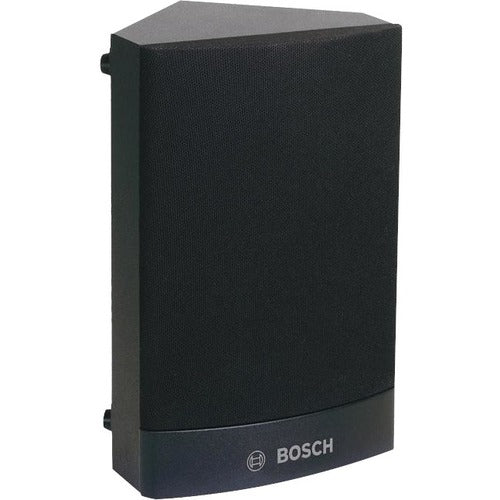

Bosch LB1-CW06-D Indoor Wall Mountable, Ceiling Mountable Speaker - 6 W RMS - Black
The LB1-CW06-x is a 6 W, general-purpose cost,- effective loudspeaker for indoor use. Two brackets with keyholes, fixed on one side provide quick and easy mounting in corners between two walls, or between a wall and ceiling. The cabinet is available in black or white.
Functions
The robust, solid MDF (Medium Density Fiber board) enclosures are covered with a durable, easy-to-clean vinyl in white or black. The ABS fronts are covered with fine woven cloth in matching color.
The cabinet shapes allow installation in corners between walls, and between wall and ceiling.
Certifications and approvals
All Bosch loudspeakers are designed to withstand operating at their rated power for 100 hours in accordance with IEC 268-5 Power Handling Capacity (PHC) standards. Bosch has also developed the Simulated Acoustical Feedback Exposure (SAFE) test to demonstrate that they can withstand two times their rated power for short durations. This ensures extra reliability under extreme conditions, leading to higher customer satisfaction, longer operating life, and much less chance of failure or performance deterioration.
Installation/configuration notes
Two keyhole brackets at one side of the cabinet are provided for easy and quick wall mounting. The other side of the cabinet is provided with two rubber feet for absorbing unwanted vibrations and secure mounting.
A convenient easy-to-use, 4-pole push-in terminal block is present on the side for on-site wiring. This terminal block has provision for power tapping on the 100-volt, matching transformer in the cabinet. It allows selection of nominal full-power, half-power, or quarterpower radiation (in 3 dB steps).
- Good speech intelligibility and background music reproduction
- Special shape for mounting in corners
- Available in black or white
- MDF construction
- Compliancy with international installation and safety regulation
Product Type: Speaker
Speaker Installation: Indoor
Product Color: Black
Brand Name: Bosch
Form Factor: Ceiling Mountable
Manufacturer: The Bosch Group
Product Model: LB1-CW06-D
Product Name: LB1-CW06-D Corner Cabinet Loudspeaker
Application/Usage: Music
Manufacturer Part Number: LB1-CW06-D1
Manufacturer Website Address: http://www.bosch.com
Weight (Approximate): 1.76 lb
