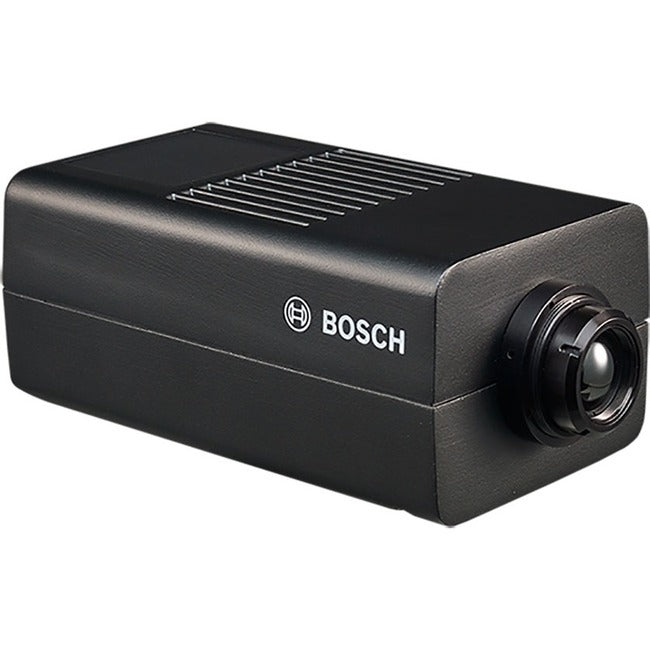

Bosch DINION IP NBT-9000-F19QSM Network Camera - 1 Pack
The DINION IP thermal 9000 RM camera, based on an un-cooled vanadium oxide microbolometer, is a contactless tool to measure surface temperature at short range. The camera has a QVGA sensor with a frame rate of 9 FPS.
The camera is part of the indoor system for surface temperature measurement. Key components of the system include the camera, an embedded VIDEOJET decoder 7000 computer with thermal data analytics (VJD-7513), a keyboard (KBD-UXF), and a specific firmware license.
The system combines thermal temperature detection with the market-leading Intelligent Video Analytics from Bosch. Quick, on-site calibration and temperature threshold setup enables the system for alarming in cases where the surface temperature of an object or of human skin is warmer than the configured threshold. The system can monitor historical temperature data continuously for deviations, and will then estimate the new threshold in order to mitigate the environmental influences.
Temperature detection
The camera has a high-sensitivity thermal sensor which obtains long-wavelength infrared (LWIR) from target objects. LWIR lets users detect target temperature quickly, without physical contact.
Intelligent Video Analytics
The integrated video analytics is both robust and intelligent. The Intelligence-at-the-Edge concept now delivers even more powerful features:
- Simple calibration
- False alarm reduction
- Extended range identification
The video analytics reliably detects, tracks, and analyzes objects, and alerts you when predefined alarms are triggered. A smart set of alarm rules, together with object filters and tracking modes, makes complex tasks easy.
Calibration is quick and easy - just enter the height of the camera. The internal gyro/accelerometer sensor provides the rest of the information to precisely calibrate the video analytics.
Product Type: Network Camera
Environmentally Friendly: Yes
Environmental Certification: WEEE
Indoor/Outdoor: Indoor
Product Color: Black
Country Of Origin: Portugal
Product Series: 9000
Brand Name: Bosch
Length: 6.2"
Manufacturer: The Bosch Group
Product Model: NBT-9000-F19QSM
Product Name: NBT-9000-F19QSM FIXED THERMAL <9Hz QVGA 19mm Radiometric
Product Line: DINION IP
Manufacturer Part Number: NBT-9000-F19QSM
Manufacturer Website Address: http://www.bosch.com
Packaged Quantity: 1
Package Contents:
- DINION IP Thermal 9000 RM
- 1 x Audio connector
- 1 x Alarm connector
- 1 x Quick installation guide
Weight (Approximate): 1.34 lb
