Description

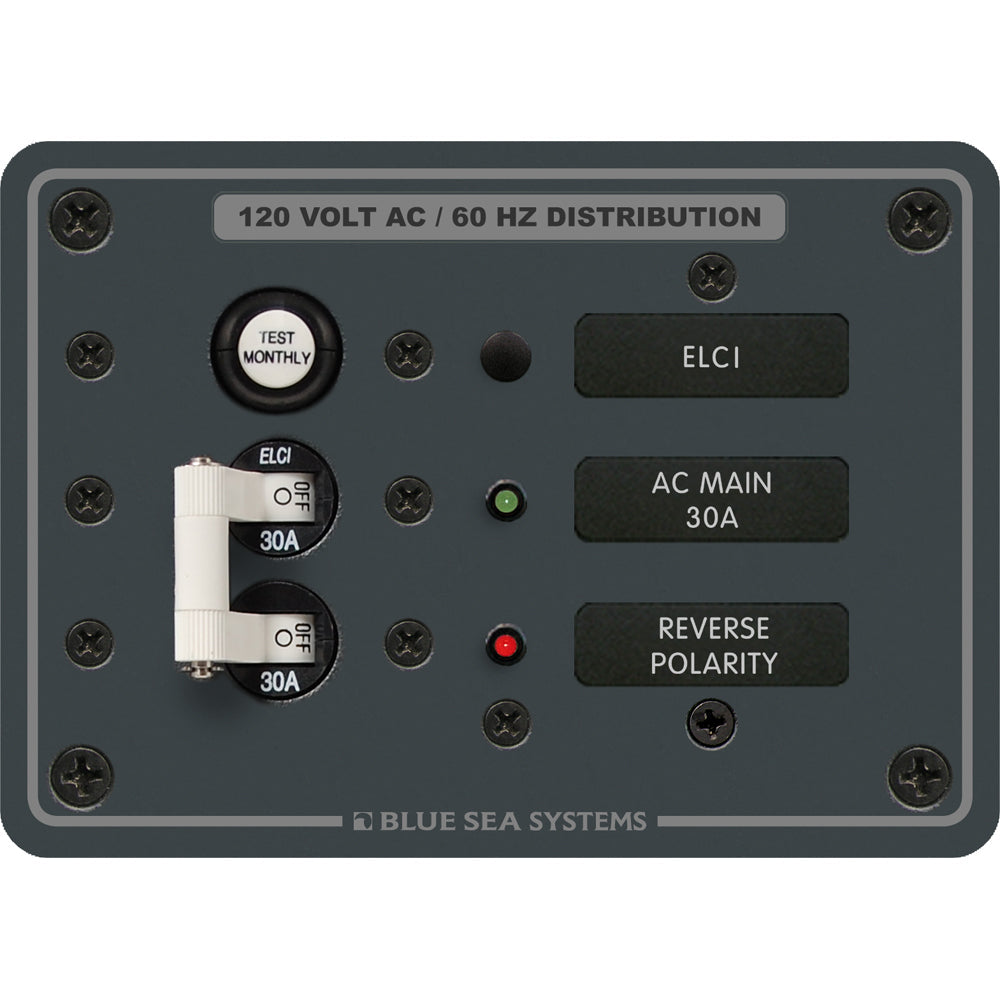

ELCI Main 30A Double Pole
Specifications
Nominal Voltage 120V AC
Leakage Trip Amps 30mA
Height 5.25" (133.35mm)
Width 3.75" (95.25mm)
Depth 3.50" (88.9mm)
Weight 2.25lb (1.02kg)
- One 30A AC ELCI Main Residual Current Circuit Breaker, leakage trip amperate - 30 mA
- ELCI provides overcurrent and leakage protection per ABYC E-11 for whole boat shore power protection
- Red " Reverse Polarity" LED
- All circuit label positions are backlit
- "ON" indicating LEDs
Specifications
Nominal Voltage 120V AC
Leakage Trip Amps 30mA
Height 5.25" (133.35mm)
Width 3.75" (95.25mm)
Depth 3.50" (88.9mm)
Weight 2.25lb (1.02kg)
WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
| Quick Guide | View (pdf) |
| Owners Manual | View (pdf) |
General Information
| Manufacturer | Blue Sea Systems |
|---|---|
| Manufacturer Part Number | 8100 |
| Product Type | Electrical | Electrical Panels |
| UPC | 632085081003 |
