Description

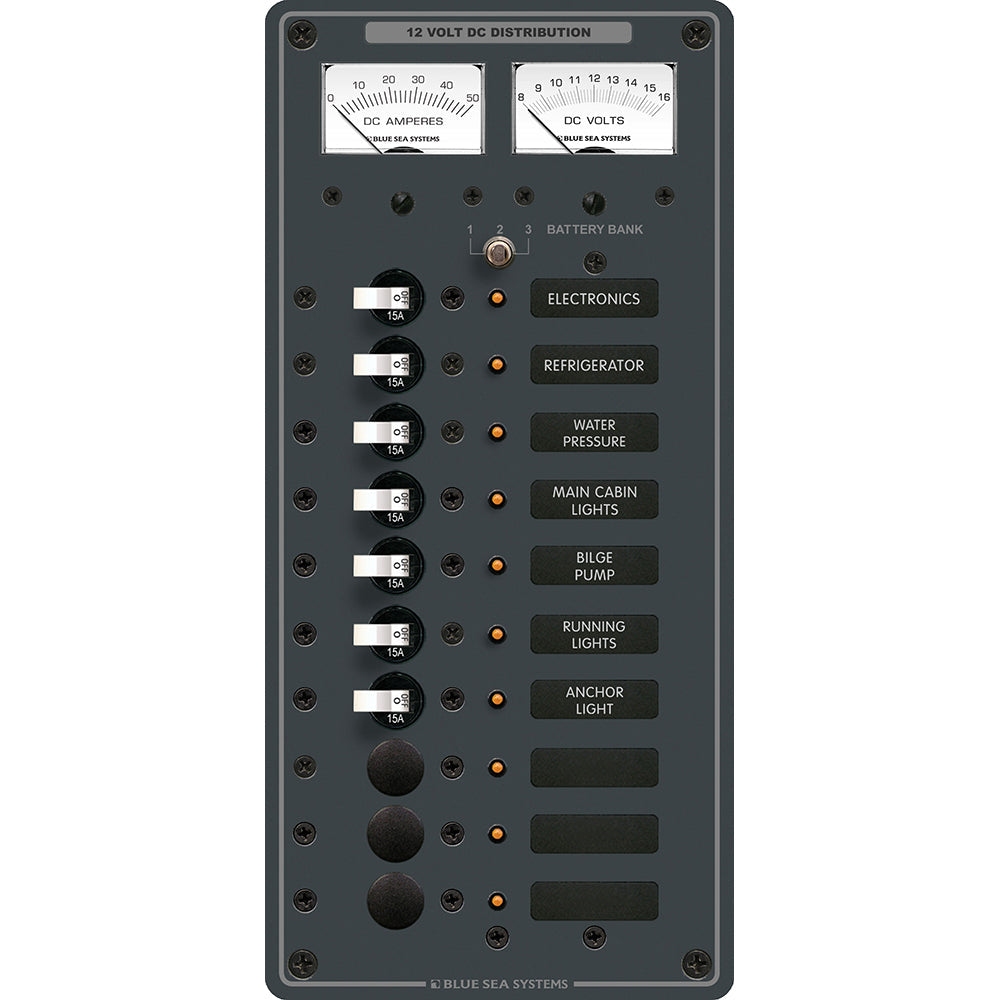

8082 DC 10 Position Toggle Branch Circuit Breaker Panel
Features:
- All positive, negative and grounding buses installed, fully pre-wired
- Includes set of 30 common DC labels
- Label backlighting pre-installed
- All LEDs installed
- Detailed installation instructions and cutout template
- 8028, 8-16 Volt DC Micro Voltmeter
- 8041, 0-50 Amp DC Micro Ammeter
- Owner upgradeable to 24 Volts DC with 8243, 10-32 Volt DC Micro Voltmeter
- 7 15A Single Pole circuit Breakers
Specifications:
- Positions: 10
- Nominal Voltage: 12v DC
- Maximum Amperage: 50A
- Height: 11.25"
- Width: 5.25"
- Depth: 2.5"
- Weight: 3.35 lbs
Included:
- (7) 7210 A-Series White Toggle Circuit Breaker - Single Pole 15A
- (1) 8030 Basic DC Panel Label Set - 30 Labels
- (1) 8028 DC Micro Voltmeter - 8 to 16V DC (Meter)
- (1) 8041 DC Micro Ammeter - 0 to 50A w/ Shunt (Meter)
WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
| Quick Guide | View (pdf) |
| Owners Manual | View (pdf) |
General Information
| Manufacturer | Blue Sea Systems |
|---|---|
| Manufacturer Part Number | 8082 |
| Product Type | Electrical | Electrical Panels |
| UPC | 632085080822 |
