Description

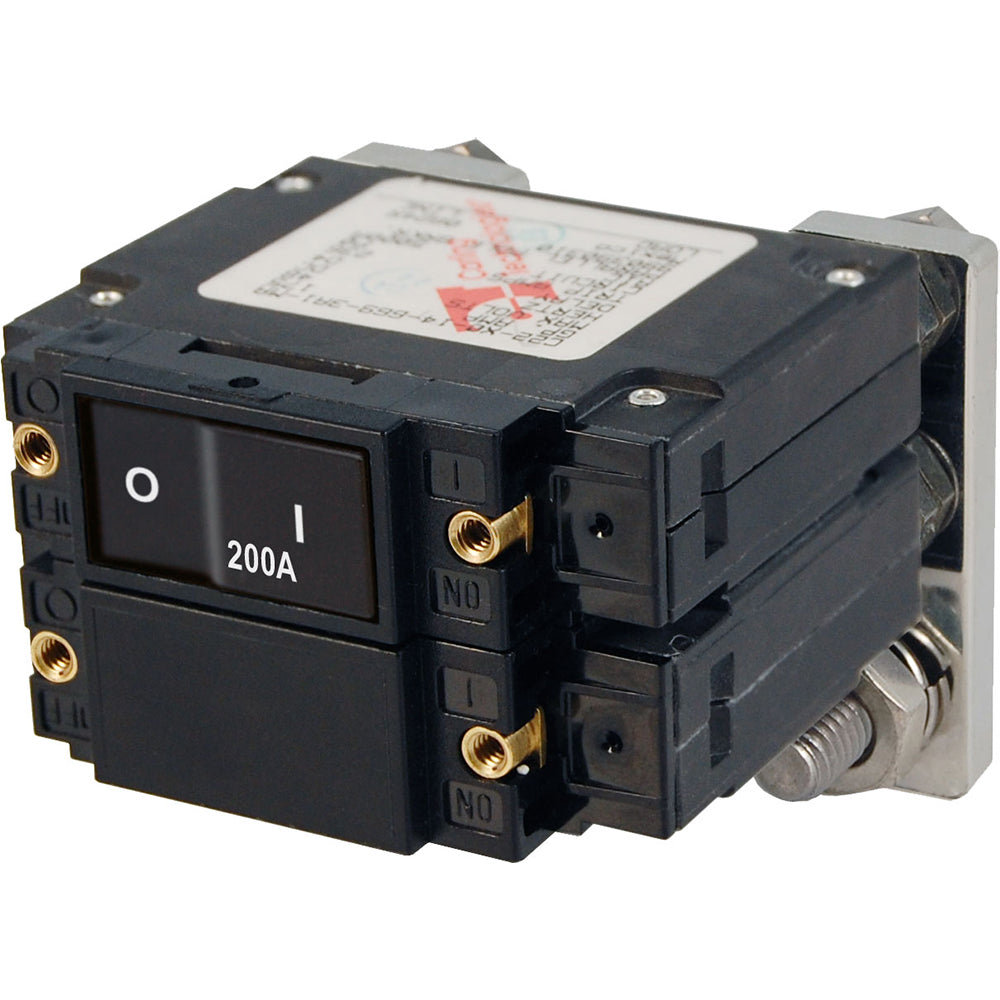

C - Series Flat Circuit Breaker, Single and Double Pole
PN: 7476
Amperage: 200 Amp
Features:
PN: 7476
Amperage: 200 Amp
Features:
- Color actuator indicates "OFF" position
- "Trip Free" design cannot be held "ON" during fault current condition
- Flat actuator protects against accidental switching
| Specifications | |
| Circuit Breaker Type | Magnetic Hydraulic - Trip Free |
| Maximum Voltage | 80 Volts DC |
| Rated Switch Cycles | 10,000@rated amperage and voltage |
WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
| Installation Guide | View (pdf) |
General Information
| Manufacturer | Blue Sea Systems |
|---|---|
| Manufacturer Part Number | 7476 |
| Product Type | Electrical | Circuit Breakers |
| UPC | 632085074760 |
