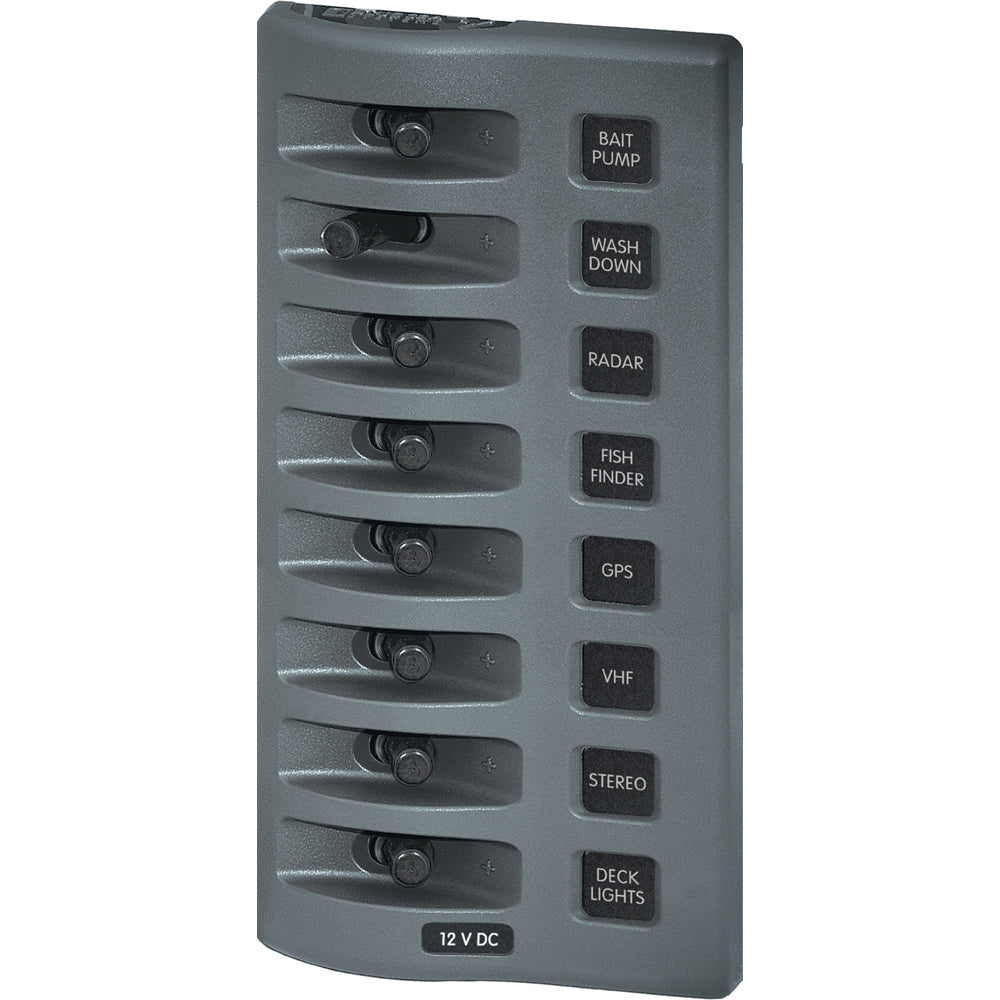

Name: Blue Sea 4309 WeatherDeck® 12V DC Waterproof Switch Panel - 8 Position
Brand: Blue Sea Systems
SKU: 51816-cwr
Price: 216.00 CAD
Availability: InStock

Blue Sea 4309 WeatherDeck® 12V DC Waterproof Switch Panel - 8 Position

Roll over image to zoom in Click on image to zoom

WeatherDeck® 12V DC Waterproof Switch Panel - 8 Position

Integrated switch guards reduce the risk of accidental switching
Panels can be mounted in four different orientations
Panel front rated IP67 when properly mounted with watertight mounting gasket
UV stabilized weather-resistant faceplate snaps on and off providing access to components and concealing mouting screws

Weatherproof: Waterproof
Positions: 8
Nominal Voltage: 12V DC/24V DC
Circuit Protection: None
Maximum Amperage: 15A @ 12V DC (per circuit)
Panel Cumulative Rating: 45A
Material: Reinforced Polycarbonate
Height: 7.70"(195.58 mm)
Width : 3.88"(98.55 mm)
Depth: 2.50"(63.5 mm)
Weight: 1.55lb (0.7 kg)
