Description

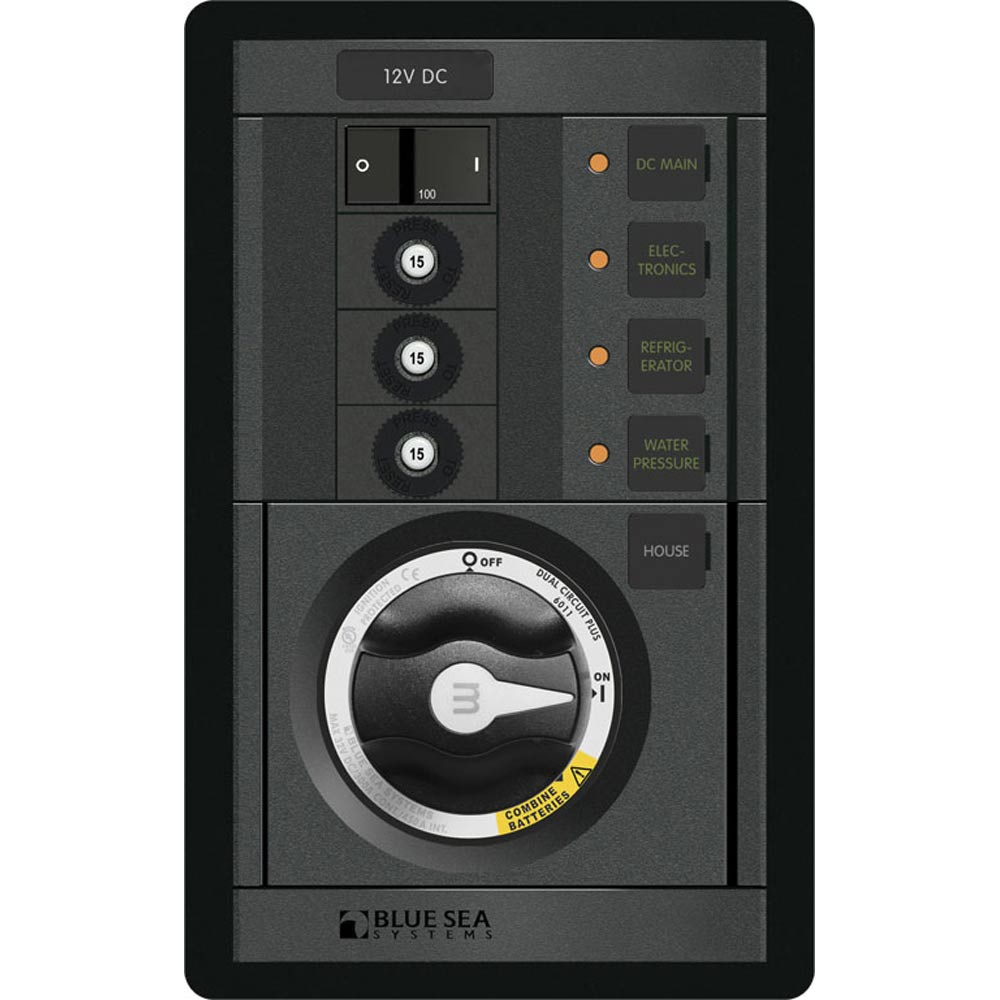

M-Series Dual Circuit Plus, Main + 3 Positions CLB Vertical
Features:
Specifications:
Features:
- Push Button Reset-Only Branch Circuit Breakers provide economical high-density circuit protection when switching is provided elsewhere - ideal for 24-hour circuit protection
- Provides DC Main circuit protection
- Backlit label positions
- "ON" indicating LEDs installed in all circuit positions
- 24-hour circuits
- Snap on end-plates conceal mounting screws
- Labels can be removed and replaced from the front of the panel
- Incorporates M-Series Dual Circuit Plus Battery Switch 6011200
- Includes 4218-Square Format Label Set
Specifications:
-
Positions:3
-
Nominal Voltage:12V DC
- Height:7.75" (196.85mm)
- Width: 4.88" (123.95mm)
- Depth:3.50" (88.9mm)
- Weight:2.42lb (1.1kg)
WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.Quick Guide View (pdf) Owners Manual View (pdf) Installation Guide View (pdf) - Width: 4.88" (123.95mm)
General Information
| Manufacturer | Blue Sea Systems |
|---|---|
| Manufacturer Part Number | 1408 |
| Product Type | Electrical | Battery Management,Electrical | Electrical Panels |
| UPC | 632085014087 |
