Description
11003
Features:
Features:
- Meets American Boat and Yacht Council (ABYC) requirements for battery switches
- Ignition protected safe for installation aboard gasoline powered boats

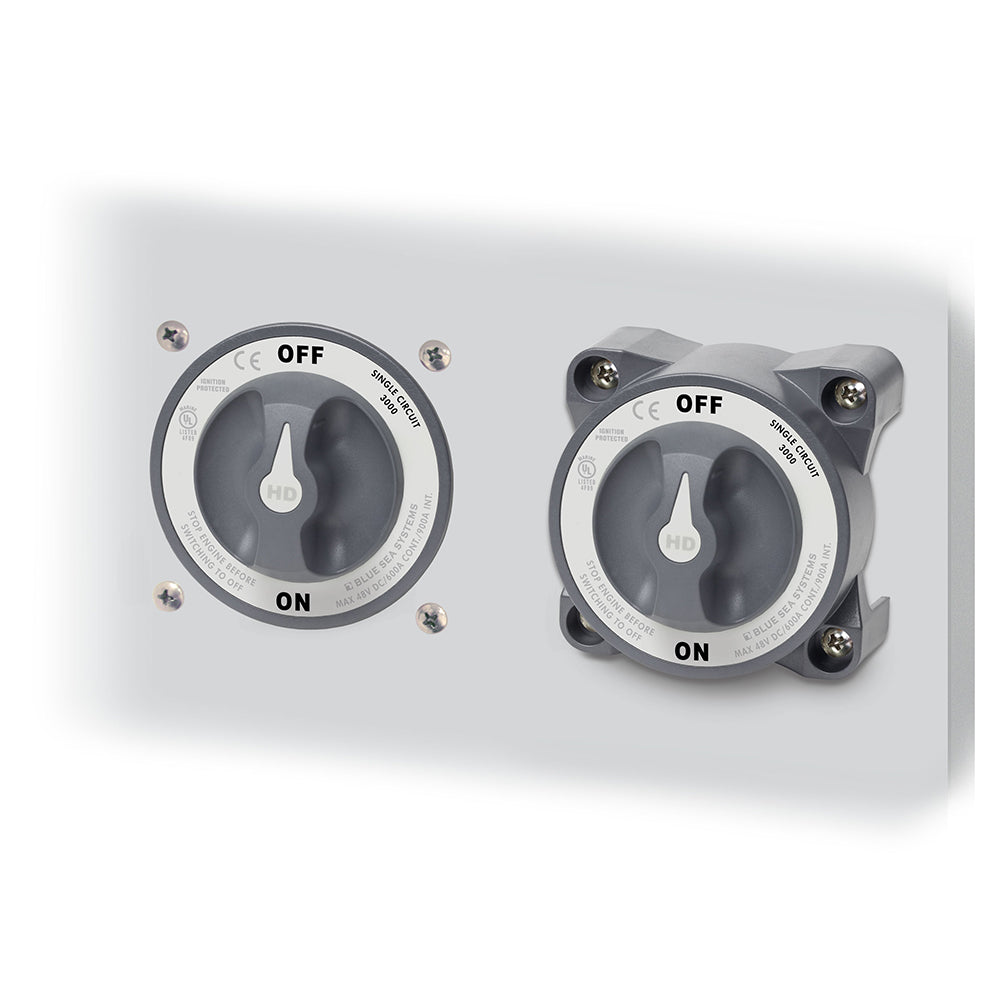

- Case design allows surface or rear panel mounting
- Accepts two 4/0 AWG (95mm) battery cables

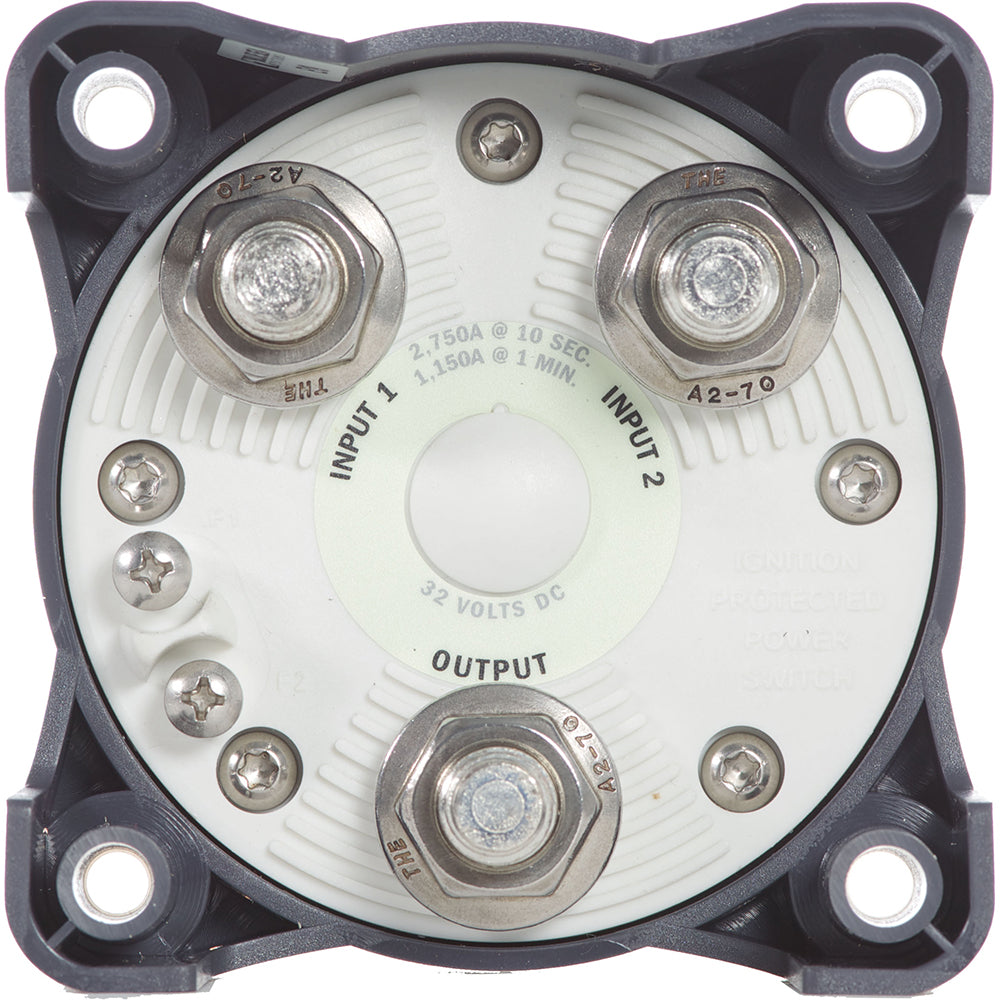

- M12 tin-plated copper studs for maximum conductivity and corrosion resistance, accepts 1/2" and M12 ring terminals
- 7/8" (22.22mm) stud length to accept multiple cable terminals

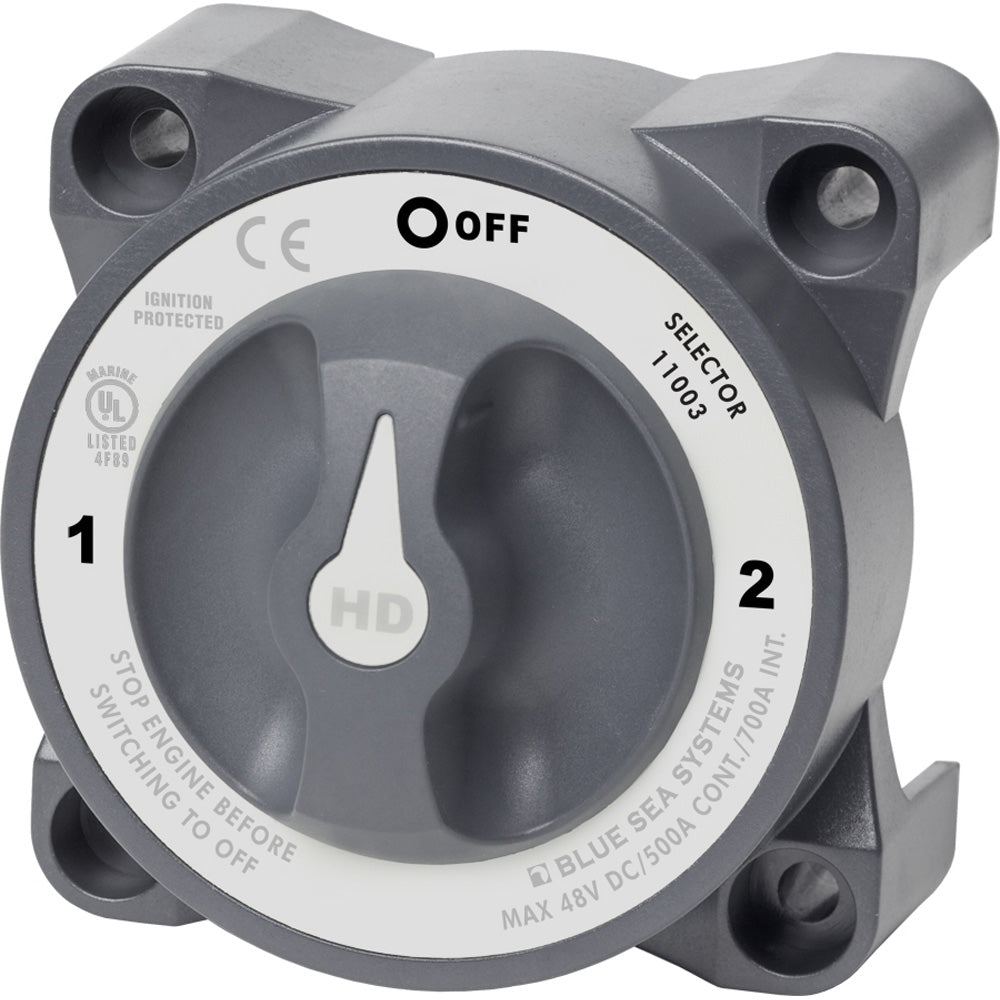

- Tactile textures indicate knob position by feel only
- Case design allows surface or rear panel mounting
- 10 Sec: 2750A
60 Sec: 1150A
5 Min: 700A
Continuous: 500A
Max Voltage: 32V DC
WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
| Brochure | View (pdf) |
General Information
| Manufacturer | Blue Sea Systems |
|---|---|
| Manufacturer Part Number | 11003 |
| Product Type | Electrical | Battery Management |
| UPC | 632085110031 |
