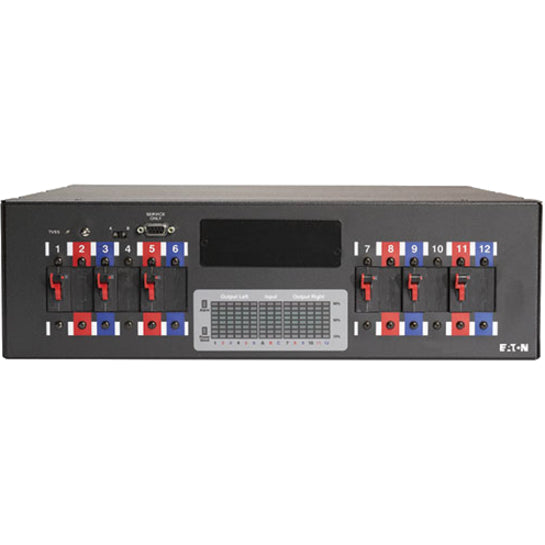

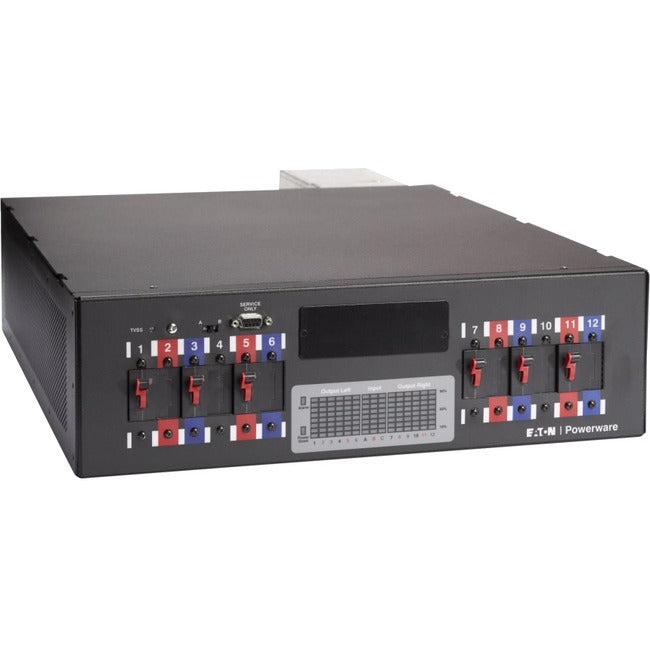

Providing up to 36 kW of power without the need for a dedicated infrastructure cabinet, the Eaton Rack Power Module (RPM) simplifies data center power distribution. Customizable receptacle plates, including locking receptacles, enable you to configure the RPM to fit your data center without calling a licensed electrician.
- Provides plug-and-play primary distribution of power from three-phase input source to secondary power distribution devices
- Serves data center loads with various voltages, power cord configurations and layouts
- Distributes three-phase power to 12 poles, grouped into two sets of six poles, with choice of output receptacle types
- "Power equalizer" LED display gives quick visual indication of each circuit's load, reducing possibility of overloads and breakers tripped off line
- Load information available from the front of the rack, no need to check individual power strips in the rear of the cabinet (hot isle)
- Branch circuit monitoring option allows easy load monitoring over the network

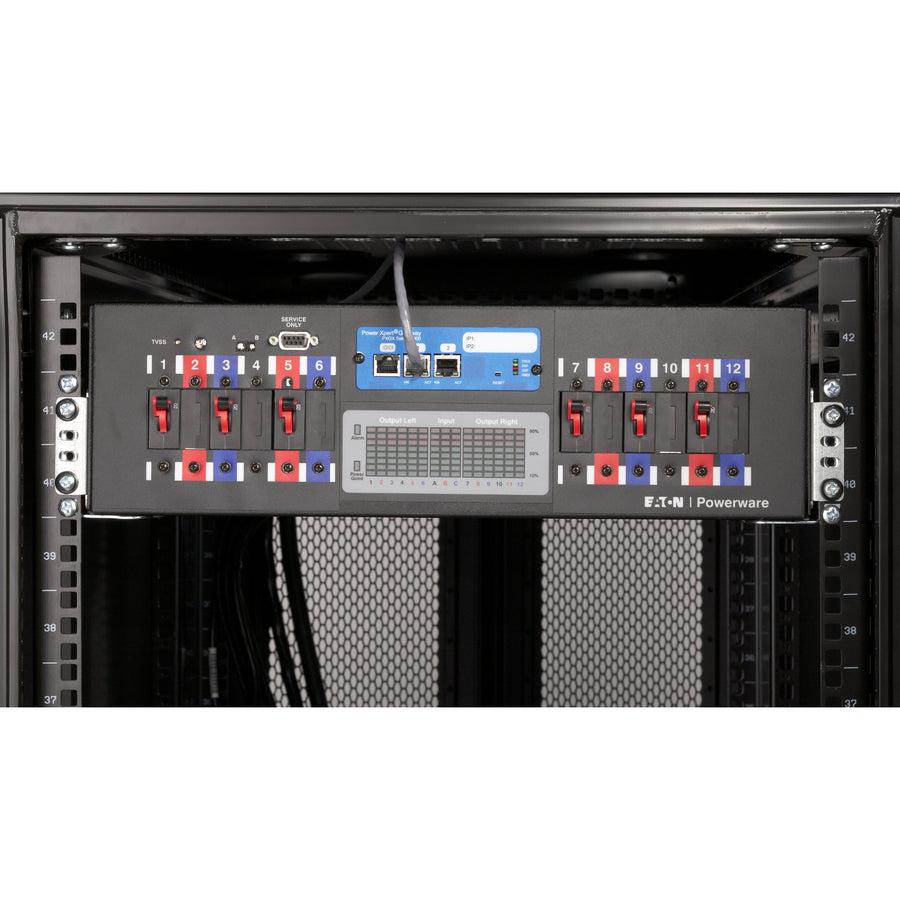

- Installs in only 3U of space in EIA 19" rack or enclosure (or wall-mounted)
- Enables customer installation and changes without the servicesof an electrician
Product Type: Power Module
Country Of Origin: Mexico
Brand Name: Eaton
Manufacturer: Eaton Corporation
Product Name: Rack Power Module
Manufacturer Part Number: Y03112025100000
Manufacturer Website Address: http://www.eaton.com
Packaged Quantity: 1
Weight (Approximate): 29.98 lb
