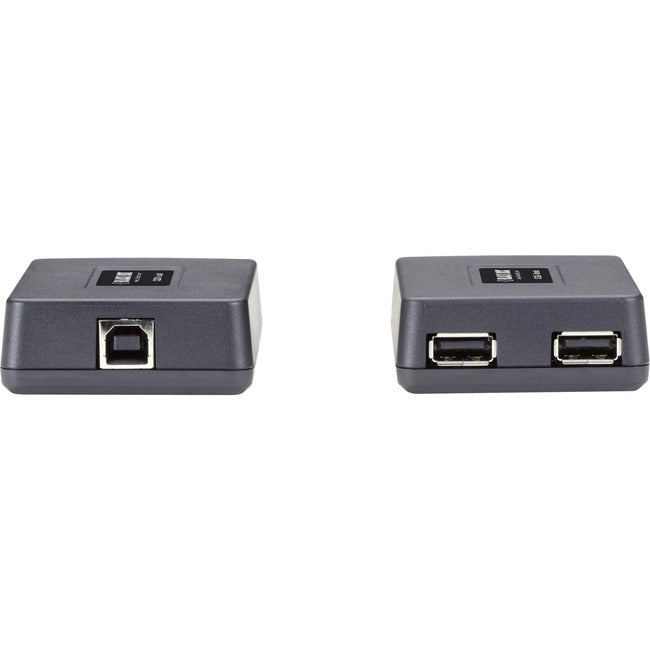

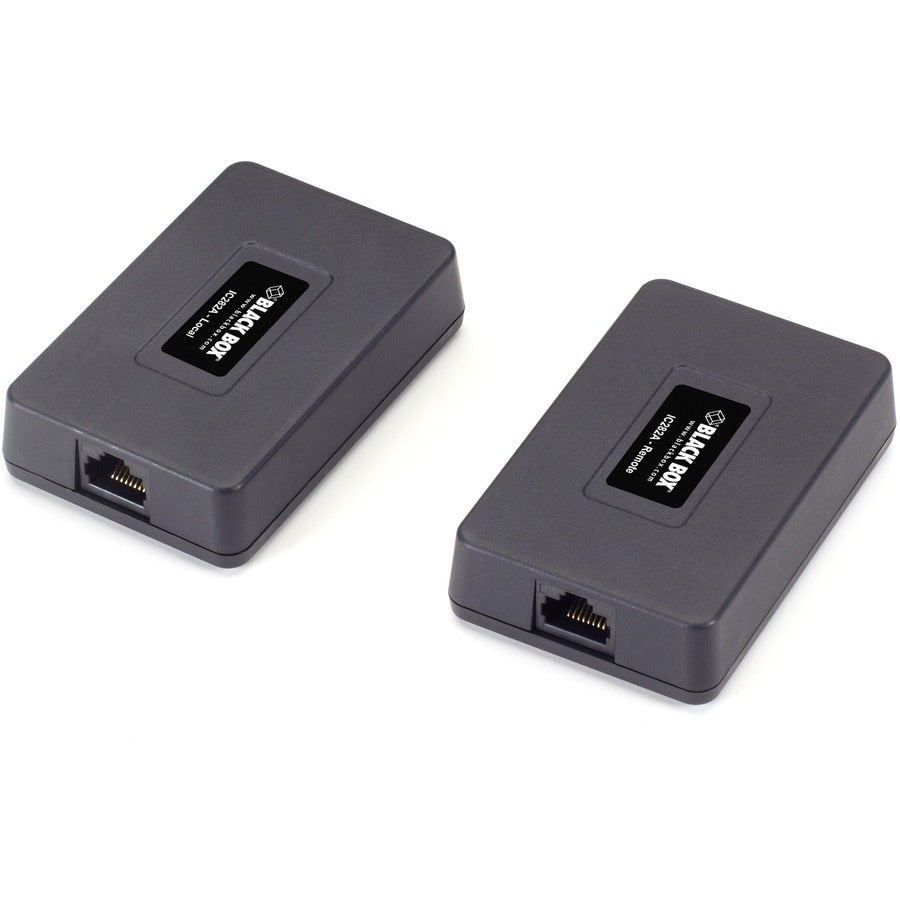

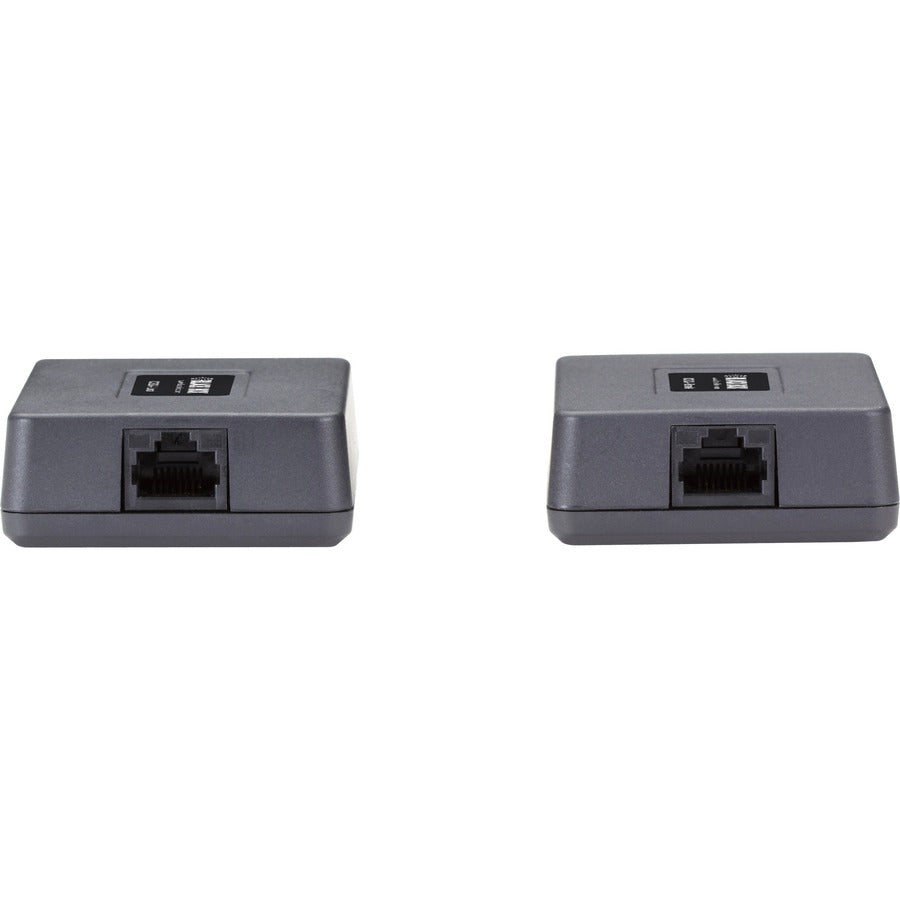

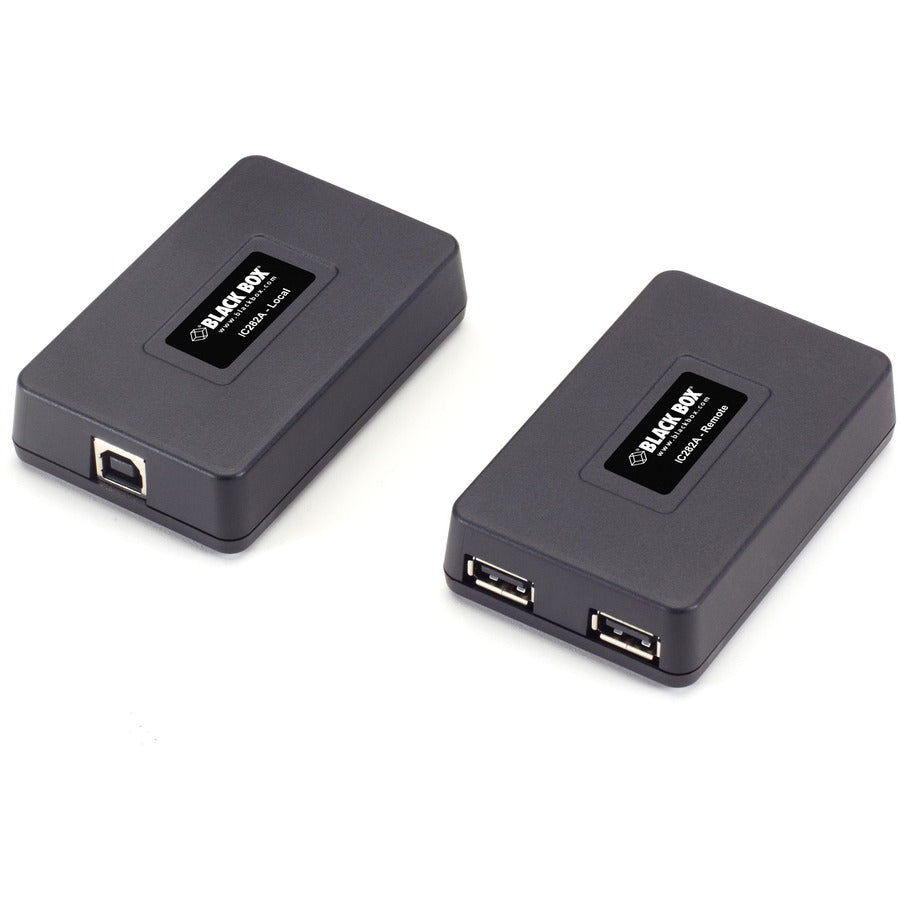

Black Box USB 1.1 Extender - CATx, 2-Port
Extend two USB 1.1 peripherals beyond the 16-ft (5-m) limitation up to 328 ft (100 m) over CATx. Extend a USB connection beyond the desktop to two USB peripherals such as USB keyboards, mice, printers, webcams, interactive whiteboards, and other devices. The extender can be used in in industrial control, factory floor, classroom, or meeting room applications The extender supplies up to 500 mA to the downstream USB device and offers reliable operation with USB 1.1 devices.
- Works with all major operating systems (Windows®, Mac OS X®, and Linux®).
- Industrial rated for ESD immunity.
- Supports both Full-Speed (12-Mbps) and Low-Speed (1.5-Mbps) throughput.
- Bus powered. No external AC adapter needed at either end.
- Reliably extend USB 1.1 signaling over CAT5 cable to remote USB devices.
Product Type: USB Extender
Environmentally Friendly: Yes
Environmental Certification: WEEE
Certifications & Standards: CE
Brand Name: Black Box
Manufacturer: Black Box Corporation
Product Name: USB 1.1 Extender - CATx, 2-Port
Manufacturer Part Number: IC282A
Manufacturer Website Address: http://www.blackbox.com
Limited Warranty: 1 Year
Additional Information:
- Connectors Transmitter: (1) USB Type B F; (1) RJ-45 (CAT5 interconnect); Receiver: (2) USB Type A F, (1) RJ-45 (CAT5 interconnect)
- Distance Full-Speed and Low-Speed: 130 ft. (40 m) maximum; Low-Speed: 278 ft. (85 m) maximum
- Power Transmitter: From the host device's USB interface; Receiver: From the transmitter; Available power: 400 mA shared between USB ports when transmitter is supplied with 800 mA of bus power
