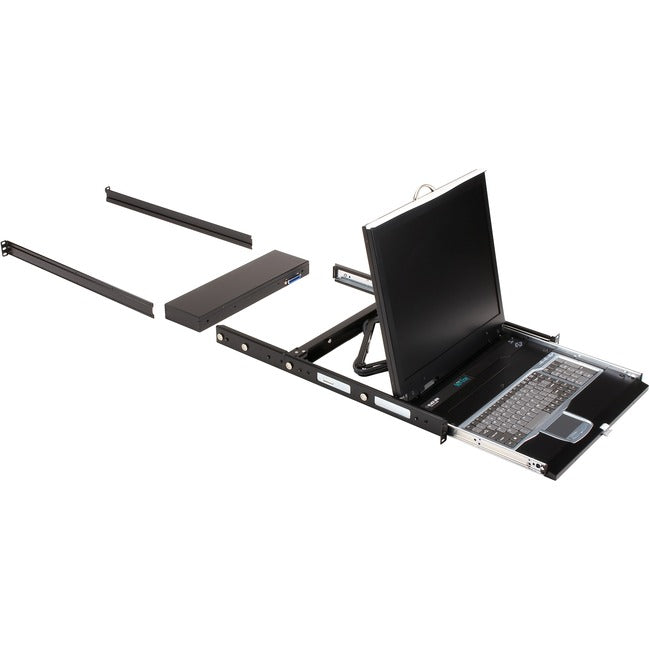

Black Box ServTray Complete, 19" , 8-Port KVM Switching Module, USB and PS/2
The ServTray Complete adds an integral KVM switch to its keyboard, monitor, and mouse, and packs it all into only 1U of rack space. It mounts on standard 19" rails in any standard server cabinets and enables you to manage VGA ports, PS/2 or USB servers, or a combination of the two. If you are looking for a way to make your server room even more functional without sacrificing valuable space, you've found it.
Save space, increase efficiency
Designed for heavy-duty use, the ServTray Complete can replace that bulky local workstation you've been using. Just slide out the drawer and open the flat-screen monitor.
The ServTray Complete features a full-sized 105-key keyboard - no trying to type on tiny keys too small for your fingertips. The touchpad mouse includes an ergonomic hand rest.
When you're done, simply slide it back in place. The front panel conceals the unit when not in use. Choose the size that's right for you.
This ServTray Complete model comes with a 19" screen and an 8 port KVM switch module.
Easy mounting
The ServTray Complete includes a universal rear rail kit, which mounts the ServTray on the front and rear rails with a depth of 23.7" to 45.3". That's rail depth, not total cabinet depth, so if you have extra deep cabinets, the ServTray will still fit as long as the rail depth is within limits.
Both ServTray and its switch module are powered through an autosensing 100- to 240-VAC power supply that plugs right into the nearest power strip or PDU.
- Kit does not include CPU Cables
- Autosensing 100- to a 240-VAC power supply
- 22.75" long Universal Rear Rail
- Pull-out tray with an attractive front panel to conceal the unit when not in use
- Supports video resolutions up to 1280x1024 at 60 Hz
- Support for VGA and DisplayPort Video, with either USB or PS/2 Keyboard & Mouse
- Built-in 8-Port VGA KVM Switch
- 1U 19" LCD Console Unit
Product Type: LCD Rack Console
Environmentally Friendly: Yes
Environmental Certification: RoHS
Country Of Origin: Taiwan
Brand Name: Black Box
Manufacturer: Black Box Corporation
Product Model: KVT419A
Product Name: ServTray Complete, 19" , 8-Port KVM Switching Module, USB and PS/2
Product Line: ServTray
Manufacturer Part Number: KVT419A-8UV-R2
Manufacturer Website Address: http://www.blackbox.com
Platform Supported: PC
Package Contents:
- ServTray Complete, 19" , 8-Port KVM Switching Module, USB and PS/2
- 1 x KVM module with power supply
- 1 x Universal Rear Rail Kit (includes 2 brackets, 2 extenders and 8 screws)
- 10 x 0.19-in. x 0.43-in. (0.5 x 1.1 cm) screws
- 10 x 0.12-in. x 0.24-in. (0.3 x 0.6 cm) screws
Limited Warranty: 1 Year
Weight (Approximate): 25 lb
