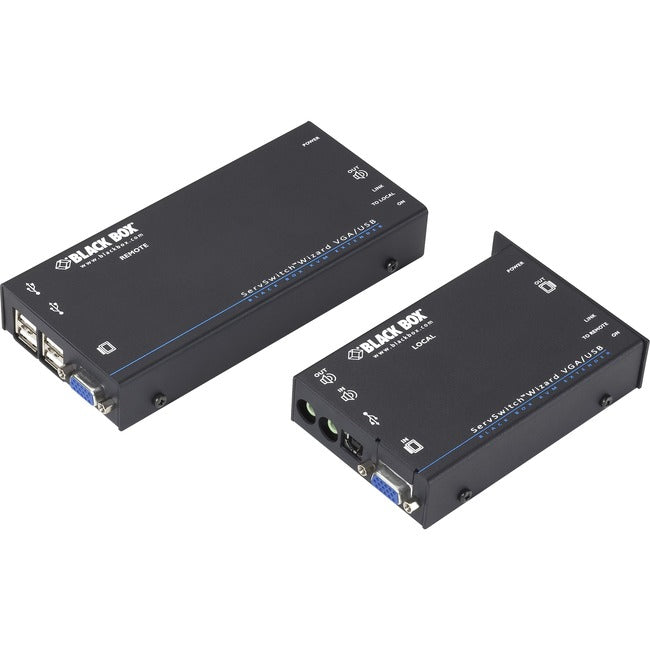

Black Box ServSwitch Wizard USB KVM Extender With Audio
The power of transparent USB
The ServSwitch Wizard™ USB SRX KVM Extender, single-video, from Black Box, combines VGA, USB 1.1 or USB 2.0, and audio, and sends them up to 164 feet across a single CATx cable. It's easy to fine-tune the video image on the remote unit and get crystal-clear stereo audio and transparent USB.
DDC EDID read and store support
Modern graphics adapter cards - even with analog output - require the presence of Display Data Channel (DDC) information. Without it, they output low-quality video or none at all. The ServSwitch Wizard USB SRX Extender reads the DDC information from the attached display and stores it in the local unit's non-volatile memory.
Small form factor
The ServSwitch Wizard USB SRX KVM Extender's compact chassis enables you to mount it side by side in the Rackmount Chassis for ServSwitch KVM Extender (ACU5000A). Use it to mount up to 16 single-video units in just 2U.
Local access

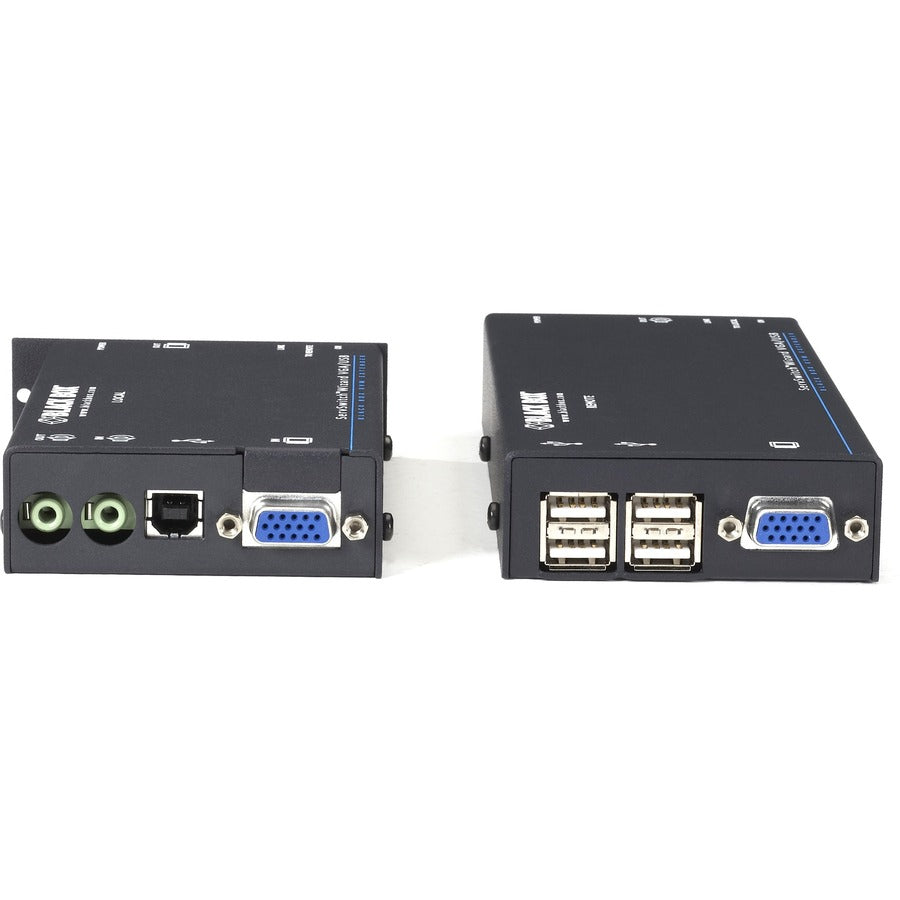

The local unit features audio and VGA feed-through, giving you local access just by plugging a keyboard and mouse directly into the spare PC USB ports.

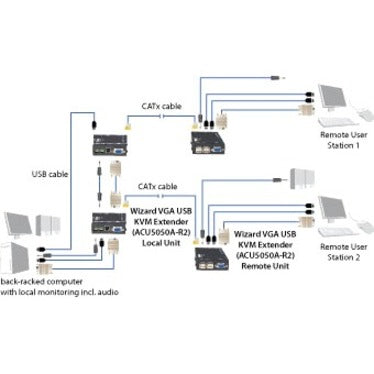

Dual-user configuration
With two single-video units, you can connect two workstations with keyboards, monitors, and mice to one CPU tower. Two users can use local connections to monitor and diagnose the CPU. This setup is ideal for a remote CPU that doesn't need to be monitored simultaneously by two users.
- Remote unit includes a built-in 4-port USB hub
- Rackmount multiple local and remote units in the optional chassis
- Automatic cut-out fuses protect against power surges
- Dual-video monitoring at the CPU
- Local VGA and stereo audio feedthrough
- Transparent USB 2.0 support
- Extended profile DDC EDID ensures optimal video with high-performance display devices
- VGA Video resolution 1600x1200
Product Type: KVM Console/Extender
Environmentally Friendly: Yes
Environmental Certification: RoHS
Transmitter Height: 1"
Transmitter Width: 2.90"
Transmitter Depth: 6.40"
Receiver Height: 1"
Receiver Width: 2.90"
Receiver Depth: 6.40"
Transmitter Weight (Approximate): 1 lb
Receiver Weight (Approximate): 1 lb
Country Of Origin: United Kingdom
Brand Name: Black Box
Form Factor: Desktop
Manufacturer: Black Box Corporation
Product Name: ServSwitch Wizard USB KVM Extender With Audio
Product Line: ServSwitch
Manufacturer Part Number: ACU5050A-R2
Manufacturer Website Address: http://www.blackbox.com
Package Contents:
- 1 x Transmitter
- 1 x Receiver
- 1 x VGA M/M cable (all pins) 1.8m (6 ft.)
- 1 x 3.5mm audio cable 3m (10 ft.)
- 1 x USB Type A B cable 1.8m (6 ft.)
- 2 x sets of rubber feet
- 1 x 5VDC, 2.5Amp external power supply
Limited Warranty: 2 Year
