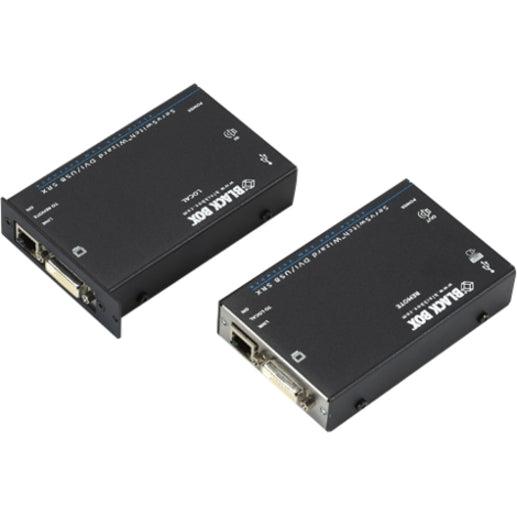

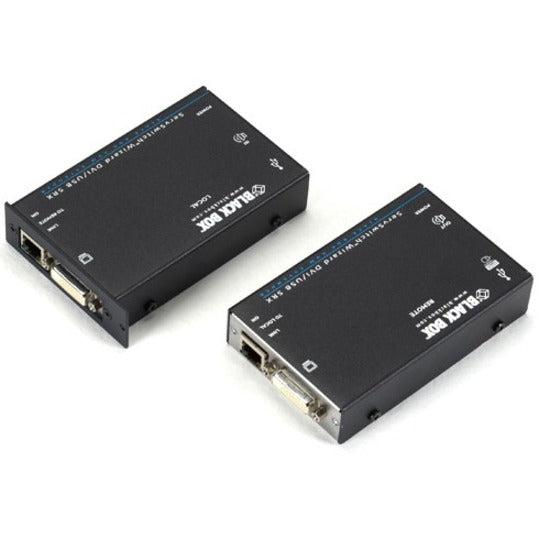

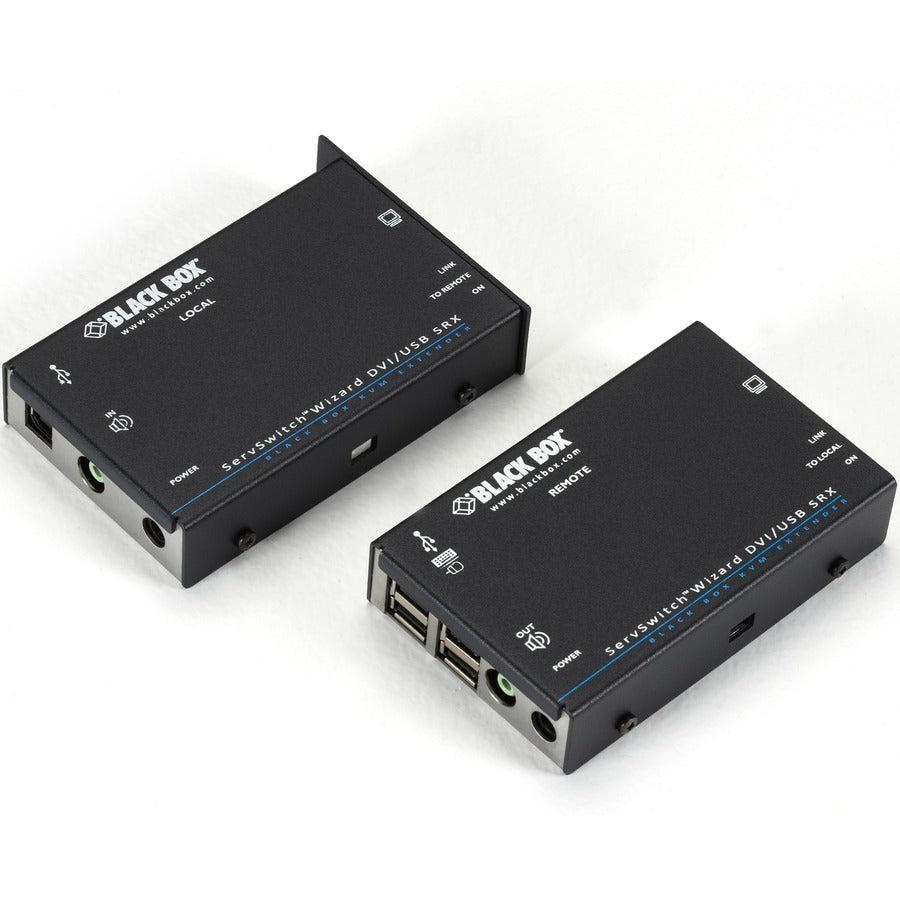

Black Box ServSwitch Wizard SRX DVI-D/USB Extender, Single-Head - 1 Computer(s) - 1 Remote User(s) - 196 ft Range - 3840 x 2400 Maximum Video Resolution - 2 x Network (RJ-45) - 3 x USB - 2 x DVI - 5 V DC, 110 V AC, 220 V AC Input Voltage - Rack-mountable, Desktop
Purely digital for pure video
Because the extender delivers full DVI digital video without compression or conversion, you get pure video displays with no loss of quality. The extender uses CAT7a cable to extend keyboard, mouse, and uncompressed single-link DVI-D video up to 196 feet (59.7 m) at full 1920 x 1200 at 60 Hz or 3840 x 2400 at 17 Hz resolution! It's ideal where you want to reduce environmental concerns, such as heat and noise, and ensure optimal temperature control.
Go the distance
You'll get different distances depending on what cable you use and if you make direct connections or patch panel connections.
Direct cable connections:
- CAT7a: 196 feet (59.7 m)
- CAT6: 180 feet (54.8 m)
- CAT5e: 147 feet (44.8 m)
Patch Panel Connections:
- CAT7a: 164 feet (50 m)
- CAT6: 147 feet (44.8 m)
- CAT5e: 114 feet (34.7 m)
USB keyboard and mouse support
The extender also delivers bi-directional USB d
