Black Box ServSwitch Wizard Dual-Link DVI with USB True Emulation
Share high-end video and any four USB peripherals between up to four workstations. This highly flexible KVM switch centralizes and simplifies high-end multi-head video switching access at a single user console with multiple DVI screens.
Plus with advanced support for multiple high-speed USB devices the ServSwitch DVI Wizard Dual-Link serves today's busy multitaskers quite well.
It's ideal for IT administrators and medical imaging graphic design and broadcast studio professionals who not only require quick reliable access to multiple computer CPUs and multiple video channels but also need simultaneous access to a mix of USB peripherals.

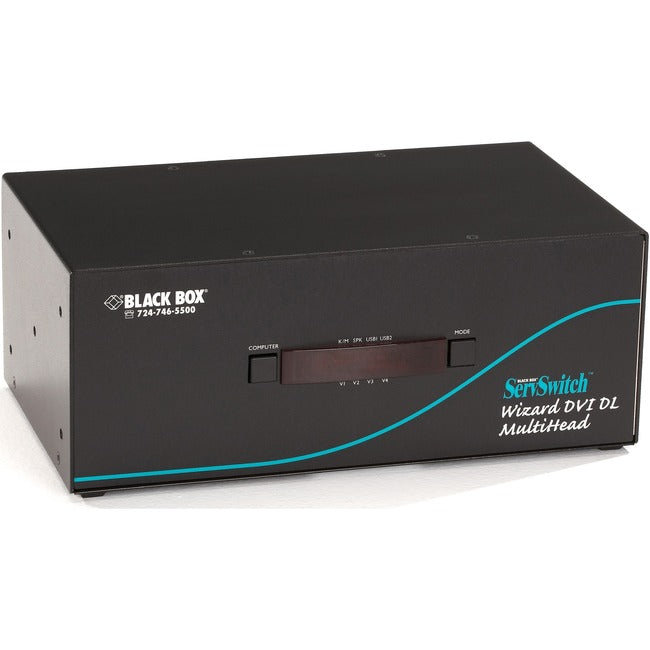

Select a channel on the ServSwitch Wizard DVI Dual-Link using hotkeys a three-button mouse or the switch's front-panel controls. When auto-scan is enabled the switch cycles between connected computers in sequence automatically. A seven-segment numeric display indicates the selected channel.
Multihead video channel access - simplified
The ServSwitch Wizard DVI Dual-Link enables a single KVM workstation user to control four separate computer systems or servers and flexibly share peripherals among them.
In addition to two DVI-I video KVM user console inputs for multiscreen workstations, the switch features dual DVI-I video connectors on each of its four computer channels. This way you have easy access to two video heads on each channel.
Each video head channel on this high-quality switch supports dual-link digital DVI video at up to 450 megapixels per second. Plus it supports high resolutions whether you need 2048 x 1080 video for post-production type of work or 2560 x 1600 (WQXGA) image clarity for very detailed medical or R and D lab imaging. Want to use VGA video instead of DVI? Simply add DVI-to-VGA adapters.
In addition to dual video connectors, each computer channel on the ServSwitch Wizard DVI Dual-Link has USB Type B and 3.5-mm audio jack inputs.
Multicomputer and multiperipheral access
This high-performance multimedia switching platform offers more than just straight switching between four multi-head computer systems. You can also use a KVM console to work on one computer while your favorite USB devices remain connected to other computers all easily accessible to you. And because the ServSwitch Wizard DVI Dual-Link supports audio connectivity you can connect speakers to yet another computer (audio can be switched independently from USB and video).

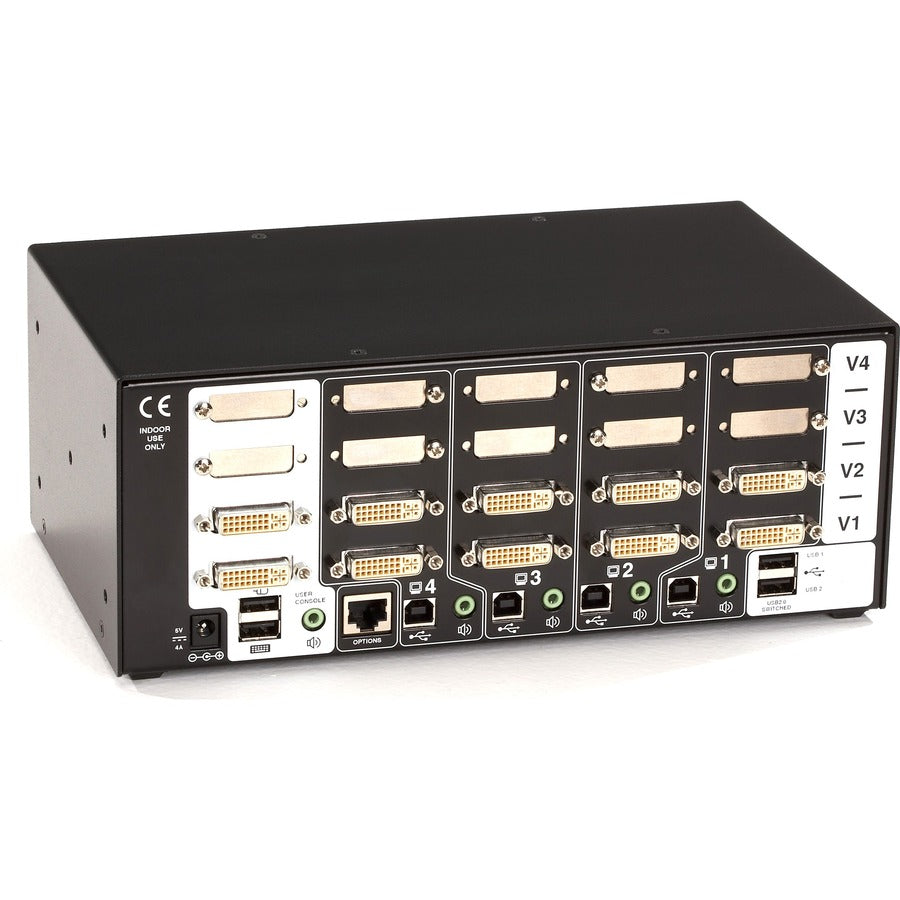

The ServSwitch Wizard DVI Dual-Link's rear panel has two USB Type-A ports as part of its KVM user console connections plus separate switched USB Type-A ports for additional USB 2.0 connectivity. You can reassign any of the connected USB peripherals to any of the connected computers quickly. The attached devices can either be switched in unison or you can mix peripherals between any of the systems.
The switch supports a wide range of USB devices especially high-speed USB 2.0 peripherals on its switched USB ports. Printers scanners and non-standard HID devices can all be attached. For instance, you can be creating e-mails on one system listening to the audio on a second one printing from a third computer, and scanning documents on another - all at the same time.
A switch featuring true USB emulation With advanced USB emulation technology the ServSwitch Wizard DVI Dual-Link switch supports instant reliable hotkey and mouse switching. Other KVM switches often use a more generic emulation relying on standard keyboard and mouse templates to provide peripheral info to connected computers. This results in support for only the most basic keyboard and mouse functions.
- Equipped with audio inputs on KVM and computer channels
- True emulation technology on switched USB 2.0 channels
- Supports video resolution up to 1920x1080 or boasts up to 2560x1600 (WQXGA)
- Control all functions from a console with two high-resolution DVI screens
- Each video head supports dual-link DVI video at up to 450 megapixels per second
- Switch DVI video, keyboard, and mouse streams to multiple CPUs
- Enables single user to control four computers fitted with dual-head
Product Type: KVM Switchbox
Environmentally Friendly: Yes
Environmental Certification: WEEE
Taa Compliant: Yes
Country Of Origin: United Kingdom
Rack Height: 2.5U
Brand Name: Black Box
Form Factor: Desktop
Manufacturer: Black Box Corporation
Product Name: ServSwitch Wizard Dual-Link DVI with USB True Emulation
Product Line: ServerSwitch
Manufacturer Part Number: KV2204A
Manufacturer Website Address: http://www.blackbox.com
Package Contents:
- ServSwitch Wizard Dual-Link DVI with USB True Emulation
- 1 x 5V Power Supply and US Power Cord
- 4 x Self-Adhesive Feet
- Quick Install Reference
Limited Warranty: 2 Year
Weight (Approximate): 3.10 lb
