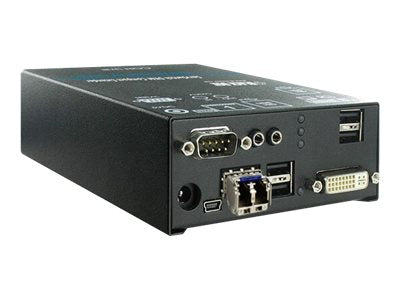

Black Box ServSwitch DKM Receiver, Fibre Single-Link DVI - Video/audio/USB/serial extender - receiver - up to 6.2 miles - for P/N: ACX0000, ACX048, ACX080, ACX0808, ACX0816, ACX0832, ACX160, ACX1616, ACX1632, ACX288
-
Excellent DVI-D video quality
Thanks to the digital transmission of the video signal without any loss in quality, images are as sharp as if they were directly attached to the workstations. The enhanced video compression algorithms support 24-bit color depth for smooth color gradients up to resolutions of 2048 x 1152 over the full distance. Even interlaced digital video such as 1080i is now supported.
-
RS232/V.24 and audio
The models with serial and audio transmit this data along with the video signals. With analog audio support you may transmit acoustic alarms from your server or music in CD quality. As it has bi-directional audio support, you may also attach a microphone to send audio back to your workstation. For even better sound choose digital audio models. The transparent RS232/V.24 transmission with up to 19.2K bps allows you to connect touch screens and graphic tablets, as well as other serial equipment, to your system.
-
USB HID
The DKM KVM extender comes with USB HID ports for keyboard and mouse or other standard HID compliant devices. True USB emulation allows you to attach a wide variety of feature rich USB keyboards and mouse with full support of their extended functions.
-
Transparent USB 2.0
The DKM KVM extenders are optionally available with transparent USB 2.0 transfer supporting 400/480 Mbps. Use these models to expand your system with USB 2.0 devices like scanners, hard disks, memory sticks, printers or others at the remote end of your system.
-
More video formats than ever
Besides the DVI-D channels, you may soon expand your system with a variety of extra video formats making these extenders ideal for broadcasting applications. The VGA video option is fully down and up scalable up to 1920 x 1200. Using the included remote control, scaling becomes easy at both ends of the extension. Modules for SDI and HDSDI, EGI as well as RGBHV will be available soon with the modular housing concept starting with a 4U 4-slot chassis or larger.
Fiber DVI-D KVM Extenders offer compact, reliable solutions for critical environments. Fiber DVI-D Compact KVM Extenders are designed in small space-efficient units enabling discreet placement in workspaces such as mounting under a desk. All connectors are positioned on the same side for straightforward installation making them perfect for various demanding environments. Well-suited for industrial financial educational air traffic control and other critical operations that require utmost reliability and security. Contact Black Box FREE Tech Support for configuration and assembly to fit your application.
- Excellent image quality in all resolutions

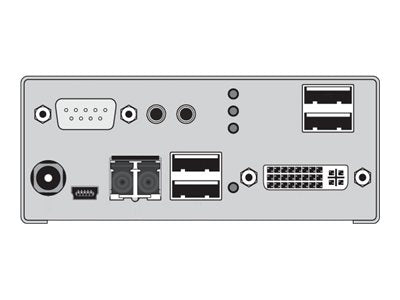

- All connections on one side for an easy installation
- Ideal for space-saving installation at operator desk
