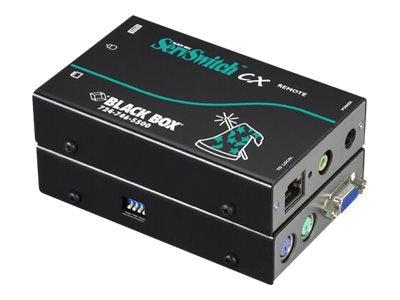

Black Box ServSwitch CX Remote Unit with Audio and Skew Compensation - KVM / audio extender
- Connect with CX KVM Matrix Switch or use in a Point to Point KVM Extension via the CX Server Access Modules up to 980 feet away
- Support for VGA video up to 1920x1200, PS/2 Keyboard and Mouse, and Analog Audio
- Supports RGB SKEW Compensation to adjust for the CATx twist ratios
User Station, Supports VGA, PS/2, and Analog Audio w/ built-in RGB SKEW Compensation. The CX User Station is part of the CX KVM Matrix technology and allows users to interface with the CX Switch and connected computers up to 980 feet away. Built in RGB SKEW Compensation is supported to adjust for the CATx twist ratio. The user station directly connects to a VGA monitor and a PS/2 keyboard and mouse where the user would normally sit. The user station can interface directly to a CX Matrix Switch or can be directly connected to a CX Server Access Module for Point to Point KVM Extension. The extender can support video resolutions up to 1920x1200 when used with CATx cable less than 150 feet however if used with longer CATx cable the video resolution will be smaller (i.e. 1280x1024 at 980 feet). This model also supports analog audio using a 3.5mm interface.
What's in the box:
- (1) Remote Unit
- (1) 5VDC 2.5A Power Supply
