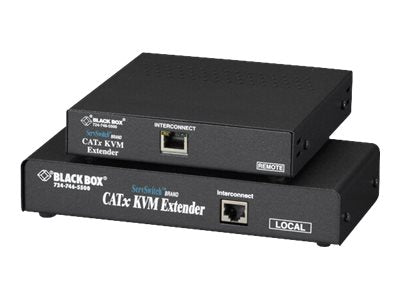

Black Box ServSwitch Brand CATx KVM Extender - KVM extender - up to 984 ft
- VGA Video resolutions are distance dependant: 1600 x 1280: 200M 1280 x 1024: 300 M
- PS/2 Peripherals
- CATx connections
- Up to 300 M. over CATx
Extend VGA, PS/2, up to 300 Meters over CATx cable. At a maximum distance of 984.2 feet (300 m) you get resolution up to 1280 x 1024. Get a maximum resolution of 1600 x 1200 at up to 656.1 feet (200 m). Video settings store in non-volatile memory. Flash-upgradable standalone remote unit. Keyboard/mouse emulation provides keep-alive functionality. All monitor skew compensation can be fine-tuned easily via keyboard hotkey commands- even at long distances and high resolutions. Dual-access kits are available. Models with serial and audio support are also available. Rackmount in our RMK19U-X3 19" Rackmount Kit. To convert your USB-style keyboard and mouse signals to PS/2(r) order the USB to PS/2 Converter (KVUSB). The extender comes in a kit that includes local and remote units which are connected with a single CAT5 or higher cable. All keyboard mouse and video signals are fully buffered to ensure consistent remote operation of your PC. Ultimate video at the remote end. No matter what CAT5 or higher cable you use you can expect clear high resolution at the remote end with these KVM extenders. That's because the CATx kits' remote units and individual standalone remote units feature a built-in skew compensator. Color drift- caused by the different twist ratios of the twisted pair cable- is eliminated. The skew compensator removes the unsightly color shadows by delaying some color signals so that all color signals arrive at the same time at the remote end. This skew compensation works with all colors transmitted. You can fine-tune the monitor image via simple keyboard hotkey commands to fix skew attenuation and losses. Use keyboard controls to equalize red green and blue to compensate for the differing pair lengths found in CAT5e and higher cables. Independent low-frequency (LF) and high-frequency (HF) equalization adjustment ensure optimum video tuning. The precise equalization enables resolution of 1280 x 1024 up to 984.2 feet (300 m) or 1600 x 1200 resolution up to 656.1 feet (200 m). Preset modes also help you find the right image balance quickly and Quick Skew features help make video tuning nearly automatic. ServSwitch Brand Single-Video CATx KVM Extenders save all video settings in non-volatile memory. Add standalone remote units to existing extender applications. Do you already have a ServSwitch Brand Extender at work for you? Want to add enhanced video capabilities? Just order a ServSwitch Brand CATx KVM Extender Remote Unit (ACUR001A). These standalone remote units feature easy-to-adjust skew compensation and are compatible with many of our ServSwitch Brand CAT5 Extenders. Plug in your connections and go. Setup is simple. Connect the local and remote units to each other and adjust your video compensation to your liking. The extenders are easy to operate and require no software. Because the extenders perform complete PS/2 keyboard and mouse emulation you can boot the PC without having a keyboard or mouse attached to it. What's more the extenders are compatible with Microsoft(r) IntelliMouse(r) and other wheel mice.
What's in the box:
- Local Unit
- Remote Unit
- Cable from CPU to Local Unit
- Video Input Cable
- 9-volt Power Supply and Power Cord
