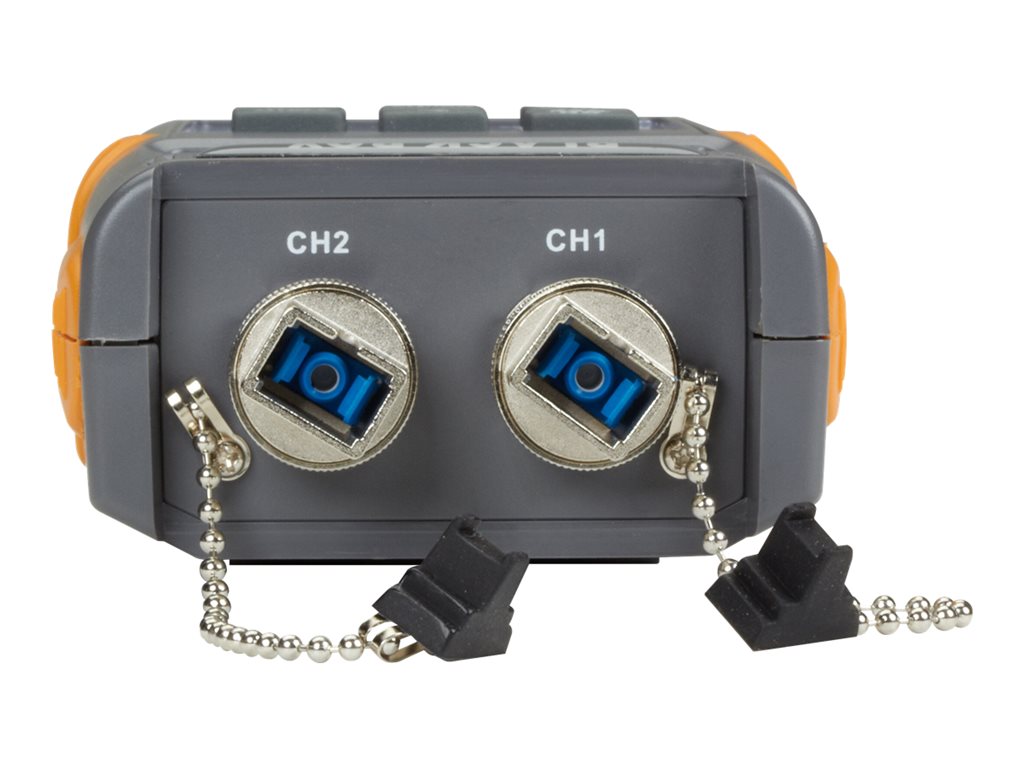

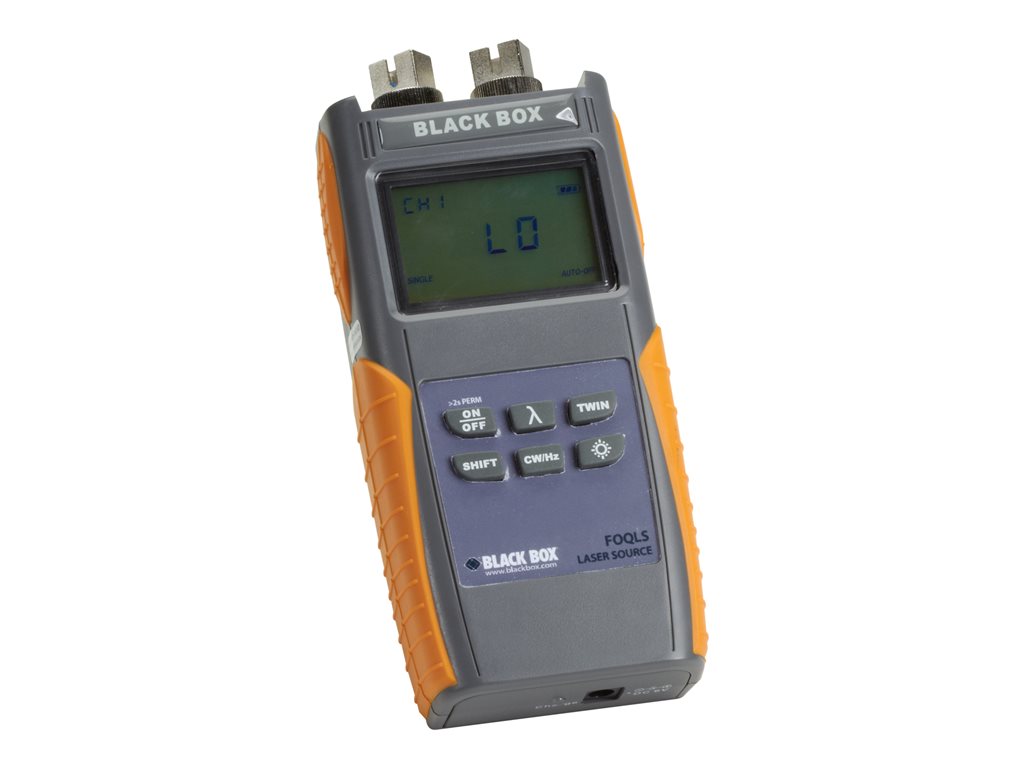

Black Box Quad Laser Source - Network tester
- Single output port provides stable laser power at dual wavelengths
- Operates in either continuous wave (CW) mode or modulated mode
- Output power is adjustable through up and down keystrokes
- Easy to use. Straightforward operation
Features stability and portability for accurate fiber testing. LCD backlight for easy use in darker environments. Includes rechargeable batteries. Has a low battery indicator.
-
The fiber optic power meter
The fiber optic power meter is calibrated at four wavelengths. It measures power levels as high as +20 dBm and as low as -60 dBm. It features a true resolution of 0.01 dBm at all power levels so you can trust measurements below -45 dBm. In relative measurement mode, the meter stores the zero reference reading for all four wavelengths independently in nonvolatile memory. This enables you to turn off the meter to save battery life as you move between testing locations. The meter also displays a 1-dB analog-type deviation pointer and an unaveraged mini display for real-time splice tuning. You can upload readings to a PC for printing and analysis.
-
LED source
The LED source supplies the temperature-stabilized light output the fiber optic power meter requires.
-
Power possibilities
The meter is powered with either four alkaline batteries or an AC wall pack containing four nickel-cadmium batteries. The nickel-cadmium batteries provide a full day's charge up to several hours. And if you're in a hurry to charge them, an emergency quick-charge mode enables you to charge in one hour. The LED source uses a 9-volt alkaline battery.
-
Stand up to field conditions
You don't have to baby these devices. Both feature internal circuitry housed in a high-strength aluminum-extrusion case with high-impact rubber bumpers. They shrug off being bumped or dropped, making this kit a sturdy companion for field use. The fiber optic power meter and LED source kit have a waterproof carrying case, which protects the devices from moisture - even if they're submerged in several feet of water.
What's in the box:
- FC/PC, SC/PC, ST/PC interchangeable connector
- Worldwide compatible AC/DC power adapter
- Batteries
- Carrying bag
- Test report
- User manual
