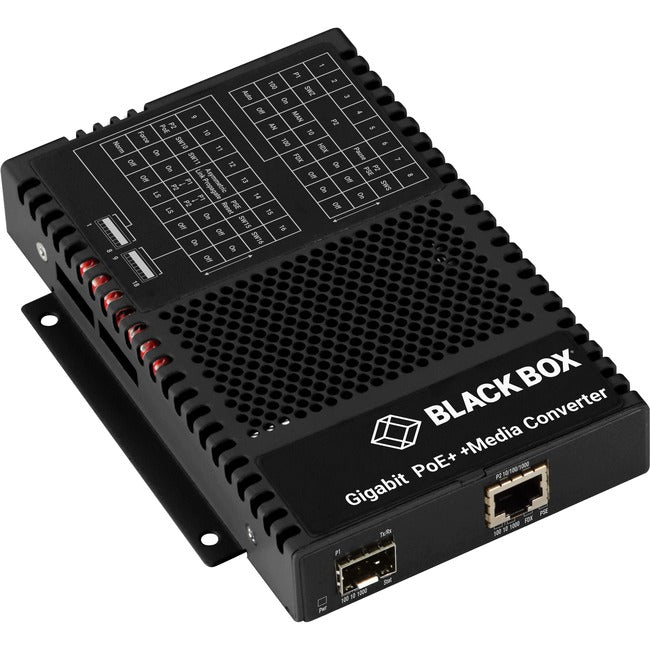

Black Box LGC5600 Transceiver/Media Converter
Convert 10/100/1000BASE-T to 1000BASE-X SFP with Ease
If you need to extend your copper network with fiber, look no further. PoE++ Media Converter easily converts 10/100/1000BASE-T to 1000BASE-X or 100BASE-X SFP.
Power-over-Ethernet Support
With full Power-over-Ethernet (PoE) support, this media converter can function as a PoE injector. It's classified as Power Sourcing Equipment (PSE) and can provide power to one or two powered devices (PDs) using standard UTP cables. The converter provides up to 60 watts of power per RJ-45 port, allowing it to power cameras, wireless access points, and more.
Configurable Features
Changeable features include link modes and a PoE power reset function that enables a PD device to be reinitialized remotely, eliminating the need for costly trips to PD sites.
Link modes can be configured to propagate loss-of-link faults to managed devices, immediately notifying administrators of network outages.
Works with a Variety of Fiber
PoE++ Media Converter supports fixed-fiber connectors and 100-Mbps or 1000-Mbps SFP transceiver receptacles. It also supports SFPs for multimode and single-mode dual fiber as well as single-mode single fiber in standard and CWDM wavelengths.
Plenty of Mounting Options
This compact standalone media converter can be tabletop mounted, wall-mounted, or DIN-rail mounted using an optional DIN-rail mounting kit. It can also be mounted on a 1U 19-inch rackmount shelf.
- 10/100/1000BASE-T copper to 1000BASE-X or 100BASE-X fiber media converter
- IEEE 802.3bt compliant, 60-W PoE++
- Backwards compatible with 802.3af and 802.3at
- Supports 100BASE-X or 1000BASE-X SFP transceivers
- Supports frame sizes up to 10,240 bytes
- Configurable PoE power reset
Product Type: Transceiver/Media Converter
Environmentally Friendly: Yes
Environmental Certification: REACH
Taa Compliant: Yes
Country Of Origin: United States
Brand Name: Black Box
Form Factor: DIN Rail Mountable
Manufacturer: Black Box Corporation
Product Name: LGC5600 Transceiver/Media Converter
Manufacturer Part Number: LGC5600A
Manufacturer Website Address: http://www.blackbox.com
Packaged Quantity: 1
Package Contents:
- LGC5600 Transceiver/Media Converter
- 1 x 100-240 VAC Power Adapter
Limited Warranty: 2 Year
Weight (Approximate): 1.10 lb
